Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE33545-24N Male Right Angle to N Female B |
159 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE33481LF-24SMA Male to N Female Bulkhead Ca |
159 |
|
Datasheet | - | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE33545LF-60N Male Right Angle to N Female B |
159 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE33481-6SMA Male to N Female Bulkhead Ca |
159 |
|
Datasheet | - | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000" (152.40mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE35296-12COAX CBL N-TYPE TO MHV |
157 |
|
Datasheet | - | Retail Package | Active | N-Type to MHV | N-Type Plug | Male | Free Hanging (In-Line) | - | MHV Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-393 | 50 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Tan | - | -55°C ~ 165°C | - | - |
|
|
PE3W01867LF/HS-48COAX CBL RP-TNC TO N-TYPE |
149 |
|
Datasheet | - | Retail Package | Active | RP-TNC to N-Type | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | RP-TNC Plug | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3W03271-50CMCOAX CBL 7/16 DIN TO N-TYPE |
149 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | - | - | - |
|

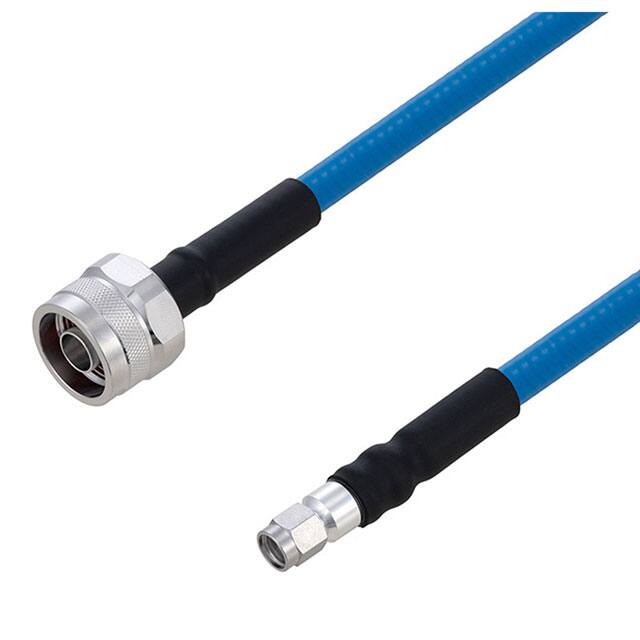

PE3C6213-200CMCOAX CBL SMA TO N-TYPE |
144 |
|
Datasheet | - | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE33692-72COAX CBL SMC TO SMC |
144 |
|
Datasheet | - | Retail Package | Active | SMC to SMC | SMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-196 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE33692LF-72COAX CBL SMC TO SMC |
144 |
|
Datasheet | - | Retail Package | Active | SMC to SMC | SMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-196A | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
