Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3W02022/HS-48COAX CBL SMA TO SMA |
139 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3W13308-36COAX CBL SMA TO N-TYPE |
139 |
|
Datasheet | - | Retail Package | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-188 | 50 Ohms | 50 Ohms | 50 Ohms | - | White | - | - | - | - |
|
|
PE3C0825/PH270-48COAX CBL SMA TO TNC |
139 |
|
Datasheet | - | Retail Package | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3C4404-24SSMC Plug to SSMC Plug Right Ang |
139 |
|
- |
- | Retail Package | Active | SSMC to SSMC | SSMC Plug | Male | Free Hanging (In-Line) | - | SSMC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3224LF-48COAX CBL 7/16 DIN TO SMA |
138 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to SMA | 7/16 Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | - | - | - | - |
|
|
PE34164-24COAX CBL BNC TO BNC |
133 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE34164-60COAX CBL BNC TO BNC |
133 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE34471LF-24SMB Plug Right Angle to SMB Jack |
132 |
|
Datasheet | - | Retail Package | Active | SMB to SMB | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-142B | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | - | - | - | - |
|
|
PE34471-60SMB Plug Right Angle to SMB Jack |
132 |
|
Datasheet | - | Retail Package | Active | SMB to SMB | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-142B | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | - | - | - | - |
|

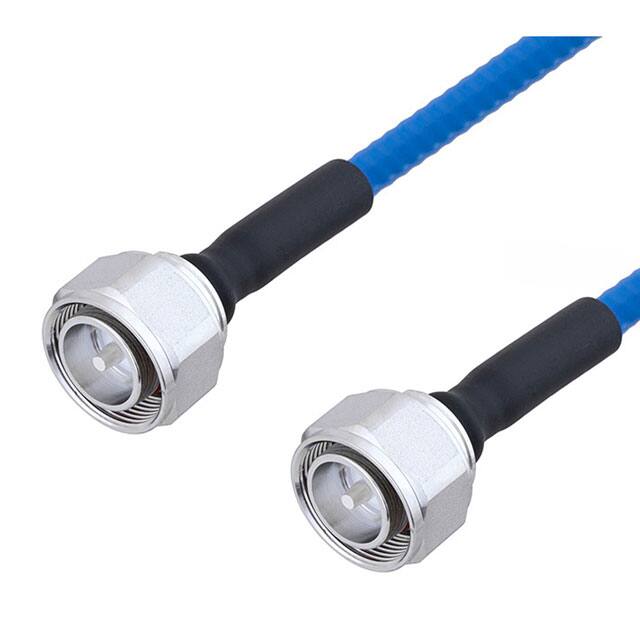

PE3C4142-50CMCOAX CBL 4.3/10 TO 4.3/10 |
124 |
|
Datasheet | - | Bag | Active | 4.3/10 to 4.3/10 | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Blue | - | -55°C ~ 200°C | - | - |
