Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE33352LF-36COAX CBL SMC TO SMC |
144 |
|
Datasheet | - | Retail Package | Active | SMC to SMC | SMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | - | - | - | - |
|
|
PE3C7417-48COAX CBL N-TYPE TO QN |
144 |
|
Datasheet | - | Retail Package | Active | N-Type to QN | N-Type Jack | Female | Free Hanging (In-Line) | - | QN Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3462LF-6COAX CBL BNC TO BNC |
143 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3149/PH270-24COAX CBL SMA TO SMA |
139 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3W10789-24Reverse Polarity SMA Jack to SMA |
139 |
|
Datasheet | - | Retail Package | Active | RP-SMA to SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3C4420-36SSMC Plug to SSMC Plug Right Ang |
139 |
|
- |
- | Retail Package | Active | SSMC to SSMC | SSMC Plug | Male | Free Hanging (In-Line) | - | SSMC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3216LF-36COAX CBL 7/16 DIN TO N-TYPE |
138 |
|
Datasheet | - | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | - | - | - | - |
|

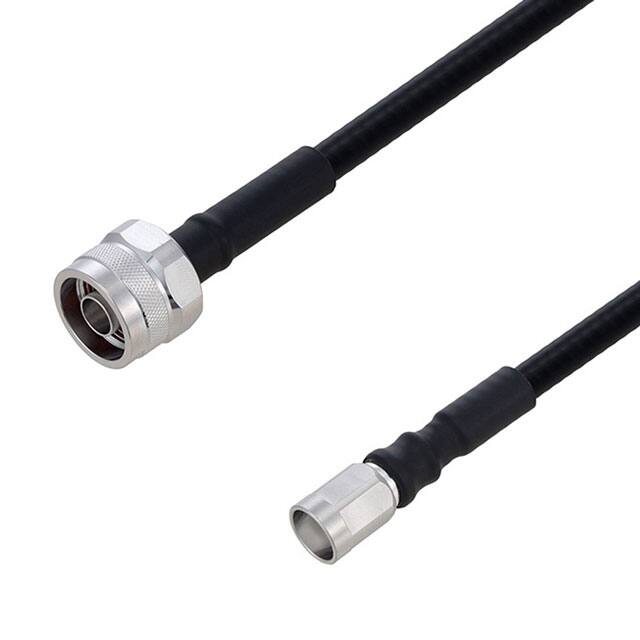

PE3C6347-200CMCOAX CBL N-TYPE TO NEX |
137 |
|
Datasheet | - | Bag | Active | N-Type to NEX | N-Type Plug | Male | Free Hanging (In-Line) | - | NEX10 Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
PE34469LF-36COAX CBL SMB TO SMB |
132 |
|
Datasheet | - | Retail Package | Active | SMB to SMB | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE34473LF-24COAX CBL SMB TO SMB |
132 |
|
Datasheet | - | Retail Package | Active | SMB to SMB | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
