Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

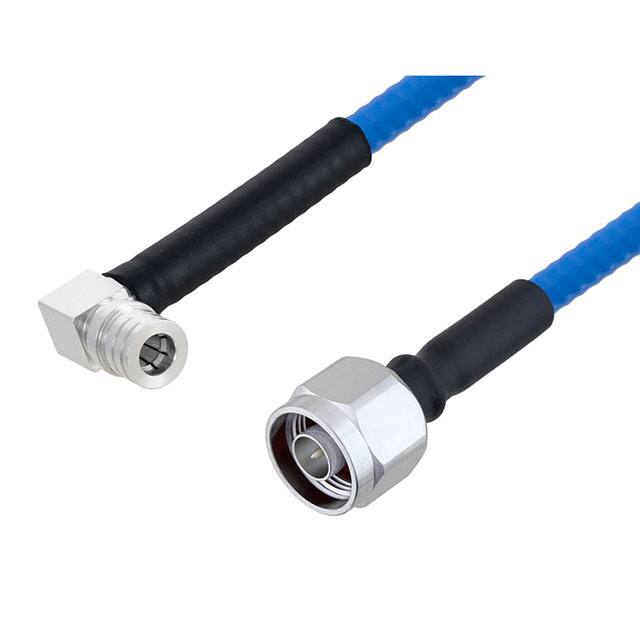

PE3C5874-48COAX CBL N-TYPE TO QMA |
4,978 |
|
Datasheet | - | Bag | Active | N-Type to QMA | N-Type Plug | Male | Free Hanging (In-Line) | - | QMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
PE3C4238-100CMCOAX CBL N-TYPE TO QMA |
1,057 |
|
Datasheet | - | Retail Package | Active | N-Type to QMA | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | QMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|

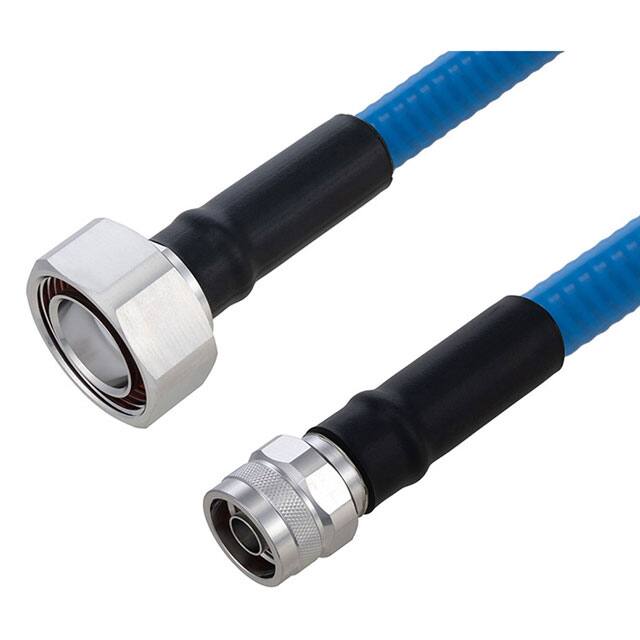

PE3C6369-48COAX CBL 7/16 DIN TO N-TYPE |
3,956 |
|
Datasheet | - | Bag | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE36528-72COAX CBL 10-32 TO 10-32 |
2,347 |
|
Datasheet | - | Retail Package | Active | 10-32 to 10-32 | 10-32 Plug | Male | Free Hanging (In-Line) | - | 10-32 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-178B | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3C1111LF-12COAX CBL SMA TO SMA |
2,864 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE36528-60COAX CBL 10-32 TO 10-32 |
2,282 |
|
Datasheet | - | Retail Package | Active | 10-32 to 10-32 | 10-32 Plug | Male | Free Hanging (In-Line) | - | 10-32 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-178B | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE36528LF-12COAX CBL 10-32 TO 10-32 |
1,817 |
|
Datasheet | - | Retail Package | Active | 10-32 to 10-32 | 10-32 Plug | Male | Free Hanging (In-Line) | - | 10-32 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178B | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3C6997LF-24COAX CBL 10-32 TO CABLE |
1,240 |
|
Datasheet | - | Retail Package | Active | 10-32 to Cable | 10-32 Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 24.00" (609.60mm) | RG-196 | 50 Ohms | 50 Ohms | 50 Ohms | - | White | - | - | - | - |
|
|
PE3W08374-60SMA Male to N Male Right Angle C |
2,766 |
|
Datasheet | - | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 5 GHz | Black | - | - | - | - |
|
|
PE3W09273-48COAX CBL SMA TO N-TYPE |
3,422 |
|
Datasheet | - | Retail Package | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
