Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3966LF-72N Male to N Female Bulkhead Cabl |
159 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-8 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE34216-12N Male Right Angle to N Female B |
159 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-8A | 52 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3966-72N Male to N Female Bulkhead Cabl |
159 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-8A | 52 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3W11428-150CMTNC Male to N Female Low Loss Ca |
159 |
|
- |
- | Retail Package | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3W09315-12N Female to TNC Male Low Loss Ca |
159 |
|
- |
- | Retail Package | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3371LF-12COAX CBL BNC TO BNC |
158 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3C0101-48COAX CBL N-TYPE TO N-TYPE |
157 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE33479-12COAX CBL N-TYPE TO N-TYPE |
155 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-11 | 75 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | - | - | - |
|
|
PE3C6355-24Fire Rated 4.3-10 Male Right Ang |
147 |
|
Datasheet | - | Retail Package | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | - |
|

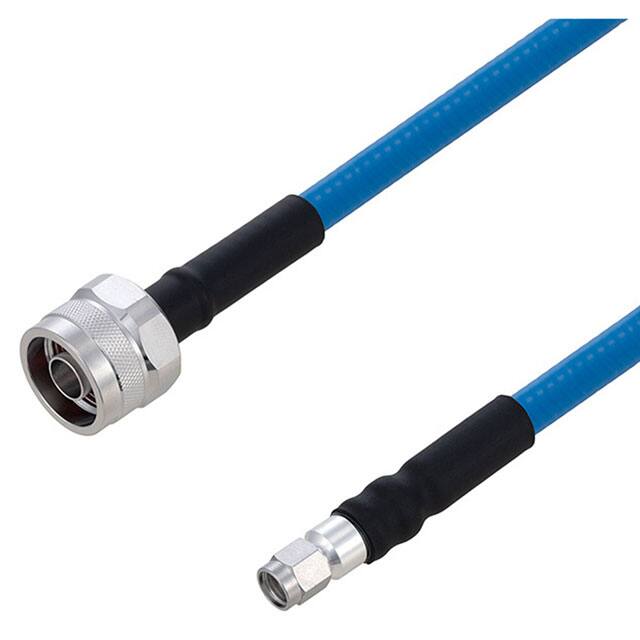

PE3C6213-36COAX CBL SMA TO N-TYPE |
144 |
|
Datasheet | - | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
