Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C2076/HS-200CMCOAX CBL BNC TO SMA |
686 |
|
Datasheet | - | Retail Package | Active | BNC to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
PE3C6371-36COAX CBL N-TYPE TO N-TYPE |
115 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
PE3CA1106-3COAX CBL SMA TO TEST POINT |
2,405 |
|
Datasheet | - | Retail Package | Active | SMA to Test Point | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.000" (76.20mm) | 0.047" Semi-Rigid Cable | - | 50 Ohms | 50 Ohms | 6 GHz | Silver | - | 125°C | - | - |
|
|
PE3C8742/VL-72COAX CBL BNC TO HD-BNC |
1,726 |
|
Datasheet | - | Tape & Box (TB) | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Violet | - | -30°C ~ 75°C | - | - |
|
|
PE3W03688LF-12COAX CBL SMA TO N-TYPE |
10,976 |
|
Datasheet | - | Tape & Box (TB) | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
|
PE3377-18COAX CBL SMA TO SMA |
10,689 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3067-144COAX CBL BNC TO BNC |
5,362 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
PE3W01539-72COAX CBL BNC TO MMCX |
1,774 |
|
Datasheet | - | Retail Package | Active | BNC to MMCX | BNC Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -40°C ~ 80°C | - | - |
|

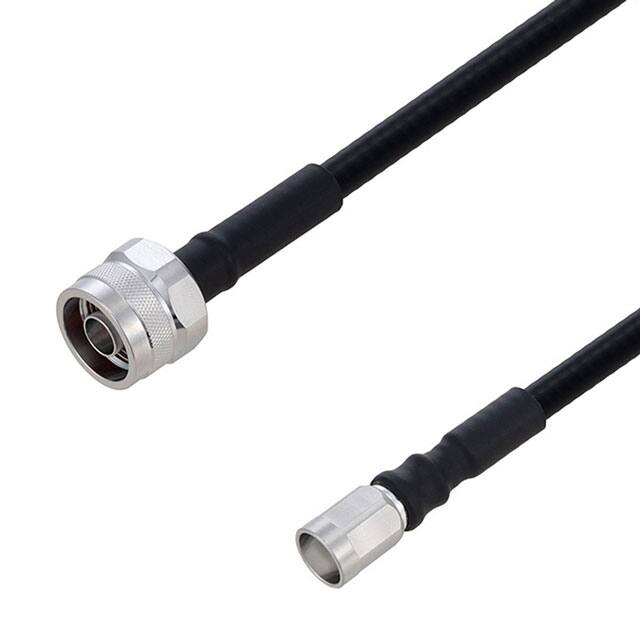

PE3C6347-36COAX CBL N-TYPE TO NEX |
275 |
|
Datasheet | - | Bag | Active | N-Type to NEX | N-Type Plug | Male | Free Hanging (In-Line) | - | NEX10 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
PE39455-18COAX CBL SMA TO N-TYPE |
3,726 |
|
Datasheet | - | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | - | - | - | - | - |
