Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C2886-48COAX CBL SMA TO SMA |
307 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Black | - | -65°C ~ 150°C | - | - |
|

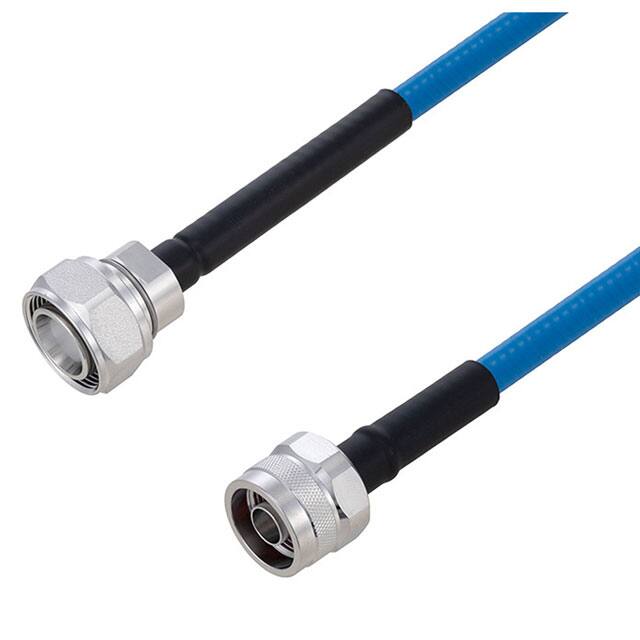

PE3C6221-100CMCOAX CBL 4.3/10 TO N-TYPE |
305 |
|
Datasheet | - | Bag | Active | 4.3/10 to N-Type | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE34464LF-36COAX CBL SMC TO SMC |
301 |
|
Datasheet | - | Retail Package | Active | SMC to SMC | SMC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-188 DS | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3W07301-24COAX CBL SMA TO N-TYPE |
299 |
|
Datasheet | - | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 200 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3W06027-24SMA Male to SMA Male Cable 24 In |
295 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Gray | - | -55°C ~ 125°C | - | - |
|
|
PE34801-48COAX CBL N-TYPE TO TNC |
281 |
|
Datasheet | - | Retail Package | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE34689LF-48COAX CBL SMB MINI-SMB MINI |
279 |
|
Datasheet | - | Retail Package | Active | SMB Mini to SMB Mini | SMB Mini Plug | Male | Free Hanging (In-Line) | - | SMB Mini Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | Tan | - | - | - | - |
|
|
PE34689-48COAX CBL SMB MINI-SMB MINI |
279 |
|
Datasheet | - | Retail Package | Active | SMB Mini to SMB Mini | SMB Mini Plug | Male | Free Hanging (In-Line) | - | SMB Mini Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | Tan | - | - | - | - |
|
|
PE3W01727-36COAX CBL SMB MINI TO MCX |
279 |
|
Datasheet | - | Retail Package | Active | SMB Mini to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | SMB Mini Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | 1 GHz | Tan | - | -55°C ~ 155°C | - | - |
|
|
PE3W01151LF/HS-100CMCOAX CBL N-TYPE TO QMA |
265 |
|
Datasheet | - | Retail Package | Active | N-Type to QMA | QMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
