Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3511-60COAX CBL SMA TO SMA |
1,575 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-188 | 50 Ohms | 50 Ohms | 50 Ohms | - | White | - | - | - | - |
|
|
PE3C2682-12COAX CBL N-TYPE TO N-TYPE |
4,661 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3824LF-48COAX CBL SMA TO SMA |
3,922 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-405 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|

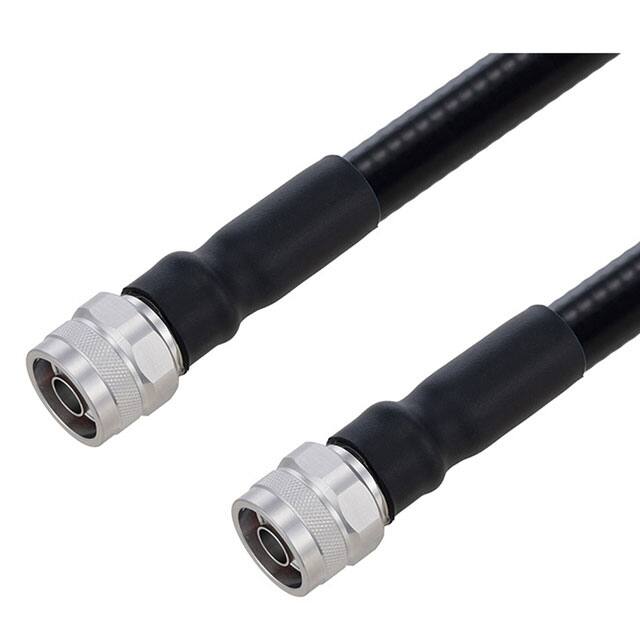

PE3C6371-200CMCOAX CBL N-TYPE TO N-TYPE |
1,490 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
PE3C6869-48COAX CBL N-TYPE TO N-TYPE |
4,900 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C5426-12COAX CBL N-TYPE TO N-TYPE |
3,029 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3C0120LF-24COAX CBL N-TYPE TO N-TYPE |
3,449 |
|
Datasheet | - | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C4627-6COAX CBL SMA TO SMP |
3,158 |
|
Datasheet | - | Retail Package | Active | SMA to SMP | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 10 GHz | Blue | - | - | - | - |
|
|
PE3C6797-60COAX CBL SMA TO F-TYPE |
4,629 |
|
Datasheet | - | Retail Package | Active | SMA to F-Type | SMA Plug | Male | Free Hanging (In-Line) | - | F-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0" (1.5m) 5.0' | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
PE3825-48COAX CBL SMA TO SMA |
3,293 |
|
Datasheet | - | Retail Package | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-402 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | - | - | - | - |
