Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

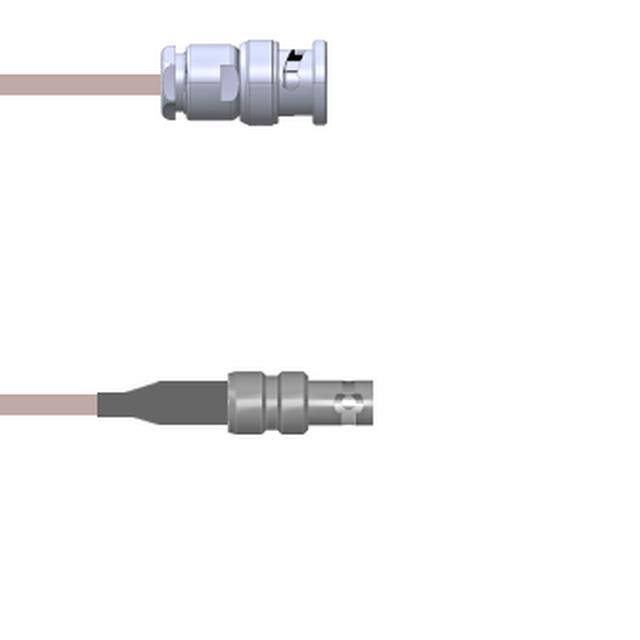

Q-0J00Q0005036iCOAX CBL BNC TO HD-BNC |
100 |
|
Datasheet | - | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

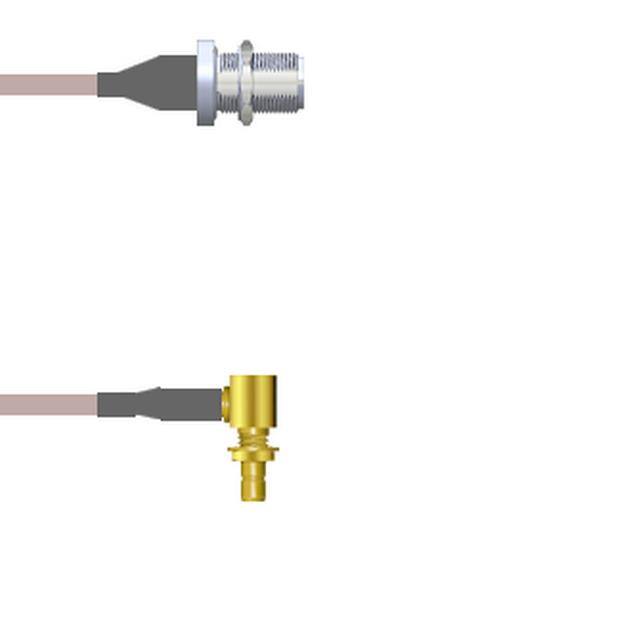

Q-1U03H0005072iCOAX CBL SMB TO N-TYPE |
100 |
|
Datasheet | - | Bag | Active | SMB to N-Type | SMB Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

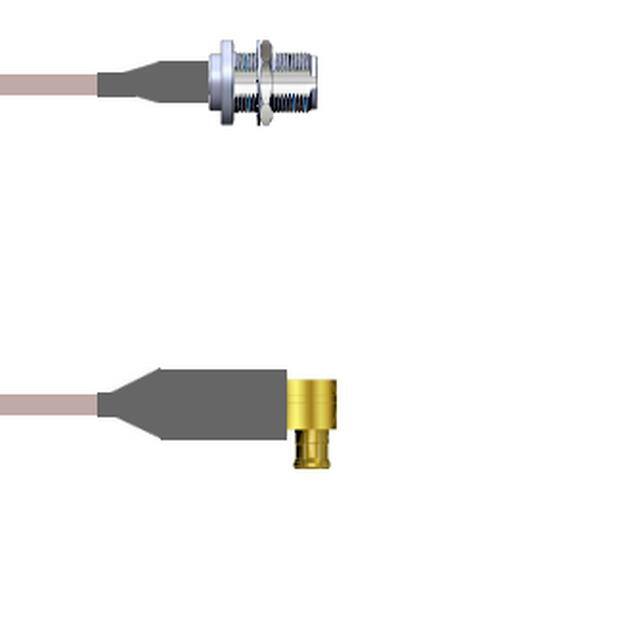

Q-25019000H060iCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet | - | Bag | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0" (1.5m) 5.0' | RG-142 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|

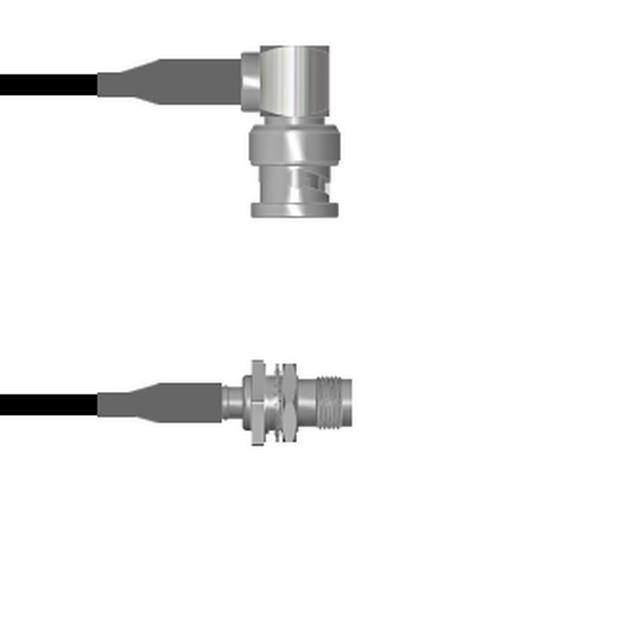

Q-0E04I0008084iCOAX CBL BNC TO TNC |
100 |
|
Datasheet | - | Bag | Active | BNC to TNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0" (2.1m) 7.0' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

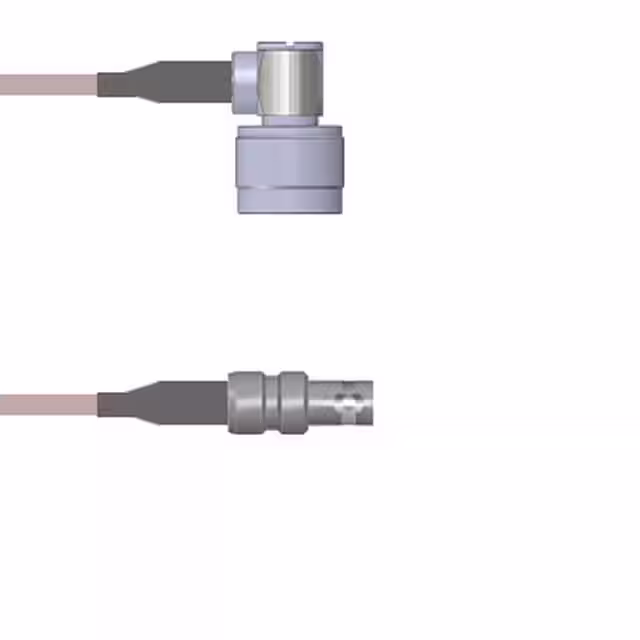

Q-2C00Q0005001MCOAX CBL HD-BNC TO N-TYPE |
100 |
|
Datasheet | - | Bag | Active | HD-BNC to N-Type | HD-BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|

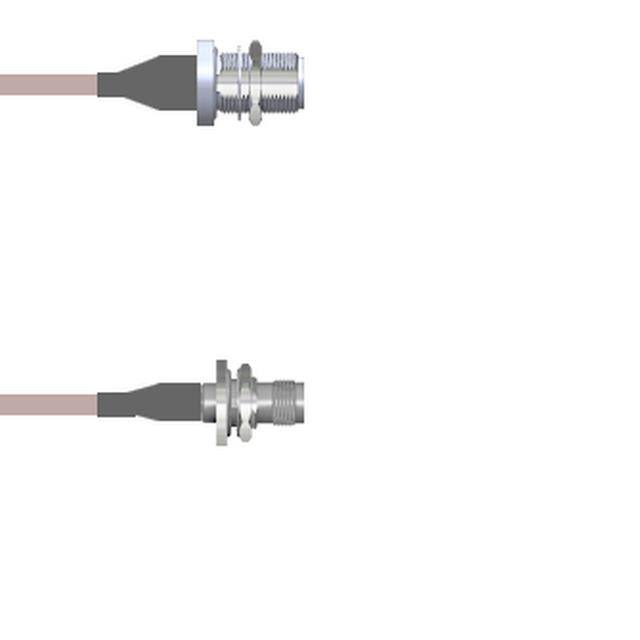

Q-2204H000R009iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet | - | Bag | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000" (228.60mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|
Q-1V021000R018iCOAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|

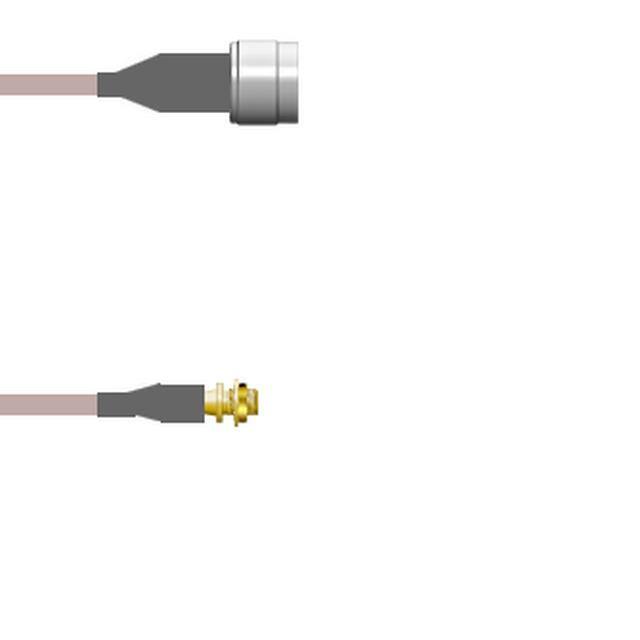

Q-2I01I0005072iCOAX CBL MMCX TO N-TYPE |
100 |
|
Datasheet | - | Bag | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
Q-290290013060iCOAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet | - | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 400 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
Q-1X01E00080.5MCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet | - | Bag | Active | MCX to N-Type | MCX Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69" (500.00mm) | RG-58 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
