Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBQ1-SARFGT-SARMGT-10INCOAX CBL RP-SMA TO RP-SMA |
200 |
|
Datasheet | - | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
CBD-2SARMGT-6INCOAX CBL RP-SMA TO RP-SMA |
200 |
|
Datasheet | - | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
CB1.37-IPXLK-SAF3OGTX15-12INCOAX CBL MHF1 TO SMA |
200 |
|
Datasheet | MHF® I LK | Bulk | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Locking | -40°C ~ 90°C | - | - |
|
|
CBG-IPXLK-SALF3GT-12INCOAX CBL MHF1 LK TO SMA |
200 |
|
Datasheet | MHF® I LK | Bulk | Active | I-PEX MHF1 LK to SMA | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | Locking | -40°C ~ 90°C | - | - |
|

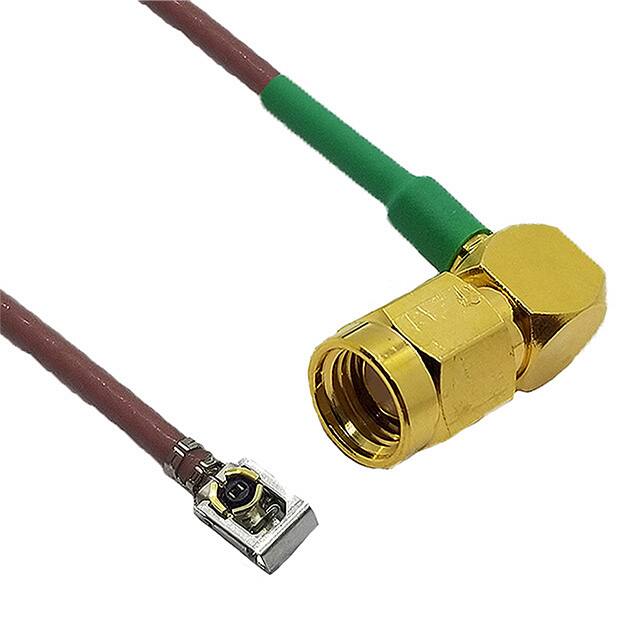

CBG-IPXLK-SALRMGT-10INCOAX CBL MHF1 LK TO RP-SMA |
200 |
|
Datasheet | MHF® I LK | Bulk | Active | I-PEX MHF1 LK to RP-SMA | RP-SMA Plug, Right Angle | Female | Free Hanging (In-Line) | - | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | Locking | -40°C ~ 90°C | - | - |
|
|
CBG-IPXLK-SALRF3GT-12INCOAX CBL MHF1 LK TO RP-SMA |
200 |
|
Datasheet | MHF® I LK | Bulk | Active | I-PEX MHF1 LK to RP-SMA | RP-SMA Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | Locking | -40°C ~ 90°C | - | - |
|
|
CB1.37-IPX4LLK-SALMGT-12INCOAX CBL MHF4L LK TO SMA |
200 |
|
Datasheet | MHF® 4L LK | Bulk | Active | I-PEX MHF4L LK to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Locking | -40°C ~ 90°C | - | - |
|
|
CBG-IPXLK-SALMGT-12INCOAX CBL MHF1 LK TO SMA |
200 |
|
Datasheet | MHF® I LK | Bulk | Active | I-PEX MHF1 LK to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | Locking | -40°C ~ 90°C | - | - |
|
|
CBG-IPXLK-SARF3OGTX9-12INCOAX CBL MHF1 LK TO RP-SMA |
200 |
|
Datasheet | MHF® I LK | Bulk | Active | I-PEX MHF1 LK to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | Locking | -40°C ~ 90°C | - | - |
|
|
CB1.37-IPX4LLK-SAF3OGTX15-12INCOAX CBL MHF4L LK TO SMA |
200 |
|
Datasheet | MHF® 4L LK | Bulk | Active | I-PEX MHF4L LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Locking | -40°C ~ 90°C | - | - |
