Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
415-0075-036COAX CBL SMA TO SMA |
2,142 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | White | Shielded | - | - | - |
|
415-0082-MM250COAX CBL SMA TO SMA |
4,725 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | Hand Formable .141 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|
415-0081-MM250COAX CBL SMA TO SMA |
1,238 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | Hand Formable .086 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|

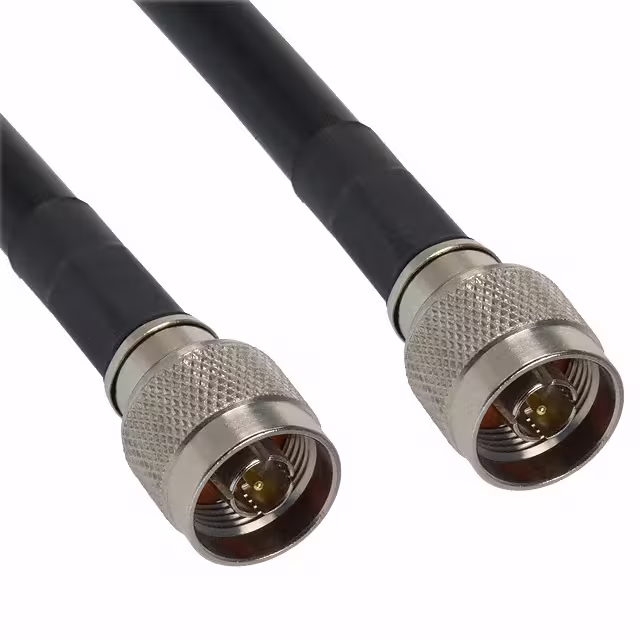

415-0062-060COAX CBL N-TYPE TO N-TYPE |
4,764 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-8 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
|
415-0062-048COAX CBL N-TYPE TO N-TYPE |
4,388 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-8 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
415-0044-048COAX CBL SMA TO SMA |
3,914 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
415-0046-048COAX CBL SMA TO SMA |
1,557 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | White | Shielded | - | - | - |
|

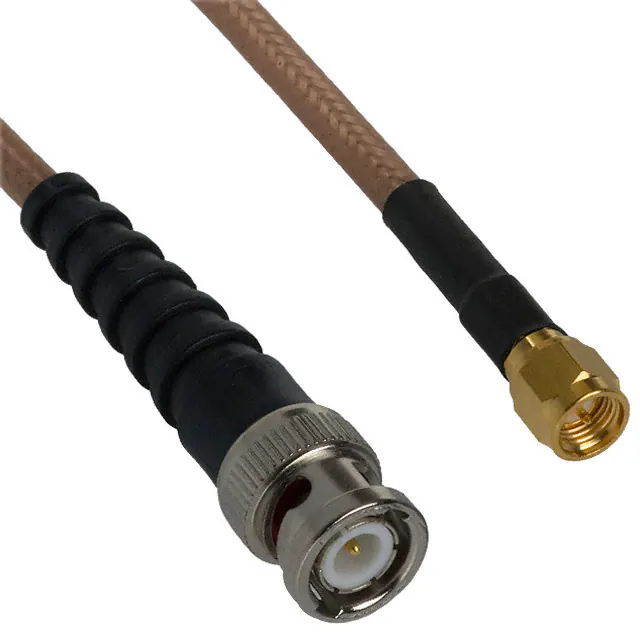

415-0042-060COAX CBL BNC TO SMA |
4,381 |
|
Datasheet | - | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
|
415-0081-MM175COAX CBL SMA TO SMA |
2,534 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.890" (175.00mm) | Hand Formable .086 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|
415-0060-060COAX CBL N-TYPE TO N-TYPE |
3,640 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
