Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

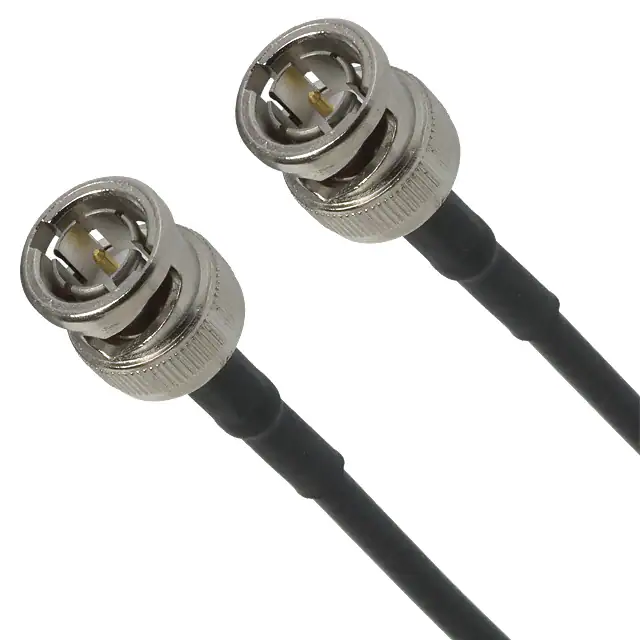

415-0047-048COAX CBL BNC TO BNC |
4,382 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | Belden 8218 | 75 Ohms | 75 Ohms | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
415-0007-012COAX CBL SMB TO SMB |
4,438 |
|
Datasheet | - | Bulk | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | - | - | - |
|
415-0043-MM250COAX CBL SMA TO SMA |
1,692 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
415-0063-024COAX CBL N-TYPE TO N-TYPE |
1,703 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
415-0006-024COAX CBL SMB TO SMB |
2,819 |
|
Datasheet | - | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
415-0047-060COAX CBL BNC TO BNC |
1,506 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | Belden 8218 | 75 Ohms | 75 Ohms | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
415-0011-030COAX CBL SMB MINI-SMB MINI |
3,204 |
|
Datasheet | - | Bulk | Active | SMB Mini to SMB Mini | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | 30.00" (762.00mm) | RG-179 DS | 75 Ohms | 75 Ohms | 75 Ohms | 2 GHz | White | Shielded | - | - | - |
|
415-0022-036COAX CBL MCX TO MCX |
2,614 |
|
Datasheet | - | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
415-0070-MM500COAX CBL SMA TO MMCX |
3,126 |
|
Datasheet | - | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|

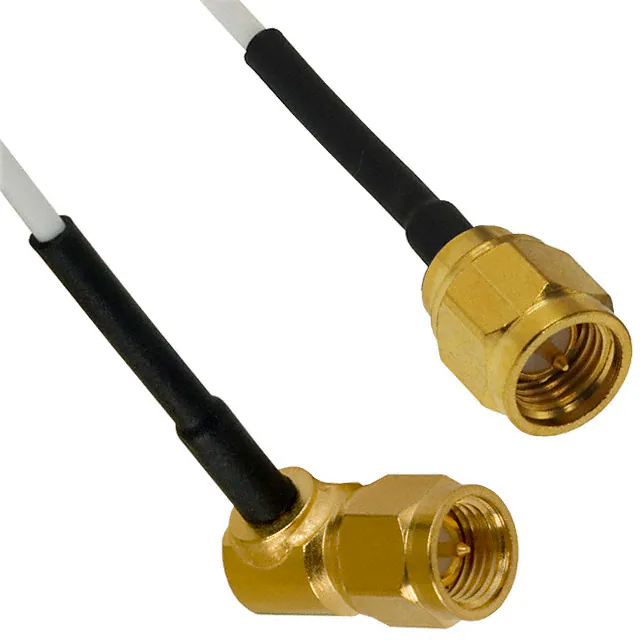

415-0026-018COAX CBL SMA TO SMA |
3,270 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
