Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
415-0070-MM150COAX CBL SMA TO MMCX |
3,833 |
|
Datasheet | - | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
415-0022-018COAX CBL MCX TO MCX |
1,214 |
|
Datasheet | - | Bulk | Obsolete | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
73-6361-3COAX CBL BNC TO BNC |
2,986 |
|
Datasheet | - | Bulk | Obsolete | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
415-0032-M1.0COAX CBL SMA TO SMA |
4,519 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|

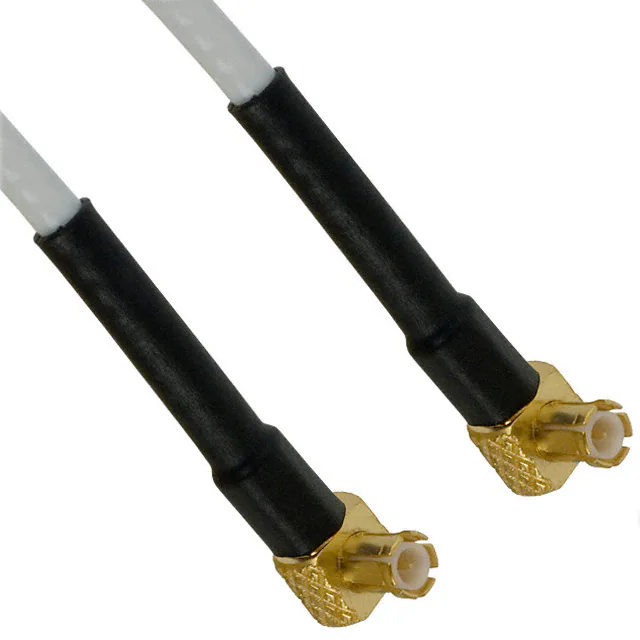

415-0021-006COAX CBL MCX TO MCX |
2,050 |
|
Datasheet | - | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|
|
415-0021-012COAX CBL MCX TO MCX |
1,124 |
|
Datasheet | - | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|
|
415-0021-024COAX CBL MCX TO MCX |
2,473 |
|
Datasheet | - | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|

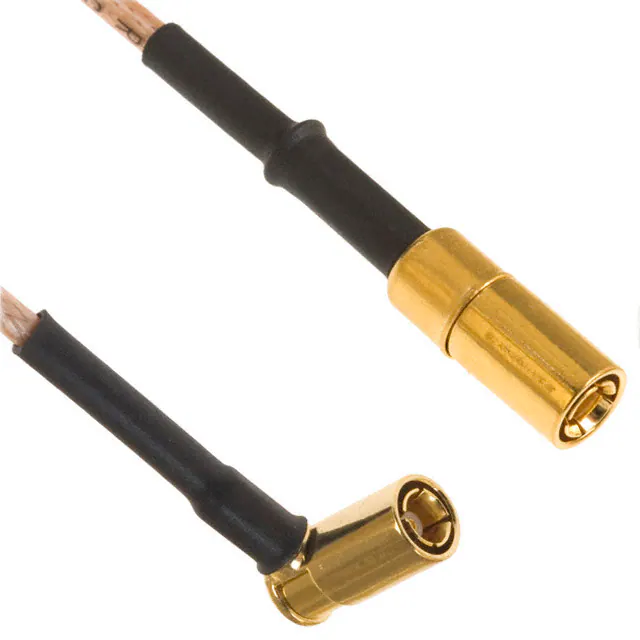

415-0002-012COAX CBL SMB TO SMB |
1,494 |
|
Datasheet | - | Bulk | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
415-0020-006COAX CBL MCX TO MCX |
4,463 |
|
Datasheet | - | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|
|
415-0020-012COAX CBL MCX TO MCX |
3,396 |
|
Datasheet | - | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Gray | Shielded | - | - | - |
