Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBG-2SARMGT-12INCOAX CBL RP-SMA TO RP-SMA |
200 |
|
Datasheet | - | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
CBG-SAF3GT-SALRMGT-4INCOAX CBL RP-SMA TO SMA |
200 |
|
Datasheet | - | Bulk | Active | RP-SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
P1CA-SAFPT-047SR-2COAX CBL SMA TO CABLE |
525 |
|
Datasheet | - | Box | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 2.000" (50.80mm) | 0.047" Semi-Rigid Cable | 50 Ohms | - | - | - | - | - | -40°C ~ 85°C | - | - |
|
|
CBQ1-SAF3GT-SALMGT-4INCOAX CBL SMA TO SMA |
200 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
CBG-SAF3GT-SALMGT-6INCOAX CBL SMA TO SMA |
200 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
CBD-SAF3GT-SALMGT-6INCOAX CBL SMA TO SMA |
200 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
CBG-SAF3GT-SALRMGT-6INCOAX CBL RP-SMA TO SMA |
200 |
|
Datasheet | - | Bulk | Active | RP-SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
P1CA-SAMSAM-RG58-15COAX CBL SMA TO SMA |
108 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 15.00" (381.00mm) | RG-58 | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
CBQ1-SALRMGT-SARF3GT-6INCOAX CBL RP-SMA TO RP-SMA |
200 |
|
Datasheet | - | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
CBG-SAF3GT-SALMGT-8INCOAX CBL SMA TO SMA |
200 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
CBQ1-SAF3GT-SALMGT-6INCOAX CBL SMA TO SMA |
200 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
P1-SMAJ/PIGTAIL-047SR-4COAX CBL SMA TO CABLE |
197 |
|
Datasheet | - | Box | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 4.000" (101.60mm) | 0.047" Semi-Rigid Cable | 50 Ohms | - | - | - | - | - | -40°C ~ 85°C | - | - |
|
|
CBG-SAF3GT-SALRMGT-8INCOAX CBL RP-SMA TO SMA |
200 |
|
Datasheet | - | Bulk | Active | RP-SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
PE3CA1053-6COAX CBL UMCX TO UMCX |
433 |
|
Datasheet | - | Retail Package | Active | UMCX to UMCX | UMCX Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.37mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
CBG-SAF3GT-SALMGT-10INCOAX CBL SMA TO SMA |
200 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | RG-178 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
PECA2383-100CMCOAX CBL BNC TO BNC |
140 |
|
Datasheet | - | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-6 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
P1CA-SAFPT-047SR-3COAX CBL SMA TO CABLE |
147 |
|
Datasheet | - | Box | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 3.000" (76.20mm) | 0.047" Semi-Rigid Cable | 50 Ohms | - | - | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|

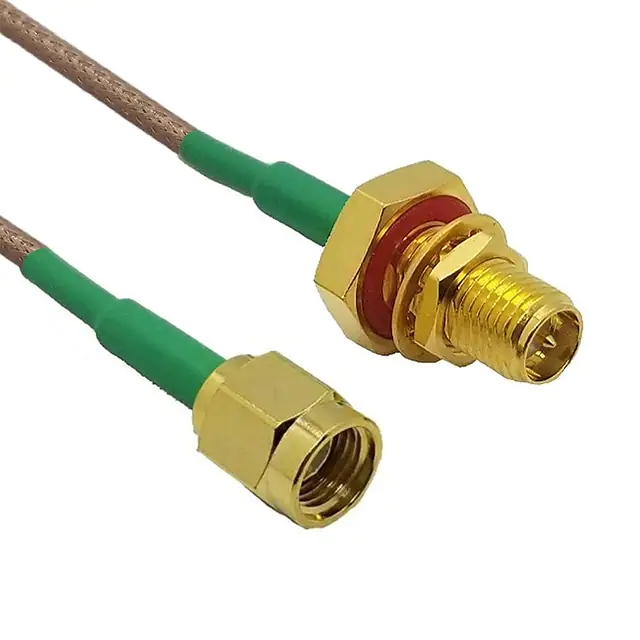

CBG-SARF3OGTX9-SARMGT-4INCOAX CBL RP-SMA TO RP-SMA |
200 |
|
Datasheet | - | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
CBG-SAF3OGTX15-SARMGT-4INCOAX CBL RP-SMA TO SMA |
200 |
|
Datasheet | - | Bulk | Active | RP-SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
CBG-SAF3GT-SALMGT-12INCOAX CBL SMA TO SMA |
200 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
