Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1476782CBL 3POS PLUG RA TO WIRE 32.8' |
4,563 |
|
Datasheet | SAC | Bulk | Active | Plug, Right Angle | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1022770300SAIL-M12GM12G-5-3.0UN |
1,800 |
|
Datasheet | SAIL | Box | Active | Receptacle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP66/IP67/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1224273CBL 4POS RCPT RA TO PLUG 0.98' |
2,343 |
|
Datasheet | NBC | Bulk | Active | Receptacle, Right Angle | Male Pins | 4 | All | M12 | D | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 4 | All | M12 | D | Free Hanging (In-Line) | 0.98' (300.00mm) | Standard | Round | Polyurethane (PUR) | Shielded | IP67 - Dust Tight, Waterproof | Cat5, Industrial Environments |
|
|
1518025CIRC CBL 5POS RCPT TO WIRE 6.56' |
4,582 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | 2 | M12 | B | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1300060089CIRC CBL 2POS PLUG TO WIRE 3' |
1,547 |
|
- |
130006 | Bulk | Active | Plug | Female Sockets | 2 | All | - | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.00' (914.40mm) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | - |
|
|
1224012CIRC CBL 3POS RCPT TO PLUG 4.92' |
1,027 |
|
Datasheet | SAC | Bulk | Active | Receptacle | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | 4.92' (1.50m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1343843CIRC CBL 5POS RCPT TO WIRE 16.4' |
4,092 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | M8 | - | - | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | - | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1405489CIRC CBL 3POS PLUG TO WIRE 65.6' |
4,060 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 3 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 65.6' (20.0m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

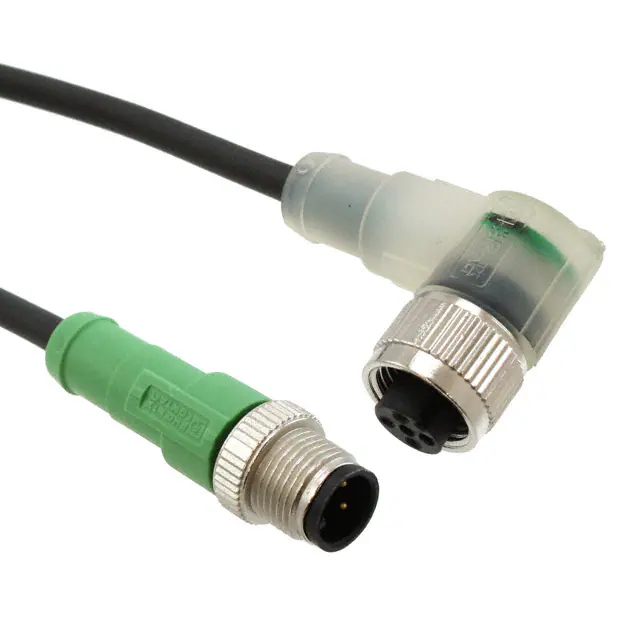

1668548CBL 4POS RCPT TO PLUG RA 9.84' |
2,229 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | A | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1407820CBL 8POS PLUG RA TO WIRE 16.4' |
1,869 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 8 | 6 | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1415727CIRC CBL 8POS PLUG TO WIRE 32.8' |
1,657 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1022730500SAIL-M12GM12G-4-5.0UN |
2,344 |
|
Datasheet | SAIL | Box | Active | Receptacle | Male Pins | 4 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP66/IP67/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1200870329CBL CIRC 3POS 0.5M |
1,104 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1275470500CBL 8POS PLUG RA TO WIRE 16.4' |
2,430 |
|
Datasheet | SAIL | Bulk | Active | Plug, Right Angle | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP66K/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
2094789CIRC CBL 3POS PLUG TO WIRE 32.8' |
2,495 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 3 | All | M8 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP66K/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
2096213CBL 4POS PLUG RA TO WIRE 49.2' |
2,903 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 49.2' (15.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP66K/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
2095857CBL 4POS RCPT TO PLUG RA 16.4' |
2,029 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | A | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP66K/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
2096237CIRC CBL 4POS PLUG TO WIRE 49.2' |
4,435 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 49.2' (15.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP66K/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
2095779CBL 8POS PLUG RA TO WIRE 6.56' |
3,090 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP66K/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
2095588CBL 3POS PLUG RA TO WIRE 32.8' |
1,680 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 3 | All | M8 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP66K/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
