Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1089952CIRC CBL 4POS RCPT TO WIRE 3.28' |
2,976 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | T | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
T4061220004-005CBL 4POS RCPT RA TO WIRE 16.4' |
4,677 |
|
Datasheet | M8 | Bag | Active | Receptacle, Right Angle | Male Pins | 4 | All | M8 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1417701CIRC CBL 3POS RCPT TO PLUG 9.84' |
1,511 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 3 | All | M8 | - | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M8 | - | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1405986CIRC CBL 5POS PLUG TO WIRE 6.56' |
1,627 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
C5D06M005CBL 5POS PLUG RA TO WIRE 16.4' |
1,255 |
|
Datasheet | - | Bag | Active | Plug, Right Angle | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | - | Shielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
C5C06M005CIRC CBL 5POS PLUG TO WIRE 16.4' |
2,972 |
|
Datasheet | - | Bag | Active | Plug | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | - | Shielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
1095805CBL 8POS PLUG RA TO WIRE 6.56' |
2,097 |
|
Datasheet | SAC | Bulk | Active | Plug, Right Angle | Male Pins | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1400420CIRC CBL 4POS PLUG TO WIRE 3.28' |
3,784 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1095802CIRC CBL 8POS RCPT TO WIRE 6.56' |
4,571 |
|
Datasheet | SAC | Bulk | Active | Receptacle | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1938210150CBL 4POS RCPT TO PLUG RA 4.92' |
2,500 |
|
Datasheet | SAI | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | A | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 4 | All | M8 | Keyed | Free Hanging (In-Line) | 4.92' (1.50m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
C5A06M005CIRC CBL 5POS RCPT TO WIRE 16.4' |
2,601 |
|
Datasheet | - | Bag | Active | Receptacle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | - | Shielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|

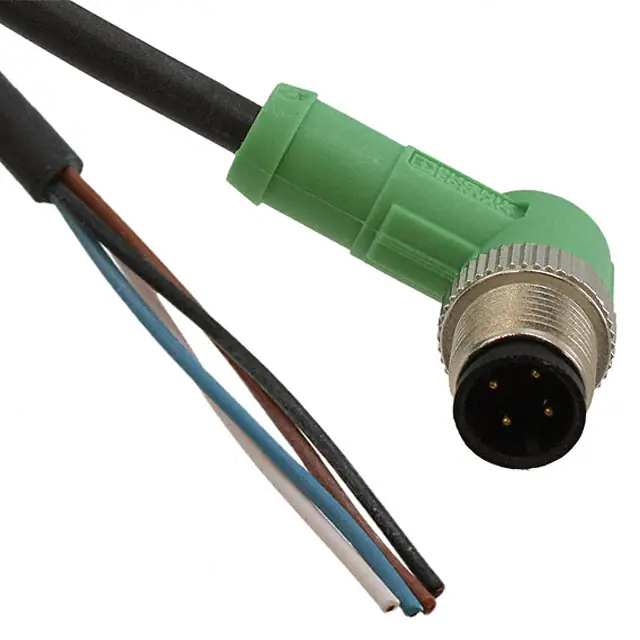

1668182CBL 4POS RCPT RA TO WIRE 16.4' |
1,470 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1095880CBL 8POS RCPT RA TO WIRE 6.56' |
4,980 |
|
Datasheet | SAC | Bulk | Active | Receptacle, Right Angle | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1095784CBL 8POS PLUG RA TO WIRE 6.56' |
3,124 |
|
Datasheet | SAC | Bulk | Active | Plug, Right Angle | Male Pins | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
MQDMC-501CIRC CBL 5POS RCPT TO WIRE 1' |
4,551 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | M12 | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 1.00' (304.80mm) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
EVT004CBL 4POS PLUG RA TO WIRE 16.4' |
2,818 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 4 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67/IP68/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
XZCP1141L5CIRC CBL 4POS PLUG TO WIRE 16.4' |
3,719 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 4 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
NEBB-M12G5-P-10-LE5CIRC CBL 5POS PLUG TO WIRE 32.8' |
2,775 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1036873CIRC CBL 4POS PLUG TO WIRE 3.94' |
2,815 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 4 (3 Power + PE) | All | M12 | S | Panel Mount | Wire Leads | - | - | - | - | - | - | 3.94' (1.20m) | Standard | Individual | - | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
BU-1669848CIRC CBL 5POS PLUG TO WIRE 16.4' |
3,691 |
|
Datasheet | BU | Bulk | Active | Plug | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP67/IP68 - Dust Tight, Waterproof | Industrial Environments |
