Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10-03844CIRC CBL 3POS RCPT TO PLUG 32.8' |
1,365 |
|
Datasheet | M12 | Bulk | Active | Receptacle | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | Plug | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
10-05278CIRC CBL 4POS PLUG TO WIRE 1' |
2,922 |
|
Datasheet | M5 | Bulk | Active | Plug | Male Pins | 4 | All | M5 | A | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.00' (305.00mm) | Standard | Individual | Polyphenylene Ether, Modified (mPPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
10-04472CIRC CBL 5POS RCPT TO WIRE 9.84' |
4,576 |
|
Datasheet | M12 | Bulk | Active | Receptacle | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
10-05889CIRC CBL 5POS PLUG TO PLUG 4.92' |
4,672 |
|
Datasheet | M12 | Bulk | Active | Plug | Male Pins | 5 | All | M12 | D | Free Hanging (In-Line) | Plug | Male Pins | 5 | All | M12 | D | Free Hanging (In-Line) | 4.92' (1.50m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|

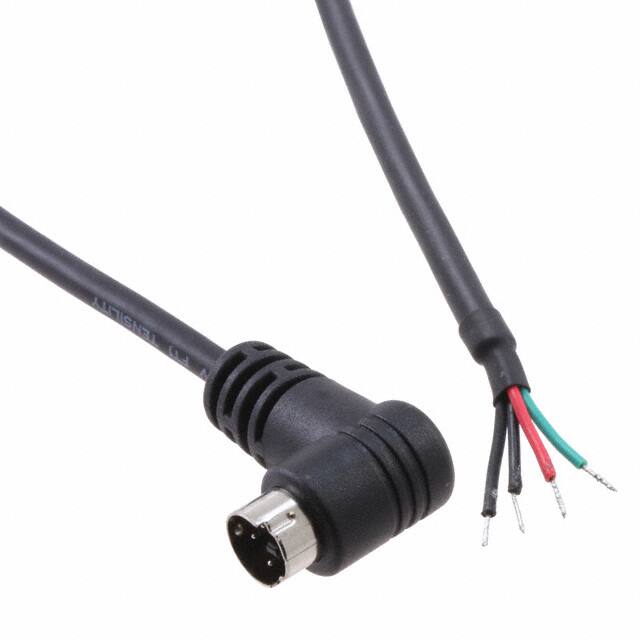

10-00539CIRC CBL 3POS RCPT RA TO WIRE 6' |
1,434 |
|
Datasheet | - | Bulk | Obsolete | Receptacle, Right Angle | Male Pins | 3 | All | MiniDin | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.00' (1.83m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | - | - |
|
10-00525CIRC CBL 3POS RCPT RA TO WIRE 6' |
2,012 |
|
Datasheet | - | Bulk | Obsolete | Receptacle, Right Angle | Male Pins | 3 | All | DIN | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.00' (1.83m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | - | - |
|
10-00547CIRC CBL 4POS PLUG RA TO WIRE 6' |
4,607 |
|
Datasheet | - | Bulk | Obsolete | Plug, Right Angle | Female Sockets | 4 | All | MiniDin | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.00' (1.83m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | - | - |
|
10-00541CIRC CBL 5POS RCPT RA TO WIRE 6' |
1,689 |
|
Datasheet | - | Bulk | Obsolete | Receptacle, Right Angle | Male Pins | 5 | All | MiniDin | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.00' (1.83m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | - | - |
|
10-00540CIRC CBL 4POS RCPT RA TO WIRE 6' |
1,625 |
|
Datasheet | - | Bulk | Obsolete | Receptacle, Right Angle | Male Pins | 4 | All | MiniDin | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.00' (1.83m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | - | - |
|
10-00440CIRC CBL 3POS PLUG TO WIRE 6' |
4,909 |
|
Datasheet | - | Bulk | Obsolete | Plug | Female Sockets | 3 | All | DIN | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.00' (1.83m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | - | - |
