Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XZCPV11V12L2CIRC CBL 5POS PLUG TO WIRE 6.56' |
2,762 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
XZCP1041L5CBL 4POS PLUG RA TO WIRE 16.4' |
3,733 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 4 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

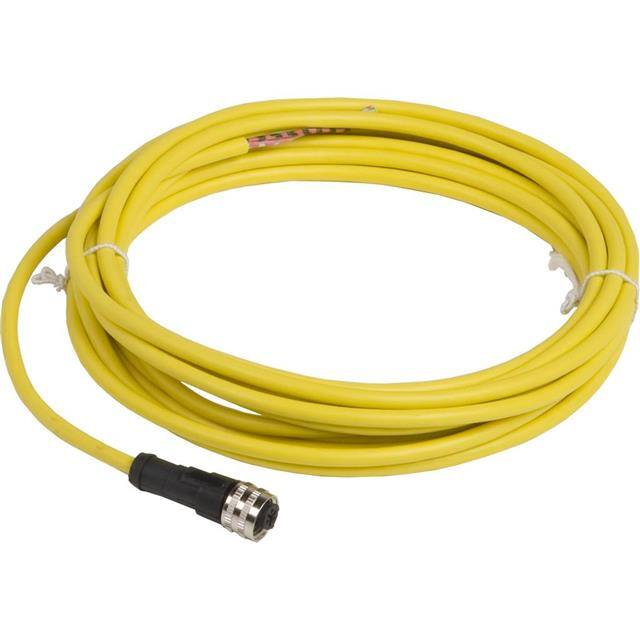

XZCPV1865L5CIRC CBL 3POS PLUG TO WIRE 16.4' |
2,243 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 3 | All | 1/2" | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
XZCPA1241L5CBL 4POS PLUG RA TO WIRE 16.4' |
1,261 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 4 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP69K - Dust Tight, High Temp Water Jets, Waterproof | Industrial Environments |
|

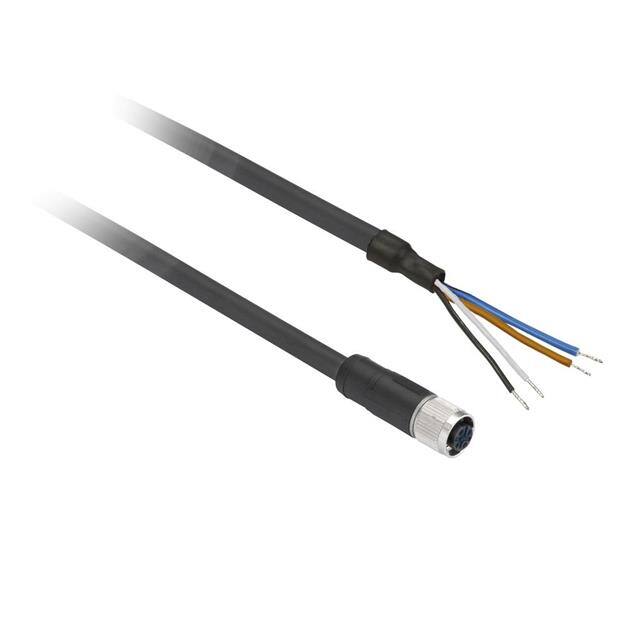

XZCP1164L5CIRC CBL 5POS PLUG TO WIRE 16.4' |
2,484 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCPV11V12L10CIRC CBL 5POS PLUG TO WIRE 32.8' |
4,667 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

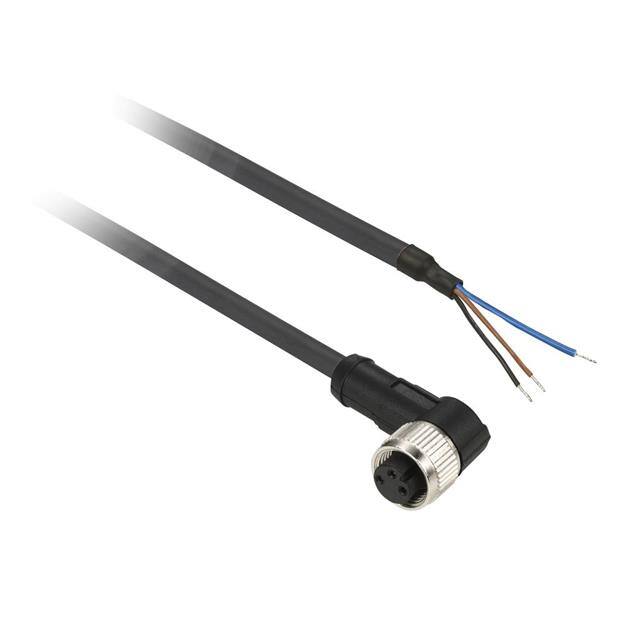

XZCP0266L5CBL 3POS PLUG RA TO WIRE 16.4' |
4,397 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 3 | All | - | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
XZCP2737L1CIRC CBL 3POS RCPT TO WIRE 3.28' |
4,803 |
|
Datasheet | - | Box | Active | Receptacle | Male Pins | 3 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
XZCP1164L10CIRC CBL 5POS PLUG TO WIRE 32.8' |
4,765 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

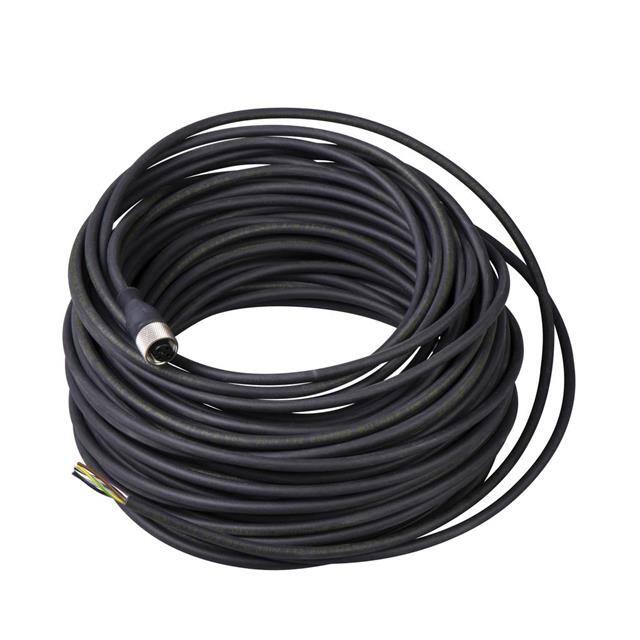

XZCP1164L25CIRC CBL 5POS PLUG TO WIRE 82' |
2,142 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 82.0' (25.0m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
