Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XZCP1264L25CBL 5POS PLUG RA TO WIRE 82' |
2,571 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 82.0' (25.0m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCR1510041J1ASI 1M JUMPER CAB. M12 STR. TO S |
2,774 |
|
Datasheet | XZCR | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | - | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 4 | All | M8 | - | Free Hanging (In-Line) | 3.28' (1.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
XZCPV1264L5CBL 5POS PLUG RA TO WIRE 16.4' |
3,544 |
|
Datasheet | - | Box | Active | Plug, Right Angle | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
TCSMCN1F5CIRC CBL PLUG TO WIRE LEAD 16.4' |
4,905 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | - | - | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | - | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
XZCP1164L15CIRC CBL 5POS PLUG TO WIRE 49.2' |
1,554 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 5 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 49.2' (15.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCPV1670L5CIRC CBL 3POS PLUG TO WIRE 16.4' |
1,422 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 3 | All | - | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

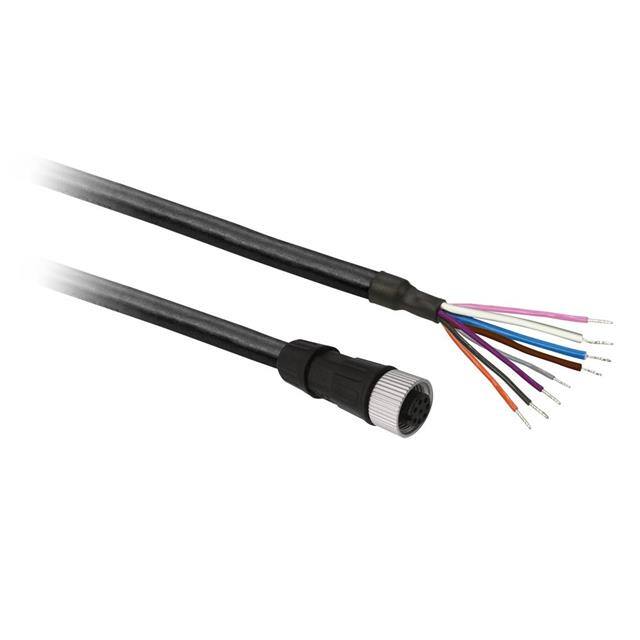

XZCP29P12L10CIRC CBL 8POS PLUG TO WIRE 32.8' |
3,243 |
|
Datasheet | - | Box | Active | Plug | Female Sockets | 8 | All | M12 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCRB151141C2CIRC CBL 4POS RCPT TO PLUG 6.56' |
3,642 |
|
Datasheet | - | Box | Active | Receptacle | Male Pins | 4 | All | M12 | - | Free Hanging (In-Line) | Plug | Female Sockets | 4 | All | M12 | - | Free Hanging (In-Line) | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCR2711037T1CIRC CBL 3POS RCPT TO PLUG 3.28' |
3,561 |
|
Datasheet | - | Box | Active | Receptacle | Male Pins | 3 | All | M8 | - | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M12 | - | Free Hanging (In-Line) | 3.28' (1.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
XZCR1502040G2CBL 3POS RCPT TO PLUG RA 6.56' |
3,856 |
|
Datasheet | - | Box | Active | Receptacle | Male Pins | 3 | All | M12 | - | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 3 | All | M8 | - | Free Hanging (In-Line) | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
