Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

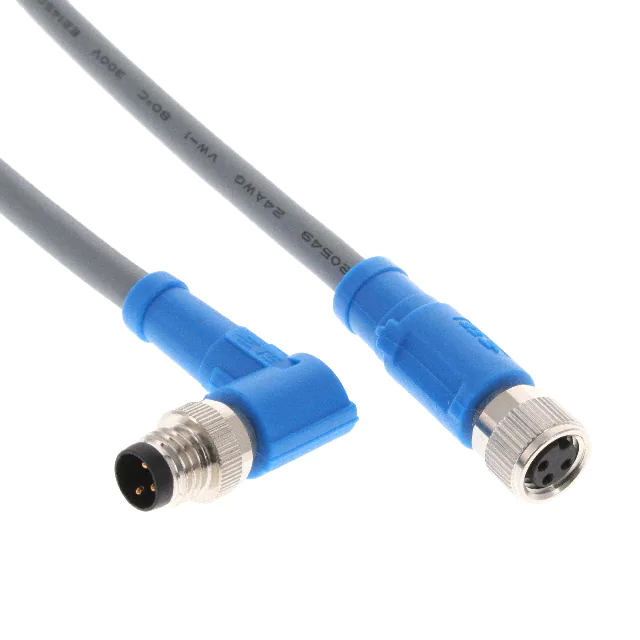

T4052224003-001CBL 3POS RCPT RA TO PLUG 1.64' |
3,601 |
|
Datasheet | M8 | Bag | Active | Receptacle, Right Angle | Male Pins | 3 | All | M8 | A | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 3 | All | M8 | A | Free Hanging (In-Line) | 1.64' (500.00mm) | Standard | Round | Polyurethane (PUR) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
2273000-2CIRC CBL 3POS PLUG TO WIRE 9.84' |
1,236 |
|
Datasheet | M8 | Box | Active | Plug | Male Pins | 3 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65 - Dust Tight, Water Resistant | Industrial Environments |
|

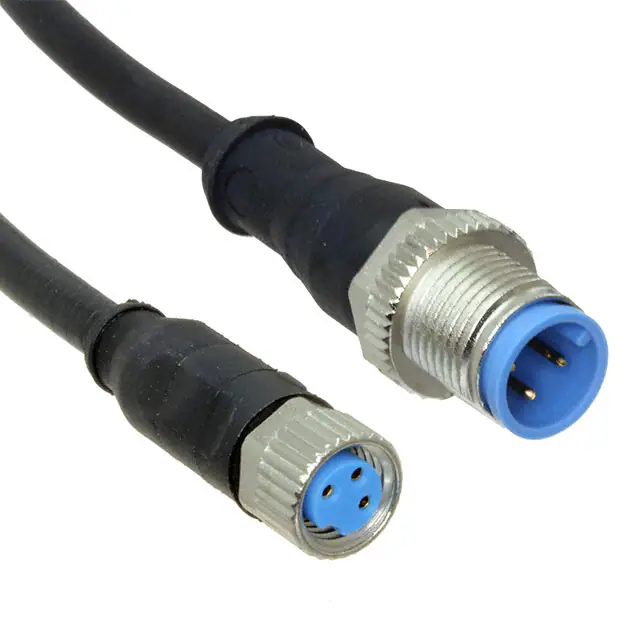

2273110-1CIRC CBL 3POS RCPT TO PLUG 0.98' |
2,743 |
|
Datasheet | M8, M12 | Box | Active | Receptacle | Female Sockets | 3 | All | M8 | - | Free Hanging (In-Line) | Plug | Male Pins | 3 | All | M12 | AA | Free Hanging (In-Line) | 0.98' (300.00mm) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
T4052228003-002CBL 3POS RCPT RA TO PLUG 3.28' |
2,414 |
|
Datasheet | M8, M12 | Bag | Active | Receptacle, Right Angle | Male Pins | 3 | All | M8 | A | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 5 | 3 | M12 | A | Free Hanging (In-Line) | 3.28' (1.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
T4052325003-002CIRC CBL 5POS RCPT TO PLUG 3.28' |
4,801 |
|
Datasheet | M8, M12 | Bag | Active | Receptacle | Male Pins | 5 | 3 | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M8 | A | Free Hanging (In-Line) | 3.28' (1.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|

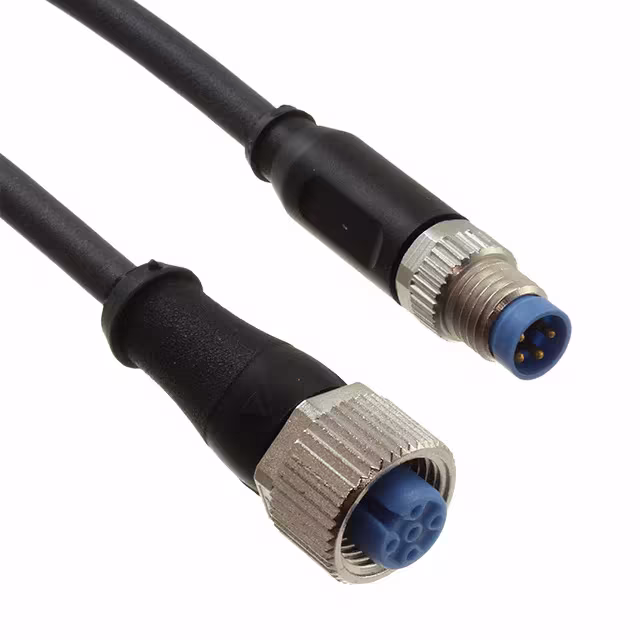

1-2273109-2CIRC CBL 4POS RCPT TO PLUG 1.97' |
2,914 |
|
Datasheet | M8, M12 | Box | Active | Receptacle | Female Sockets | 4 | All | M12 | AA | Free Hanging (In-Line) | Plug | Male Pins | 4 | All | M8 | - | Free Hanging (In-Line) | 1.97' (600.00mm) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
2273011-2CBL 4POS RCPT RA TO WIRE 9.84' |
4,914 |
|
Datasheet | M8 | Box | Active | Receptacle, Right Angle | Female Sockets | 4 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
2387131-1CIRC CBL 8POS PLUG TO WIRE 1.64' |
1,010 |
|
Datasheet | - | Bag | Active | Plug | Male Pins | 8 | All | - | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | - | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
T4052127004-002CIRC CBL 4POS RCPT TO PLUG 3.28' |
1,304 |
|
Datasheet | M8, M12 | Bag | Active | Receptacle | Male Pins | 4 | All | M8 | A | Free Hanging (In-Line) | Plug | Female Sockets | 5 | 4 | M12 | A | Free Hanging (In-Line) | 3.28' (1.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
2386906-2CIRC CBL 4POS PLUG TO WIRE 3.28' |
1,744 |
|
Datasheet | - | Bag | Active | Plug | Male Pins | 4 | All | - | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Individual | - | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
