Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1507120CIRC CBL 5POS PLUG TO WIRE 16.4' |
4,085 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 5 | All | M12 | B | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1419726CIR CBL 17POS RCPT TO WIRE 1.64' |
2,691 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 17 | All | M12 | A | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1414902CIRC CBL 6POS PLUG TO WIRE 4.92' |
1,497 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 6 (5 Power + PE) | All | M12 | M | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1452107CIRC CBL 8POS RCPT TO WIRE 1.64' |
3,802 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 8 | All | M12 | A | Panel Feed Through | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1416633CIRC CBL 5POS PLUG TO WIRE 32.8' |
3,772 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 5 | All | 7/8" | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|

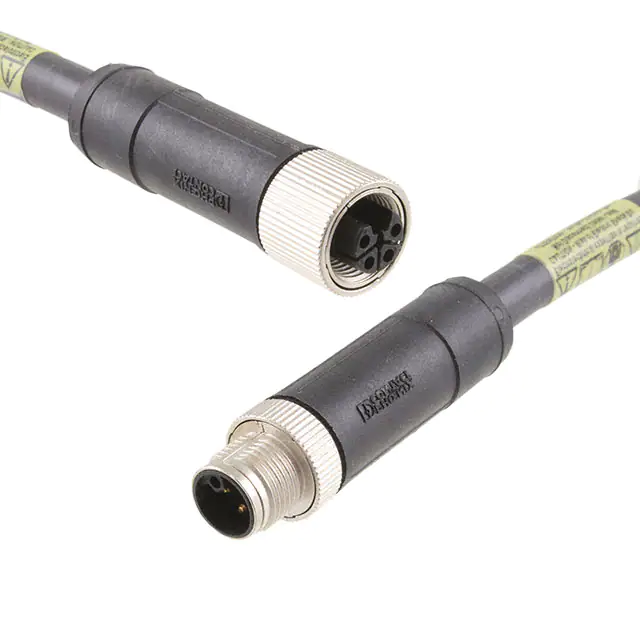

1425063CIRC CBL 4POS RCPT TO PLUG 4.92' |
2,417 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | L | Free Hanging (In-Line) | Plug | Female Sockets | 4 | All | M12 | L | Free Hanging (In-Line) | 4.92' (1.50m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1521999CBL 4POS PLUG RA TO WIRE 32.8' |
4,855 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 4 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1407505CIRC CBL 8POS PLUG TO WIRE 3.28' |
3,492 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 8 (4 Data + 4 Power) | All | M12 | Y | Panel Mount | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP67 - Dust Tight, Waterproof | Cat5, Industrial Environments |
|
1419412CIRC CBL 5POS RCPT TO WIRE 6.56' |
3,691 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | M12 | A | Panel Mount | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1414910CIRC CBL 6POS PLUG TO WIRE 9.84' |
3,992 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 6 (5 Power + PE) | All | M12 | M | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
