Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1238227INTERCONNECT MISC |
3,477 |
|
- |
SACC | Bulk | Active | Plug | Female Sockets | 3 | All | M12 | S | Panel Mount | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Individual | - | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1696086CBL 4POS RCPT TO PLUG RA 9.84' |
3,851 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | A | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1524129CBL 4POS PLUG RA TO WIRE 32.8' |
2,987 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1416602CIRC CBL 6POS PLUG TO WIRE 3.28' |
4,623 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 6 | All | 7/8" | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
|
1416591CBL 6POS PLUG RA TO WIRE 3.28' |
4,824 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 6 | All | 7/8" | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
|
1698084CIRC CBL 3POS RCPT TO PLUG 3.28' |
4,814 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | 3.28' (1.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1095996CBL 3POS RCPT RA TO WIRE 49.2' |
2,109 |
|
Datasheet | SAC | Bulk | Active | Receptacle, Right Angle | Female Sockets | 3 | All | M8 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 49.2' (15.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
|
1096053CIRC CBL 4POS PLUG TO WIRE 49.2' |
2,233 |
|
Datasheet | SAC | Bulk | Active | Plug | Male Pins | 4 | All | M8 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 49.2' (15.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
|
1162524CIRC CBL 6POS PLUG TO WIRE 4.92' |
3,486 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 6 | All | M12 | M | Panel Mount | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Individual | - | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|

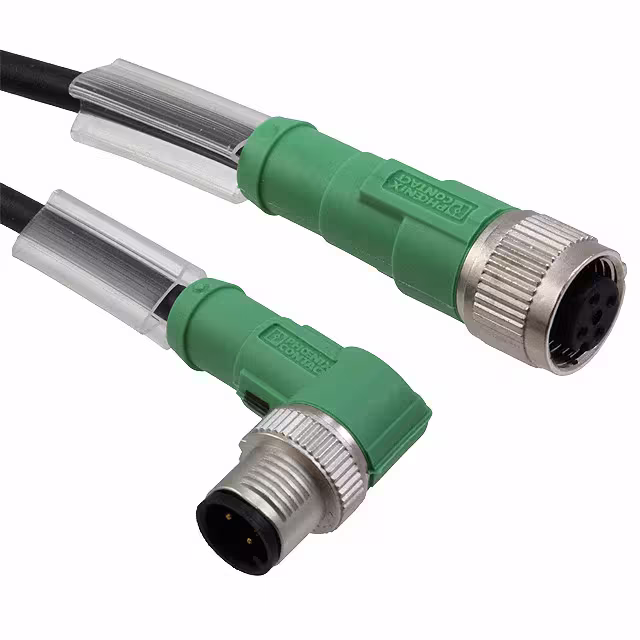

1518957CBL 4POS RCPT RA TO PLUG 9.84' |
2,943 |
|
Datasheet | - | Bulk | Obsolete | Receptacle, Right Angle | Male Pins | 4 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
