Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1406008CBL 4POS RCPT RA TO PLUG 4.92' |
1,161 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 4 | All | M8 | - | Free Hanging (In-Line) | Plug | Female Sockets | 4 | All | M8 | - | Free Hanging (In-Line) | 4.92' (1.50m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1457212CBL 5POS PLUG RA TO WIRE 9.84' |
3,966 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1457348CBL 5POS RCPT RA TO WIRE 16.4' |
4,869 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

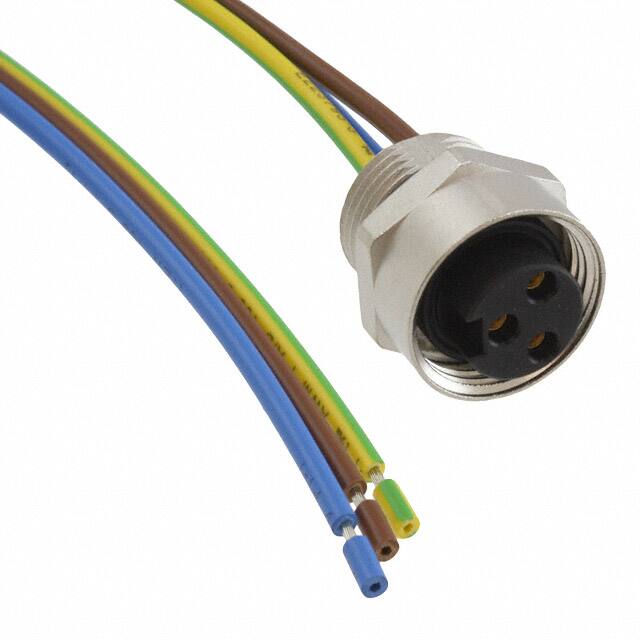

1521407CIRC CBL 3POS PLUG TO WIRE 1.64' |
1,914 |
|
Datasheet | - | Bulk | Obsolete | Plug | Female Sockets | 3 | All | 7/8" | A | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
1409493CIR CBL 3POS PLUG RA TO RA 4.92' |
4,167 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | 4.92' (1.50m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1409517CBL 3POS RCPT RA TO PLUG 4.92' |
2,035 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | 4.92' (1.50m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1409512CBL 3POS RCPT TO PLUG RA 4.92' |
4,672 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | 4.92' (1.50m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1409510CIRC CBL 3POS RCPT TO PLUG 4.92' |
4,258 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | 4.92' (1.50m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1163033CIRC CBL 4POS RCPT TO WIRE 1.64' |
2,195 |
|
Datasheet | - | Bulk | Obsolete | Receptacle | Male Pins | 4 | All | M12 | L | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | - | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
1544947CBL 4POS RCPT RA TO PLUG 6.56' |
2,284 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 4 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
