Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1682692CBL 3POS PLUG RA TO WIRE 9.84' |
3,518 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1403958CIRC CBL 4POS RCPT TO WIRE 16.4' |
1,664 |
|
Datasheet | - | Bulk | Active | Receptacle | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Ethylene Propylene Diene Monomer (EPDM), Polypropylene (PP) | Unshielded | IP65/IP67/IP68/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

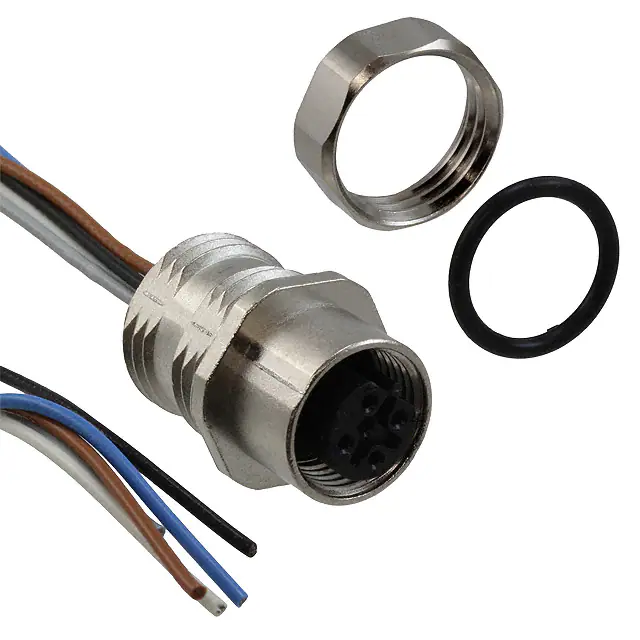

1515044CIRC CBL 5POS PLUG TO WIRE 1.64' |
2,134 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 5 | All | M12 | B | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1403962CBL 4POS RCPT RA TO WIRE 16.4' |
4,354 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Ethylene Propylene Diene Monomer (EPDM), Polypropylene (PP) | Unshielded | IP65/IP67/IP68/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1404020CBL 8POS PLUG RA TO WIRE 9.84' |
2,368 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Round | Ethylene Propylene Diene Monomer (EPDM), Polypropylene (PP) | Unshielded | IP65/IP67/IP68/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1415645CBL 4POS RCPT RA TO PLUG 9.84' |
3,217 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 4 | All | M12 | A | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1415732CBL 8POS PLUG RA TO WIRE 4.92' |
3,927 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1544235CIRC CBL 5POS RCPT TO PLUG 6.56' |
4,015 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1238772INTERCONNECT MISC |
4,355 |
|
- |
SACC | Bulk | Active | Receptacle | Male Pins | 8 | All | M12 | A | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | - | Unshielded | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1416614CBL 4POS RCPT RA TO WIRE 6.56' |
3,530 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 4 | All | 7/8" | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
