Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1521614CIRC CBL 3POS RCPT TO WIRE 4.92' |
4,328 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 3 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1404182CBL 8POS RCPT RA TO WIRE 4.92' |
3,033 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 8 | All | M8 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1682142CIRC CBL 4POS RCPT TO PLUG 0.98' |
4,174 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | M8 | - | Free Hanging (In-Line) | Plug | Female Sockets | 4 | All | M8 | - | Free Hanging (In-Line) | 0.98' (300.00mm) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1406167CIRC CBL 5POS PLUG TO WIRE 32.8' |
2,409 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1522095CIRC CBL 6POS RCPT TO WIRE 4.92' |
1,940 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 6 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1406157CIRC CBL 5POS RCPT TO WIRE 32.8' |
2,049 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

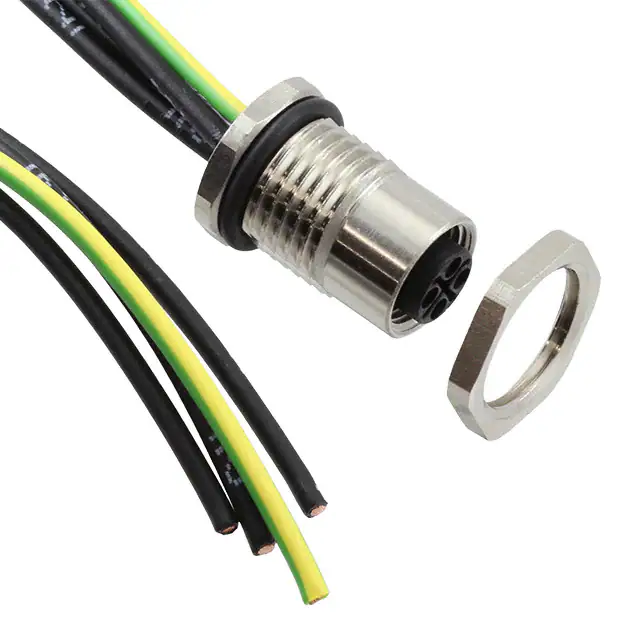

1424133CIRC CBL 4POS PLUG TO WIRE 1.64' |
3,608 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 4 (Power) | All | M12 | S | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | - | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1682757CBL 5POS RCPT RA TO WIRE 4.92' |
3,056 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1419081CIRC CBL 5POS PLUG TO WIRE 6.56' |
1,556 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1542703CIRC CBL 5POS RCPT TO WIRE 1.64' |
4,626 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | M12 | A | Panel Feed Through | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
