Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1096029CBL 3POS PLUG RA TO WIRE 32.8' |
4,001 |
|
Datasheet | SAC | Bulk | Active | Plug, Right Angle | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1089977CBL 4POS PLUG RA TO WIRE 3.28' |
4,696 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 4 | All | M12 | T | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1412032CIRC CBL 3POS RCPT TO WIRE 3.28' |
2,583 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 3 | All | M12 | Keyed | - | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | - | - | - | - | - |
|
1694114CBL 3POS PLUG RA TO WIRE 32.8' |
1,761 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 3 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

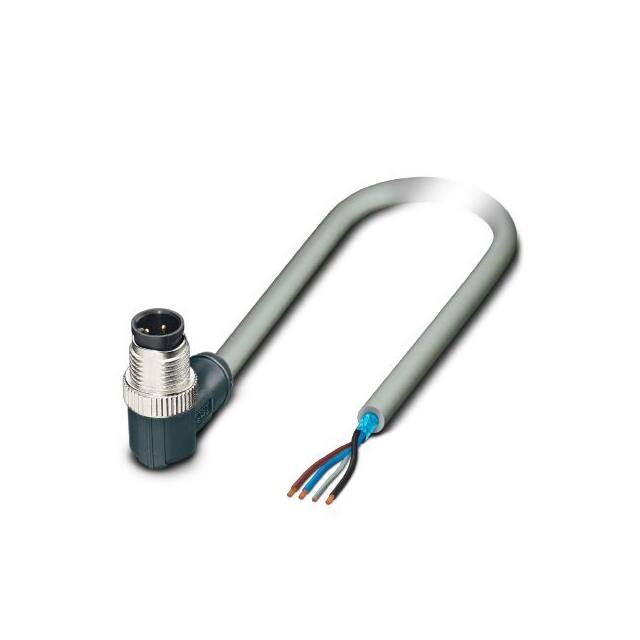

1095908CBL 4POS PLUG RA TO WIRE 32.8' |
2,479 |
|
Datasheet | SAC | Bulk | Active | Plug, Right Angle | Male Pins | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1424965CBL 3POS RCPT RA TO PLUG 16.4' |
1,305 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1681525CIRC CBL 3POS RCPT TO PLUG 4.92' |
4,942 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | 4.92' (1.50m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1424969CBL 3POS RCPT TO PLUG RA 16.4' |
1,656 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1694415CBL 3POS PLUG RA TO WIRE 16.4' |
1,097 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1416644CIRC CBL 5POS RCPT TO WIRE 6.56' |
2,089 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | 7/8" | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
