Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1525445CIRC CBL 5POS RCPT TO PLUG 9.84' |
4,617 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | 2 | M12 | B | Free Hanging (In-Line) | Plug | Female Sockets | 5 | 2 | M12 | B | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1407506CIRC CBL 8POS PLUG TO WIRE 6.56' |
1,070 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 8 (4 Data + 4 Power) | All | M12 | Y | Panel Mount | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP67 - Dust Tight, Waterproof | Cat5, Industrial Environments |
|
|
1507379CIRC CBL 5POS RCPT TO PLUG 6.56' |
2,499 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | 2 | M12 | B | Free Hanging (In-Line) | Plug | Female Sockets | 5 | 2 | M12 | B | Free Hanging (In-Line) | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1425009CIRC CBL 5POS RCPT TO PLUG 0.98' |
1,011 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 (4 Power + FE) | All | M12 | L | Free Hanging (In-Line) | Plug | Female Sockets | 5 (4 Power + FE) | All | M12 | L | Free Hanging (In-Line) | 0.98' (300.00mm) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

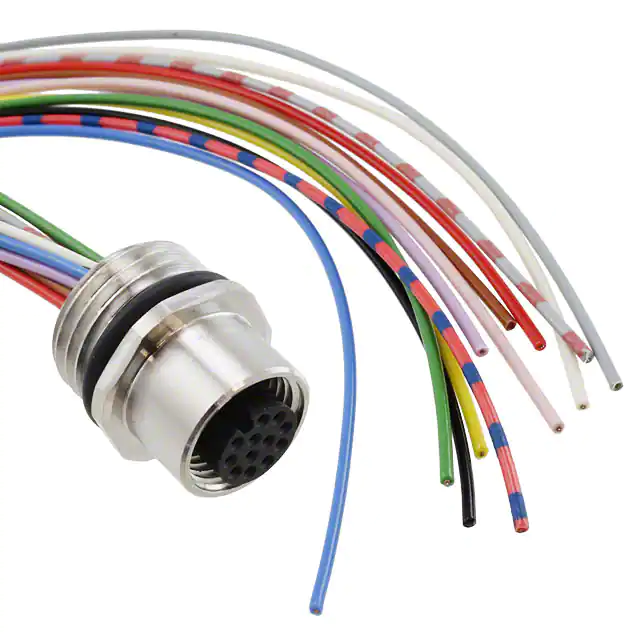

1405242CIR CBL 12POS PLUG TO WIRE 1.64' |
2,770 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 12 | All | M12 | A | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1425116CBL 4POS PLUG RA TO WIRE 65.6' |
2,181 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 65.6' (20.0m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1414911CIRC CBL 6POS PLUG TO WIRE 9.84' |
2,653 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 6 (5 Power + PE) | All | M12 | M | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1416657CIRC CBL 6POS PLUG TO WIRE 32.8' |
1,726 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 6 | All | 7/8" | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
1405243CIR CBL 17POS RCPT TO WIRE 1.64' |
3,671 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 17 | All | M12 | A | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1569401CIRC CBL 4POS RCPT TO WIRE 16.4' |
2,267 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 (Data) | All | M12 | D | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Cat5, Industrial Environments |
