Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

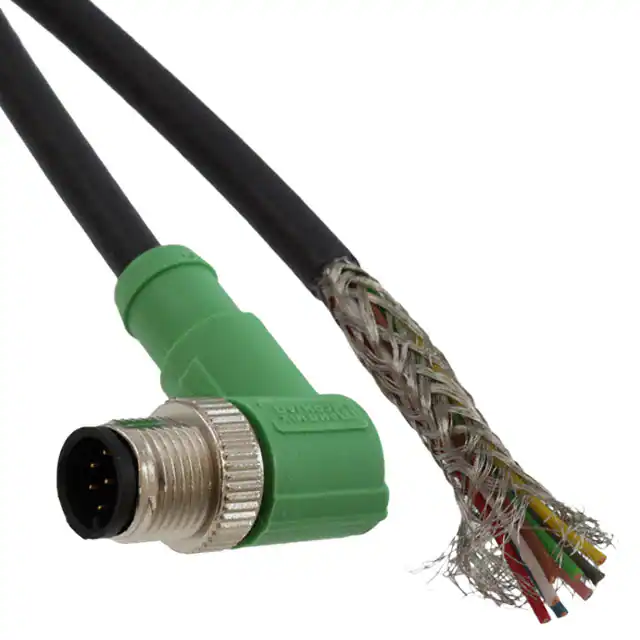

1522833CBL 8POS RCPT RA TO WIRE 16.4' |
2,159 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1522888CIRC CBL 8POS PLUG TO WIRE 16.4' |
4,596 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1530841CIRC CBL 5POS RCPT TO PLUG 49.2' |
4,734 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | 49.2' (15.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|

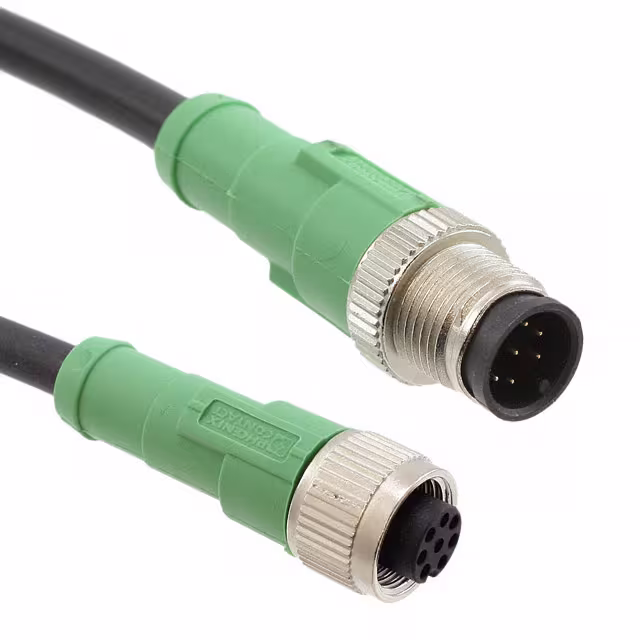

1522998CIRC CBL 8POS RCPT TO PLUG 9.84' |
4,212 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 8 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1569113CIRC CBL 8POS PLUG TO WIRE 65.6' |
3,922 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 65.6' (20.0m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

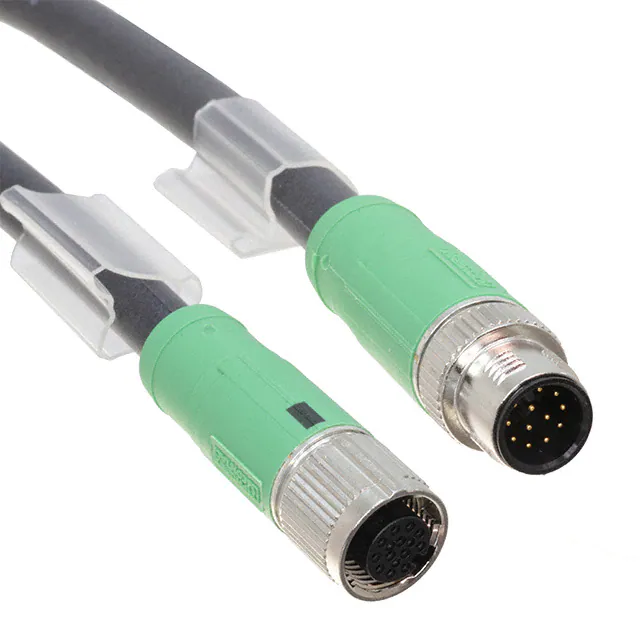

1404941CIR CBL 12POS RCPT TO PLUG 3.28' |
1,318 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 12 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 12 | All | M12 | A | Free Hanging (In-Line) | 3.28' (1.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1530854CIRC CBL 5POS RCPT TO PLUG 82' |
3,158 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | 82.0' (25.0m) | Standard | Round | Polyurethane (PUR) | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|

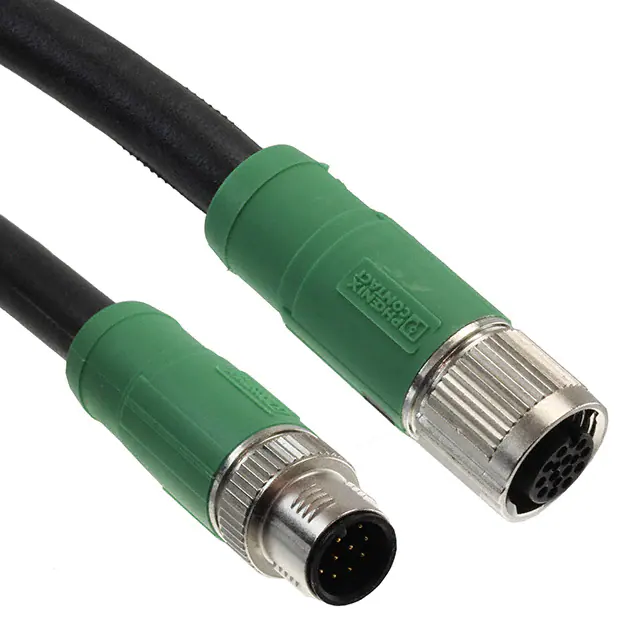

1404940CBL 12POS RCPT TO PLUG 16.4' |
2,355 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 12 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 12 | All | M12 | A | Free Hanging (In-Line) | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1430158CIR CBL 12POS PLUG TO WIRE 32.8' |
1,874 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 12 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1414114CIR CBL 17POS RCPT TO PLUG 9.84' |
3,591 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 17 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 17 | All | M12 | A | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Shielded | - | - |
