Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1420961CIRC CBL 5POS PLUG TO WIRE 3.28' |
4,919 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 5 | All | 7/8" | Keyed | Panel Mount | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
1416522CIRC CBL 2POS PLUG TO WIRE 32.8' |
3,658 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 2 | All | 7/8" | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
1095969CBL 4POS PLUG RA TO WIRE 49.2' |
4,471 |
|
Datasheet | SAC | Bulk | Active | Plug, Right Angle | Male Pins | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 49.2' (15.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1513774CIRC CBL 8POS RCPT TO WIRE 1.64' |
3,683 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 8 | All | M12 | A | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1095842CBL 4POS RCPT RA TO WIRE 49.2' |
2,850 |
|
Datasheet | SAC | Bulk | Active | Receptacle, Right Angle | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 49.2' (15.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1682980CBL 5POS PLUG RA TO WIRE 16.4' |
4,350 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1095846CIRC CBL 8POS PLUG TO RCPT 1.64' |
3,106 |
|
Datasheet | SAC | Bulk | Active | Plug | Male Pins | 8 | All | M12 | A | Free Hanging (In-Line) | Receptacle | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | 1.64' (500.00mm) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1095788CIRC CBL 8POS PLUG TO WIRE 32.8' |
3,411 |
|
Datasheet | SAC | Bulk | Active | Plug | Male Pins | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1681020CBL 4POS PLUG RA TO WIRE 32.8' |
3,962 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

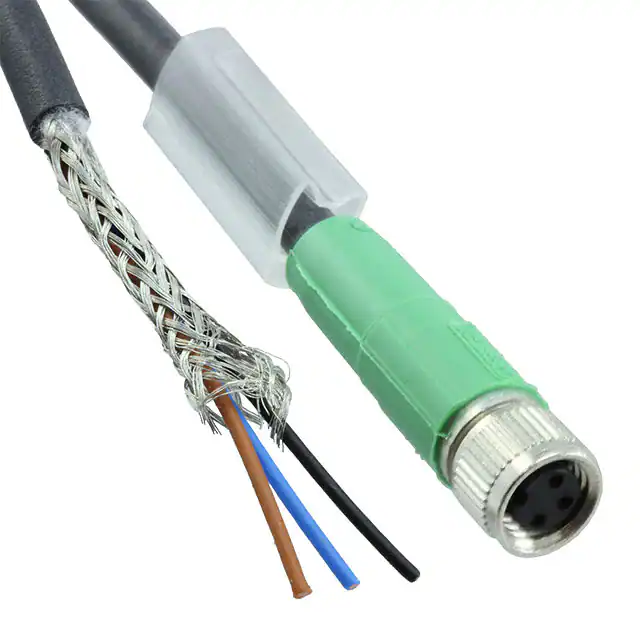

1521737CIRC CBL 3POS PLUG TO WIRE 16.4' |
1,854 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 3 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
