Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1682278CBL 4POS RCPT RA TO PLUG 1.97' |
1,194 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 4 | All | M8 | - | Free Hanging (In-Line) | Plug, Right Angle | Female Sockets | 4 | All | M8 | - | Free Hanging (In-Line) | 1.97' (600.00mm) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1095822CIRC CBL 5POS PLUG TO WIRE 32.8' |
4,618 |
|
Datasheet | SAC | Bulk | Active | Plug | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1417776CIRC CBL 5POS RCPT TO WIRE 3.28' |
2,169 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | 7/8" | Keyed | Panel Mount | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|

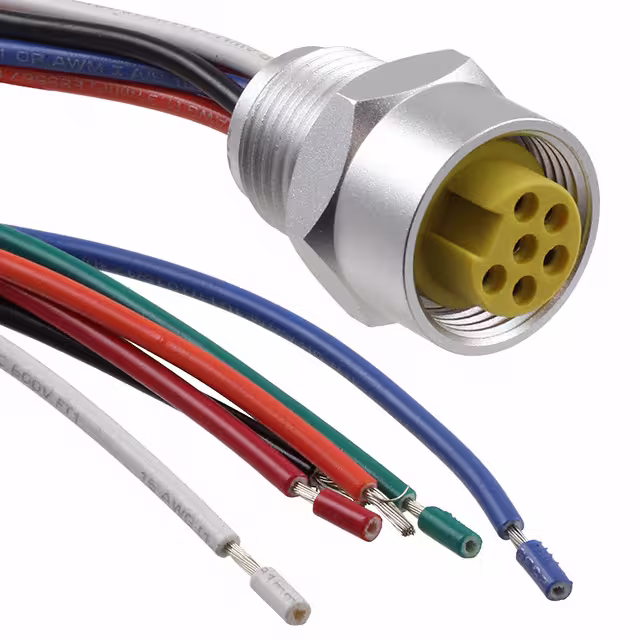

1420956CIRC CBL 6POS PLUG TO WIRE 3.28' |
4,447 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 6 | All | 7/8" | Keyed | Panel Mount | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Individual | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
1694091CIRC CBL 3POS RCPT TO PLUG 32.8' |
3,097 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 3 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1406049CBL 3POS RCPT RA TO PLUG 4.92' |
1,085 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 3 | All | M8 | - | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | M8 | - | Free Hanging (In-Line) | 4.92' (1.50m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1095823CBL 5POS RCPT RA TO WIRE 32.8' |
2,510 |
|
Datasheet | SAC | Bulk | Active | Receptacle, Right Angle | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1095885CIRC CBL 8POS RCPT TO WIRE 16.4' |
3,813 |
|
Datasheet | SAC | Bulk | Active | Receptacle | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1699876CIRC CBL 5POS RCPT TO WIRE 9.84' |
2,869 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | - | - |
|
1420959CIRC CBL 5POS RCPT TO WIRE 3.28' |
1,911 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | 7/8" | Keyed | Panel Mount | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
