Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1551529CIRC CBL 4POS PLUG TO WIRE 1.64' |
1,235 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 4 (Data) | All | M12 | D | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|

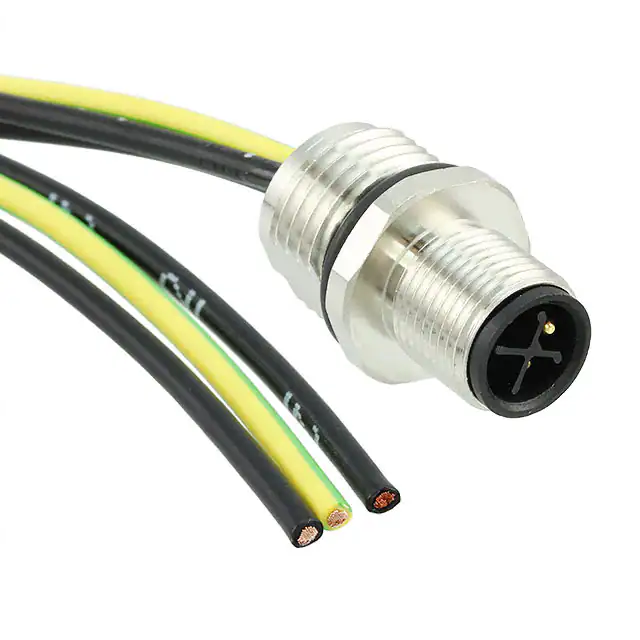

1411655CIRC CBL 3POS RCPT TO WIRE 1.64' |
1,036 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 3 (2 Power + PE) | All | M12 | S | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | - | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|

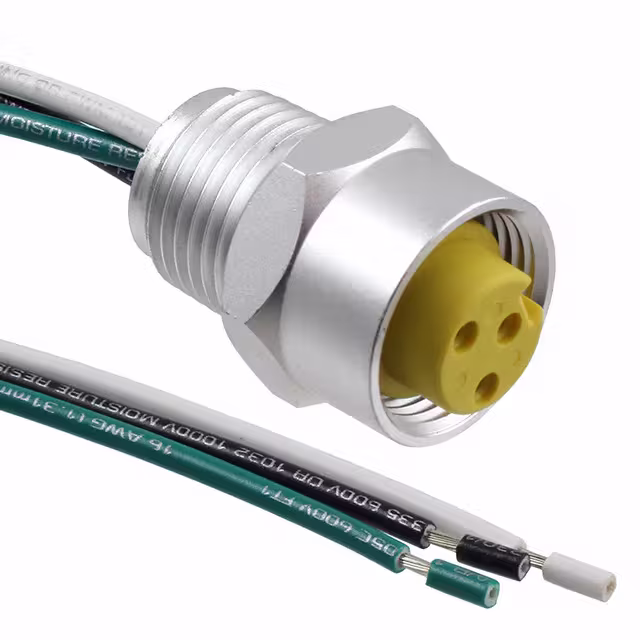

1420953CIRC CBL 3POS PLUG TO WIRE 3.28' |
4,475 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 3 | All | 7/8" | Keyed | Panel Mount | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Individual | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|

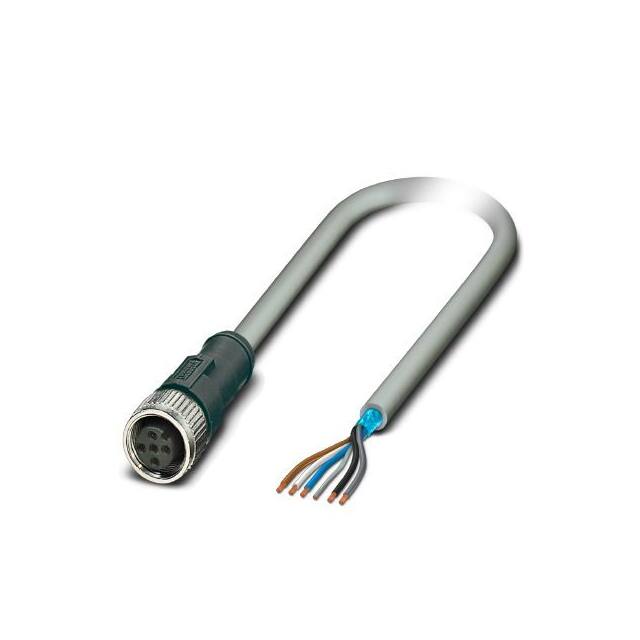

1095848CIRC CBL 5POS RCPT TO WIRE 16.4' |
2,267 |
|
Datasheet | SAC | Bulk | Active | Receptacle | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1411653CIRC CBL 3POS RCPT TO WIRE 1.64' |
2,892 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 3 (2 Power + PE) | All | M12 | S | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | - | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

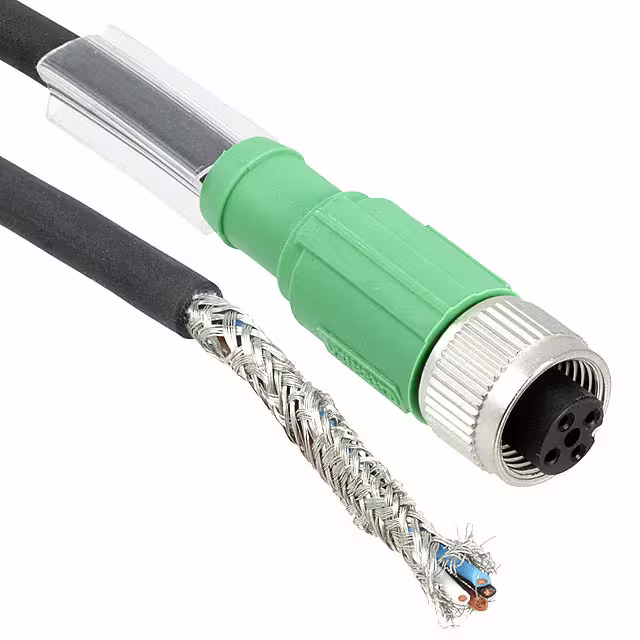

1682841CIRC CBL 4POS PLUG TO WIRE 4.92' |
2,728 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1668069CIRC CBL 4POS RCPT TO WIRE 16.4' |
1,922 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1096001CIRC CBL 4POS PLUG TO RCPT 9.84' |
4,631 |
|
Datasheet | SAC | Bulk | Active | Plug | Male Pins | 4 | All | M8 | A | Free Hanging (In-Line) | Receptacle | Female Sockets | 4 | All | M8 | A | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1556618CIRC CBL 4POS RCPT TO WIRE 1.64' |
1,493 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | A | Panel Feed Through | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1509487CIRC CBL 4POS PLUG TO WIRE 6.56' |
1,280 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
