Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

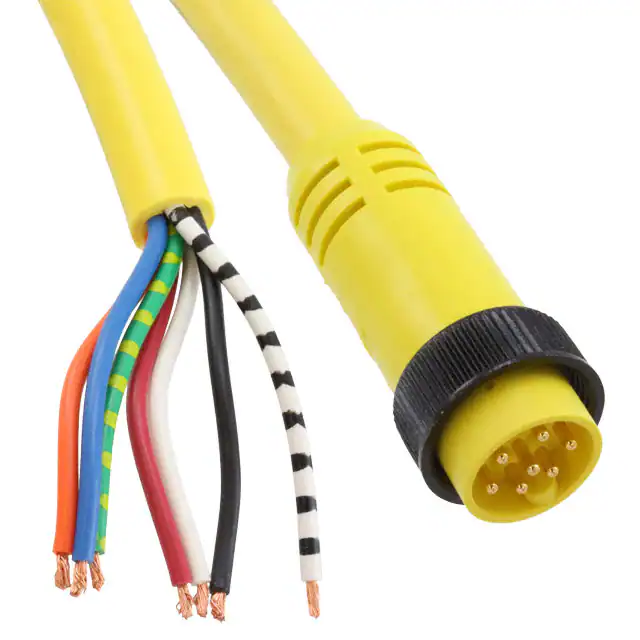

1300070115CIRC CBL 7POS RCPT TO WIRE 6' |
3,159 |
|
Datasheet | Brad Mini-Change 130007 | Bulk | Active | Receptacle | Male Pins | 7 | All | 1" | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.00' (1.83m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof; NEMA 6 | Industrial Environments |
|
1200660694CIRC CBL 4POS RCPT TO PLUG 26.2' |
2,321 |
|
Datasheet | Brad Micro-Change 120065 | Bag | Active | Receptacle | Male Pins | 4 | All | M12 | Keyed | Free Hanging (In-Line) | Plug | Female Sockets | 4 | All | M12 | Keyed | Free Hanging (In-Line) | 26.2' (8.00m) | Standard | Round | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1201088308CIRC CBL 4POS RCPT TO RCPT 16.4' |
2,551 |
|
Datasheet | Brad Micro-Change 120108 | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | D | Free Hanging (In-Line) | Receptacle | Male Pins | 4 | All | M12 | D | Free Hanging (In-Line) | 16.40' (5.00m) | Standard | Round | Thermoplastic Polyurethane (TPU) | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1200948150CBL 12POS PLUG RA TO WIRE 32.8' |
3,967 |
|
Datasheet | Brad 120094 | Bulk | Active | Plug, Right Angle | Female Sockets | 12 | All | M23 | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Thermoplastic Polyurethane (TPU) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1300070026CIRC CBL 6POS PLUG TO WIRE 12' |
3,675 |
|
Datasheet | Brad Mini-Change 130007 | Bulk | Active | Plug | Female Sockets | 6 | All | 1" | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 12.00' (3.66m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
1200660891CIR CBL 5POS RCPT TO PLUG 13.12' |
3,900 |
|
Datasheet | Brad Micro-Change 120066 | Bulk | Active | Receptacle | Male Pins | 5 | 4 | M12 | Keyed | Free Hanging (In-Line) | Plug | Female Sockets | 4 | All | M12 | Keyed | Free Hanging (In-Line) | 13.12' (4.00m) | Standard | Round | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1300660152CIRC CBL 4POS RCPT TO WIRE 1.64' |
1,977 |
|
Datasheet | Brad Mini-Change 130066 | Bulk | Active | Receptacle | Female Sockets | 4 | All | - | Keyed | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
1300630003CIRC CBL 3POS PLUG TO WIRE 6.56' |
3,474 |
|
Datasheet | Brad Quick-Change 130063 | Bulk | Active | Plug | Female Sockets | 3 | All | - | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|

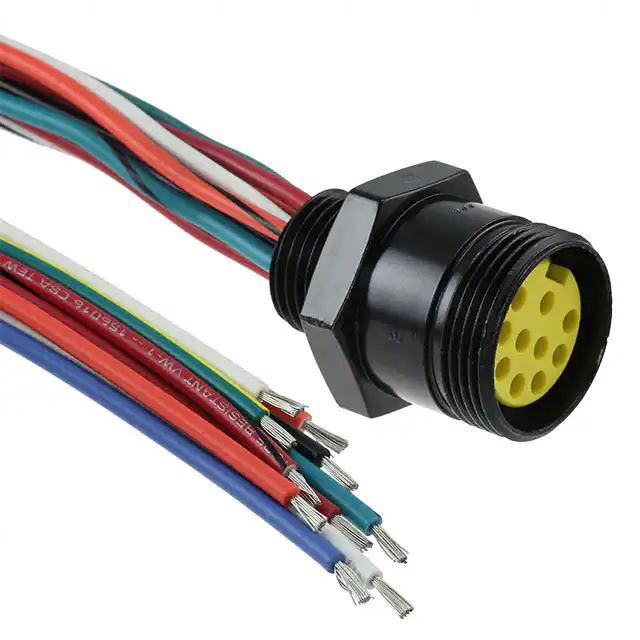

1300150024CIRC CBL 10POS RCPT TO WIRE 1' |
4,673 |
|
Datasheet | Brad Mini-Change 130015 | Bulk | Active | Receptacle | Female Sockets | 10 | All | - | Keyed | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.00' (304.80mm) | Standard | Individual | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof; NEMA 6 | Industrial Environments |
|
1300062172CIRC CBL 4POS PLUG TO WIRE 32.8' |
1,454 |
|
Datasheet | Brad Mini-Change 130006 | Bulk | Active | Plug | Female Sockets | 4 | All | 7/8" | Keyed | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
