Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1300480177CBL 4POS RCPT RA TO RCPT 1.97' |
1,028 |
|
Datasheet | Brad Micro-Change 130048 | Bulk | Active | Receptacle, Right Angle | Male Pins | 4 | All | M12 | - | Free Hanging (In-Line) | Receptacle, Right Angle | Male Pins | 4 | All | M12 | - | Free Hanging (In-Line) | 1.97' (600.00mm) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
8W429M005CBL CIRC |
2,378 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1204610048CIRC CBL 8POS PLUG TO WIRE 39.4' |
3,654 |
|
- |
120461 | Bulk | Active | Plug | Female Sockets | 8 | All | M12 | - | - | Wire Leads | - | - | - | - | - | - | 39.4' (12.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | - | - |
|
|
1200845192CIR CBL 12POS RCPT TO WIRE 0.98' |
4,665 |
|
Datasheet | Brad Ultra-Lock 120084 | Bulk | Active | Receptacle | Male Pins | 12 | All | M12 | - | Panel Mount | Wire Leads | - | - | - | - | - | - | 0.98' (300.00mm) | Standard | Individual | Polyvinyl Chloride (PVC) | Shielded | - | - |
|

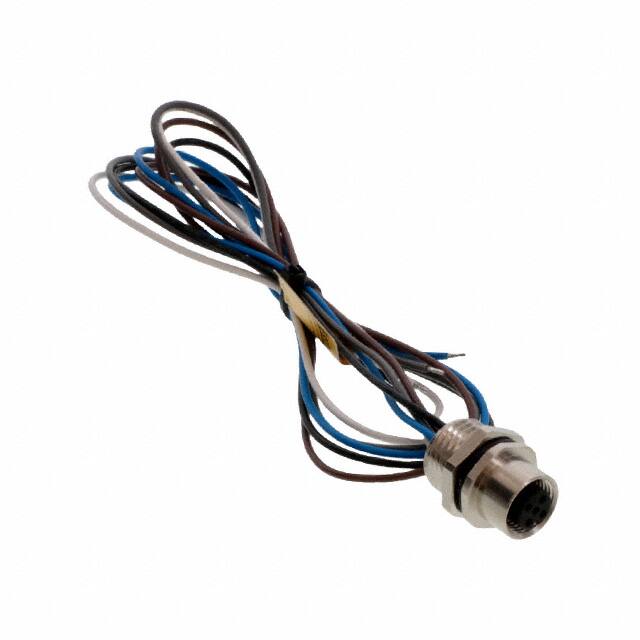

1200110037CIRC CBL 5POS PLUG TO WIRE 1.64' |
3,239 |
|
Datasheet | Brad Micro-Change 120011 | Bulk | Active | Plug | Female Sockets | 5 | All | M12 | Keyed | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Polyvinyl Chloride (PVC) | Unshielded | - | Industrial Environments |
|
|
1205000307CBL 5POS PLUG RA TO WIRE 3.28' |
3,185 |
|
Datasheet | Brad M12 Power L-Code | Bag | Active | Plug, Right Angle | Female Sockets | 5 | All | M12 | L | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Round | Thermoplastic Polyurethane (TPU) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
1200661775CIRC CBL 4POS RCPT TO PLUG 1.64' |
1,200 |
|
Datasheet | Brad Micro-Change 120066 | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | - | Free Hanging (In-Line) | Plug | Female Sockets | 4 | All | M12 | - | Free Hanging (In-Line) | 1.64' (500.00mm) | Standard | Round | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
1300480122CIRC CBL 4POS RCPT TO RCPT 3.28' |
3,283 |
|
Datasheet | Brad Micro-Change 130048 | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | - | Free Hanging (In-Line) | Receptacle | Male Pins | 4 | All | M12 | - | Free Hanging (In-Line) | 3.28' (1.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
1300061518CIRC CBL 5POS PLUG RA TO WIRE 6' |
3,817 |
|
Datasheet | Brad Mini-Change 130006 | Bulk | Active | Plug, Right Angle | Male Pins | 5 | All | A | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.00' (1.83m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
1200668379CIRC CBL 4POS RCPT TO PLUG 3.28' |
4,238 |
|
Datasheet | Brad Micro-Change 120066 | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | - | Free Hanging (In-Line) | Plug | Female Sockets | 4 | All | M12 | - | Free Hanging (In-Line) | 3.28' (1.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
