Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5710122805FLED CBI 2MM BI-LVL GREEN RA |
1,709 |
|
Datasheet | 571 | Bulk | Active | - | - | - | - | - | - | - | Round with Domed Top | 2.00mm Dia | - | Through Hole, Right Angle |
|
|
5710133103FLED CBI 2MM 2X4 YELLOW RA |
2,901 |
|
Datasheet | 571 | Bulk | Active | Yellow (x 8) | 590nm | 2 High x 4 Wide | 20mA | 8mcd | 70° | Diffused, Tinted | Round with Domed Top | 2.00mm Dia | 2.1V | Through Hole, Right Angle |
|
|
5710123812FLED CBI 2MM 2X2 GRN/YL |
4,381 |
|
Datasheet | 571 | Bulk | Active | Green (x 2), Yellow (x 2) | 565nm, 585nm | 2 High x 2 Wide | - | 8.7mcd Green, 12.6mcd Yellow | 38° | - | Round with Domed Top | 2.00mm Dia | 2.1V Green, 2.1V Yellow | - |
|
|
5640300102FLED CBI 3X1 GRN/RED/BLANK RA |
4,200 |
|
- |
564 | Bulk | Active | Green (x 1), Red (x 1), Blank (x 1) | 565nm, 635nm | 3 High | 10mA Green, 10mA Red | 19mcd Green, 29mcd Red | 60° | - | - | - | 5V Green, 5V Red | Through Hole, Right Angle |
|
|
5922135313FLED CBI |
2,858 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - |
|
|
5923520313FLED CBI BI-LVL RED/GN/BLU SMD RA |
4,692 |
|
- |
592 | Tape & Reel (TR) | Obsolete | Red (x 1), Red, Green, Blue (RGB) (x 1) | 660nm, 635nm, 523nm, 468nm | 2 High | 20mA | 21mcd Red, 31mcd Red, 84mcd Green, 16mcd Blue | - | - | Round with Domed Top | - | 2V Red, 1.9V Red, 3.4V Green, 3.4V Blue | Surface Mount, Right Angle |
|
|
5640100217FLED CBI 3MM 3X1 GRN/RED/ORN DIFF |
2,356 |
|
Datasheet | 564 | Bulk | Active | Green (x 1), Orange (x 1), Red (x 1) | 565nm, 600nm, 635nm | 3 High | - | 12.6mcd Green, 7mcd Orange, 10mcd Red | 60° | - | Round with Domed Top | 3mm, T-1 | 2.1V Green, 2.2V Orange, 2V Red | Through Hole, Right Angle |
|
|
5680731822FLED CBI 3MM QUAD GRN/RED/YL RA |
1,122 |
|
- |
568 | Bulk | Active | Green (x 2), Green, Red (x 1), Green, Yellow (x 1) | 565nm, 635nm, 585nm | 4 High | 30mA Green, 30mA Red, 20mA Yellow | 12.6mcd Green, 10mcd Green, 4.7mcd Red, 6.3mcd Green, 4.3mcd Yellow | 60° Green, 60° Green-Red, 80° Green-Yellow | - | Round with Domed Top | 3mm, T-1 | 2.1V Green, 2V Red, 2.1V Yellow | Through Hole, Right Angle |
|

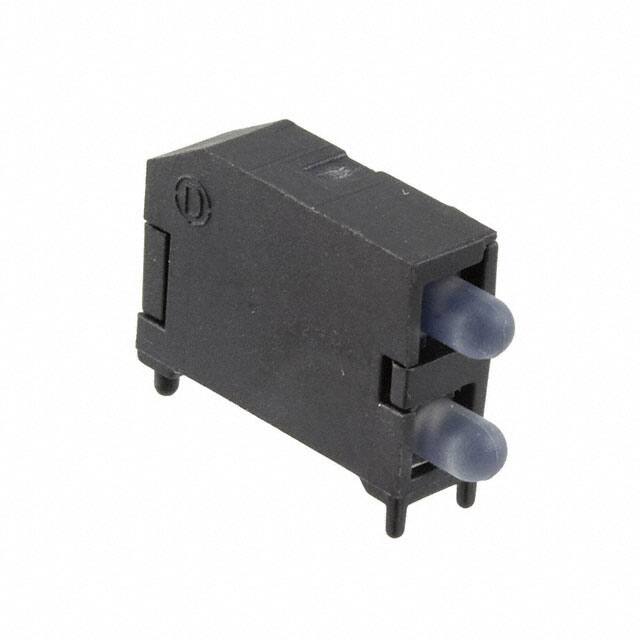

5922424313FLED CBI 3MM BI-LVL YELLOW |
1,540 |
|
Datasheet | 592 | Tape & Reel (TR) | Obsolete | Yellow (x 2) | 586nm | 2 High | 10mA | 2mcd | - | - | Round with Domed Top | 3.00mm Dia | 2V | - |
|
|
5680004880FLED CBI 3MM 4X1 RA |
3,337 |
|
Datasheet | 568 | Bulk | Active | - | - | - | - | - | - | - | Round with Domed Top | 3mm, T-1 | - | Through Hole, Right Angle |
