Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5505404004FLED CBI 5MM AMBER DIFF VERT QUAD |
4,302 |
|
Datasheet | 550 | Bulk | Active | Amber (x 4) | 610nm | 4 Wide | - | - | - | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | - | Through Hole |
|

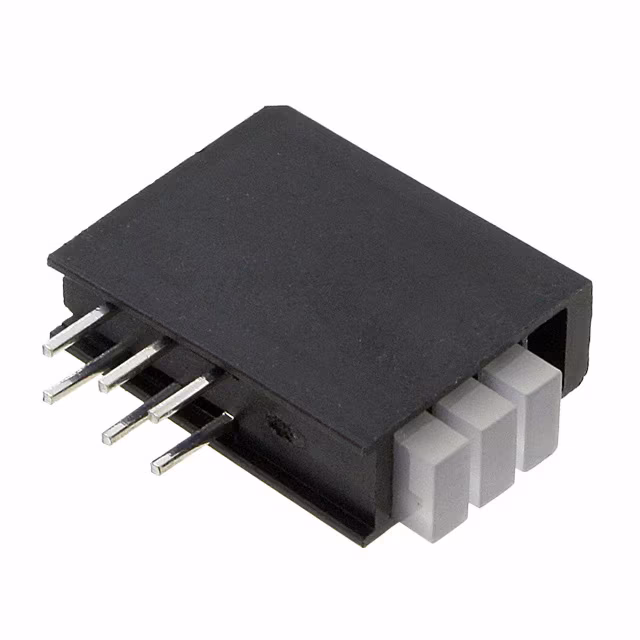

5680720441FLED CBI 4.2X2MM QUAD GN/R/Y/X RA |
2,030 |
|
Datasheet | 568 | Bulk | Active | Green, Red (x 1), Green, Yellow (x 2), Blank (x 1) | 565nm, 630nm, 585nm | 4 High | - | 5.6mcd Green, 1.7mcd Red, 3.7mcd Green, 2.5mcd Yellow | - | - | Rectangle with Flat Top | 4.20mm x 2.00mm | 2.1V Green, 2V Red, 2.1V Yellow | Through Hole, Right Angle |
|
|
HLMP1719104FLED CBI 3MM QUAD YELLOW RA |
4,946 |
|
- |
- | Bulk | Active | Yellow (x 4) | 583nm | 4 Wide | 7mA | 1.6mcd | 50° | Diffused | Round with Domed Top | 3mm, T-1 | 1.8V | Through Hole, Right Angle |
|
|
HLMP1503103FLED CBI 3MM TRI GREEN RA |
1,321 |
|
- |
- | Bulk | Active | Green (x 3) | 565nm | 3 Wide | 30mA | 7mcd | 60° | Diffused | - | - | 2.1V | Through Hole, Right Angle |
|
5510707004FLED CBI 3MM QUAD YELLOW RA |
2,769 |
|
Datasheet | 551 | Bulk | Active | Yellow (x 4) | 585nm | 4 Wide | 10mA | 12.6mcd | 60° | Diffused, Tinted | - | - | 5V | Through Hole, Right Angle |
|

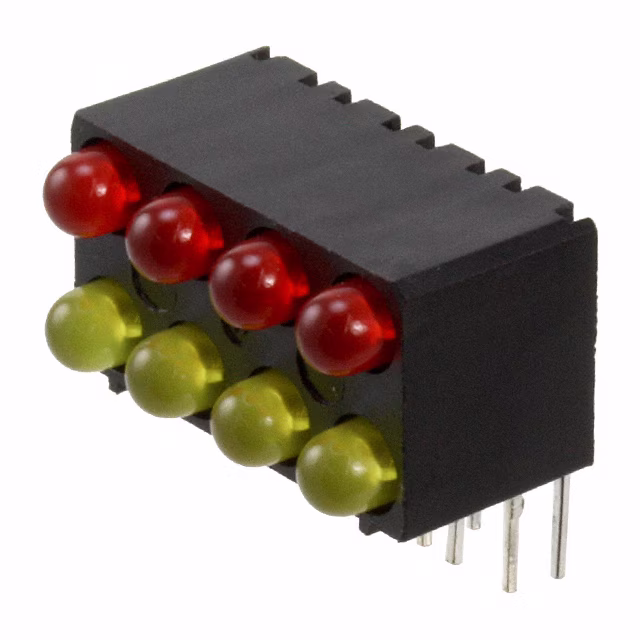

5530008813FLED CBI 3MM RED/YELLOW RA |
4,882 |
|
- |
553 | Bulk | Active | - | - | - | - | - | - | - | Round with Domed Top | 3mm, T-1 | - | Through Hole, Right Angle |
|
|
5680731848FLED CBI 3MM QUAD R/Y/G BACK LIT |
3,104 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|

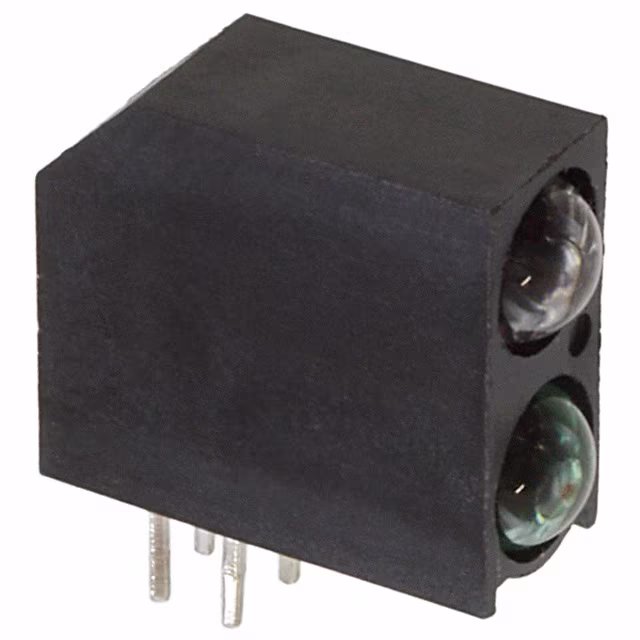

5522212804FLED CBI 5MM BI-LEVEL RD/GN RA |
3,872 |
|
- |
552 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | Through Hole, Right Angle |
|
|
5522233805FLED CBI 5MM BI-LEVEL BKLT YW RA |
1,050 |
|
- |
552 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | Through Hole, Right Angle |
|
|
5690201111FLED CBI 3MM 2X2 RED RA |
4,636 |
|
Datasheet | 569 | Bulk | Active | Red (x 4) | 635nm | 2 High x 2 Wide | 2mA | 1.6mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 1.7V | Through Hole, Right Angle |
