Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5660206FLED CBI 2MMX5MM GREEN RA PC MNT |
4,632 |
|
Datasheet | 566 | Bulk | Active | Green | 565nm | Single | 20mA | 4mcd | 110° | Diffused, Tinted | Rectangle with Flat Top | - | 2.2V | Through Hole, Right Angle |
|
5552401FLED 2MM RT ANGLE YELLOW PC MNT |
2,611 |
|
Datasheet | 555 | Bulk | Active | Yellow | 583nm | Single | 20mA | 2mcd | 40° | Clear | - | - | 2.2V | Through Hole, Right Angle |
|
5504013FLED CBI 5MM RED/GRN/BLU RA |
2,163 |
|
Datasheet | 550 | Bulk | Active | Red, Green, Blue (RGB) | 470nm, 634nm, 525nm | Single | 20mA Red, 20mA Green, 20mA Blue | 2500mcd Red, 4250mcd Green, 1900mcd Blue | - | - | Round with Domed Top | 5mm, T-1 3/4 | 2.2V Red, 3.2V Green, 3.2V Blue | Through Hole, Right Angle |
|
|
5533511600FLED CBI 3MM BI-LVL GRN/RED RA |
1,979 |
|
Datasheet | 553 | Bulk | Active | Green, Red | 565nm, 630nm | 2 High | 20mA Green, 20mA Red | 19mcd Green, 19mcd Red | 75° | - | Round with Domed Top | - | 2.1V Green, 2V Red | Through Hole, Right Angle |
|
5530113FLED CBI 3MM BI-LVL RED/YLW RA |
2,782 |
|
Datasheet | 553 | Bulk | Active | Red (x 1), Yellow (x 1) | 635nm, 585nm | 2 High | 10mA | 10mcd | 45° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2V Red, 2.1V Yellow | Through Hole, Right Angle |
|

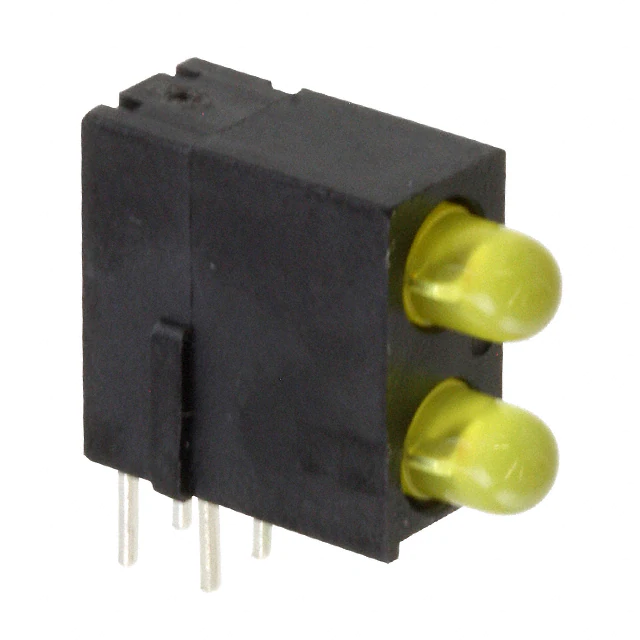

5530233400FLED CBI 3MM BI-LVL YELLOW RA |
2,407 |
|
Datasheet | 553 | Bulk | Active | Yellow (x 2) | 591nm | 2 High | 20mA | 5mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 1.8V | Through Hole, Right Angle |
|
5530212FLED CBI 3MM BI-LVL GRN/RED RA |
1,101 |
|
Datasheet | 553 | Bulk | Active | Green (x 1), Red (x 1) | 565nm, 635nm | 2 High | 2mA | 1.6mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 1.9V Green, 1.7V Red | Through Hole, Right Angle |
|
|
KB-A100SURKWLED LGT BAR 8.89X3.81MM RED |
1,283 |
|
Datasheet | - | Tube | Active | Red | 645nm | Bar - Single, DIP | 185mA | 75mcd | - | Diffused, White | Rectangle with Flat Top | 8.89mm x 3.81mm | 1.95V | Through Hole |
|
|
5922525313NFLED CBI BI-LVL ORNG SMD RA |
2,112 |
|
Datasheet | 592 | Tape & Reel (TR) | Active | Orange (x 2) | 610nm | 2 High | 10mA | 81mcd | - | - | Round with Domed Top | - | 2V | Surface Mount, Right Angle |
|
|
5922320313NFLED CBI BI-LVL GRN/RED SMD RA |
1,714 |
|
Datasheet | 592 | Tape & Reel (TR) | Active | Green (x 1), Red (x 1) | 572nm, 635nm | 2 High | 10mA | 18mcd Green, 12mcd Red | - | - | Round with Domed Top | - | 2V Green, 2V Red | Surface Mount, Right Angle |
|
5640700444FLED CBI 3X1 GREEN/YLW RA PC MNT |
1,232 |
|
Datasheet | 564 | Bulk | Active | Green, Yellow (x 3) | 565nm, 585nm | 3 High | 20mA | 6.3mcd Green, 4.3mcd Yellow | 80° | Diffused | - | - | 2.1V | Through Hole, Right Angle |
|
5554001FLED CBI 2MM QUAD RED RA |
4,019 |
|
Datasheet | 555 | Bulk | Active | Red (x 4) | 650nm | 4 Wide | 20mA | 1.2mcd | 40° | Clear | Round with Domed Top | 2.00mm Dia | 1.6V | Through Hole, Right Angle |
|
593303030313FLED CBI PRISM |
3,402 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - |
|
QBL7OA80D-MP4BLED CBI 3MM ORNG DIFF RA |
3,950 |
|
Datasheet | QBL7XX80D-MP4B | Bag | Active | Orange | 603nm | Single | 20mA | 30mcd | 80° | Diffused | Round with Domed Top | 3.00mm Dia | 2V | Through Hole, Right Angle |
|
H178CRDLED CBI 5MM RED TH PC MNT |
4,547 |
|
Datasheet | - | Tray | Active | Red | 700nm | Single | 20mA | 2mcd | 45° | Diffused | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | Through Hole |
|
H101CYDLED CBI 3MM YELLOW TH PC MNT |
1,885 |
|
Datasheet | - | Tray | Active | Yellow | 590nm | Single | 20mA | 20mcd | 40° | Diffused | Round with Domed Top | 3mm, T-1 | 2V | Through Hole |
|

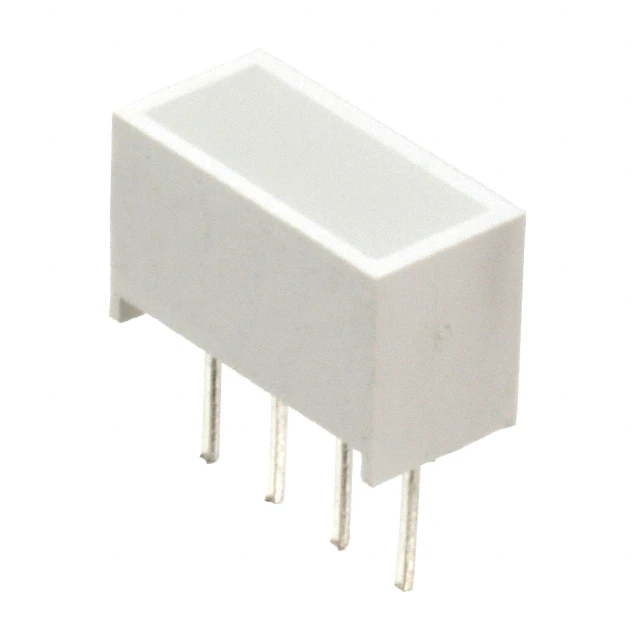

LTL-2500GLED LGT BAR 8.89X3.81MM GRN |
2,785 |
|
Datasheet | - | Tube | Active | Green | 565nm | Bar - Single, DIP | 100mA | 4.2mcd | - | Diffused | Rectangle with Flat Top | 8.89mm x 3.81mm | 2.1V | Through Hole |
|
H178CBC-3LED CBI 5MM GRN/RED THROUGH HOLE |
3,268 |
|
Datasheet | - | Tray | Active | Green, Red | 568nm, 625nm | Single | 20mA | 35mcd Green, 35mcd Red | 40° | Diffused, White | Round with Domed Top | 5mm, T-1 3/4 | 2.1V Green, 2V Red | Through Hole |
|
5530202200FLED CBI 3MM BI-LVL GRN/BLANK RA |
2,987 |
|
Datasheet | 553 | Bulk | Active | Green (x 1), Blank (x 1) | 565nm | 2 High | 2mA | 1.6mcd | 60° | Diffused, Tinted | - | - | 1.9V | Through Hole, Right Angle |
|
5500804FLED CBI 5MM YELLOW TH PC MNT |
4,133 |
|
Datasheet | 550 | Bulk | Active | Yellow | 583nm | Single | 10mA | 8mcd | 60° | Diffused | Round with Domed Top | 5mm, T-1 3/4 | 5V | Through Hole |
