Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSF-LXH534SIDLED CBI 3X2MM QUAD RED RA |
1,950 |
|
Datasheet | - | Bulk | Active | Red (x 4) | 636nm | 4 High | 30mA | 120mcd | 100° | Diffused, Tinted | Rectangle with Flat Top | 3.00mm x 2.00mm | 2.0V | Through Hole, Right Angle |
|
SSB-LX2450SYWLED LGT BAR 19.05X3.81MM YLW |
2,000 |
|
Datasheet | - | Tube | Active | Yellow | 590nm | Bar - Single, SIP | 20mA | 200mcd | 160° | Diffused, White | Rectangle with Flat Top | 19.05mm x 3.81mm | 2V | Through Hole |
|
|
SSA-LXH1025G8Y1I1DLED CBI 5X2.5MM 10-SEG GN/R/YL |
1,370 |
|
Datasheet | - | Bulk | Active | Green, Red, Yellow | 565nm, 585nm, 635nm | Bar - 10 Wide, SIP | 20mA Green, 20mA Red, 20mA Yellow | 10mcd Green, 15mcd Red, 10mcd Yellow | 110° | Diffused, Green, Red, Yellow | Rectangle with Flat Top | 5.00mm x 2.50mm | 2.2V Green, 2V Red, 2.1V Yellow | Through Hole |
|
|
SSF-LXH5147SIDLED CBI 1.8MM QUAD RED RA |
760 |
|
Datasheet | - | Bulk | Active | Red (x 4) | 636nm | 4 High | 20mA | 120mcd | 70° | Diffused, Red | Round with Domed Top | 1.80mm Dia | 2V | Through Hole, Right Angle |
|
|
SSA-LXB10GW-RALED CBI 5X1.74MM 10-SEG GRN VERT |
275 |
|
Datasheet | - | Bulk | Active | Green | 565nm | Bar - 10 Wide, DIP | 20mA | 8mcd | 160° | Diffused, White | Rectangle with Flat Top | 5.00mm x 1.74mm | 2.2V | Through Hole |
|

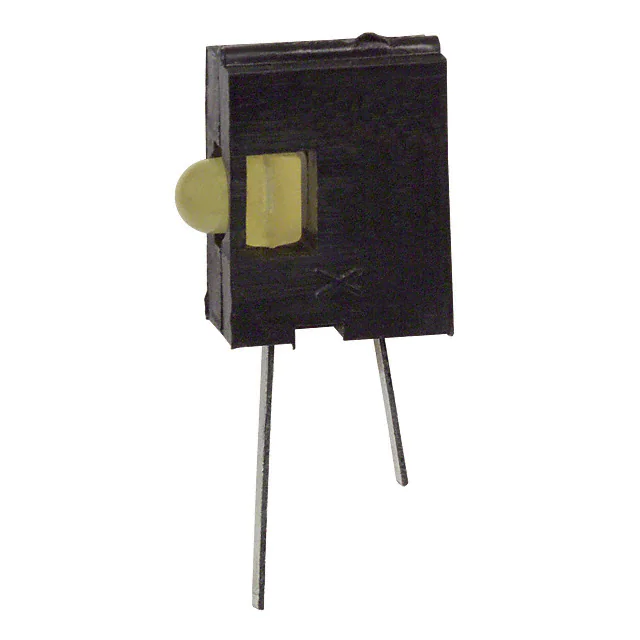

SSF-LXH555YDLED CBI 1.8MM YELLOW RA |
8,230 |
|
Datasheet | - | Bulk | Obsolete | Yellow | 585nm | Single | 20mA | 8mcd | 60° | Diffused, Tinted | Round with Domed Top | 1.80mm Dia | 2.1V | Through Hole, Right Angle |
|

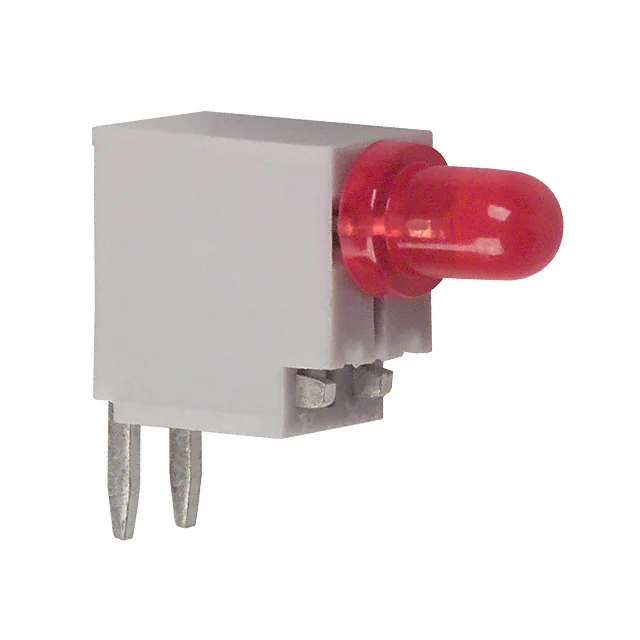

SSF-LXH4RAIDLED CBI 3MM RED RA PC MNT |
1,773 |
|
Datasheet | - | Bulk | Active | Red | 635nm | Single | 20mA | 40mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.1V | Through Hole, Right Angle |
|

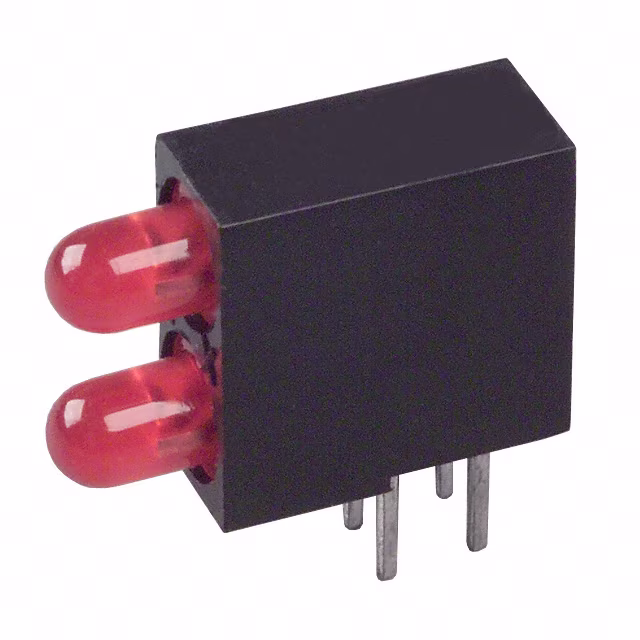

SSF-LXH2103LIID/4LED CBI 3MM BI-LVL RED RA |
189 |
|
Datasheet | - | Bulk | Active | Red (x 2) | 635nm | 2 High | 20mA | 40mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2V | Through Hole, Right Angle |
|
SSF-LXH25780IDLED LGT BAR 7X2.5MM RA GRN DIFF |
2,118 |
|
Datasheet | - | Bulk | Active | Red | 635nm | Bar - Single, SIP | 20mA | 15mcd | 110° | Diffused, Tinted | Rectangle with Flat Top | 7.00mm x 2.50mm | 2V | Through Hole, Right Angle |
|
SSB-LX2500SGWLED LT BAR 5X10MM 2CHIP GRN DIFF |
574 |
|
Datasheet | - | Bulk | Active | Green | 565nm | Bar - Single, SIP | 25mA | 25mcd | 160° | Diffused, White | Rectangle with Flat Top | 10.00mm x 5.00mm | 2.2V | Through Hole |
