Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

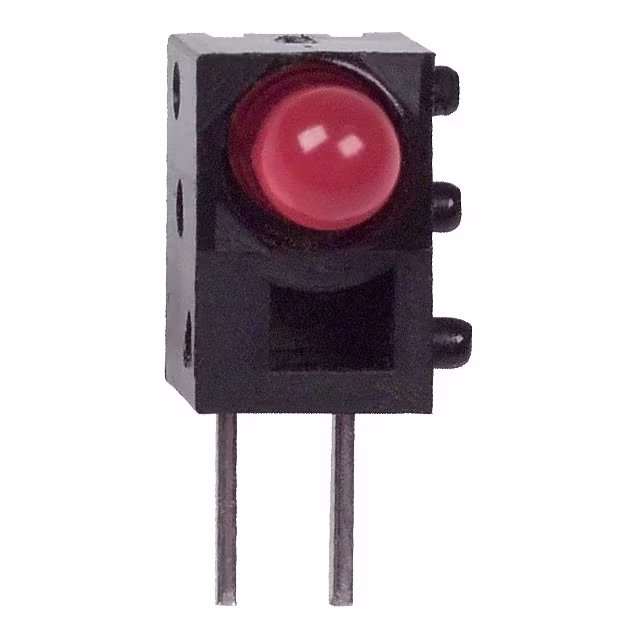

CMW01RLED CBI 3MM RED DIFF RA |
2,908 |
|
Datasheet | - | Bulk | Obsolete | Red | 625nm | Single | 20mA | 20mcd | 130° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2V | Through Hole, Right Angle |
|
CMW01YLED CBI 3MM YELLOW DIFF RA |
4,409 |
|
Datasheet | - | Bulk | Obsolete | Yellow | 590nm | Single | 20mA | 12.5mcd | 120° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.1V | Through Hole, Right Angle |
|

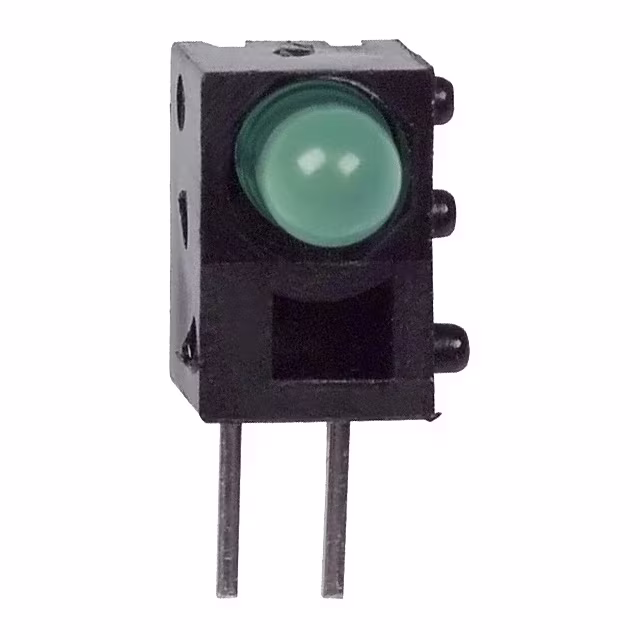

CMW01GLED CBI 3MM GREEN DIFF RA |
4,321 |
|
Datasheet | - | Bulk | Obsolete | Green | 565nm | Single | 20mA | 12.5mcd | 120° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.2V | Through Hole, Right Angle |
|
CMR01GLED LGT BAR GREEN RECT MOD RA |
3,378 |
|
Datasheet | CMR | Bulk | Obsolete | Green | 565nm | Bar - Single, SIP | 20mA | 8mcd | 110° | Diffused, Tinted | Rectangle with Flat Top | - | 2.2V | Through Hole, Right Angle |
|
|
CMS01RLED LGT BAR RED RECT MOD VERT |
2,928 |
|
Datasheet | CMS | Bulk | Obsolete | Red | 625nm | Bar - Single, SIP | 20mA | 12.5mcd | 110° | Diffused, Tinted | Rectangle with Flat Top | - | 2V | Through Hole |
|
|
CMS01YLED LGT BAR YL RECT MOD VERT |
3,505 |
|
Datasheet | CMS | Bulk | Obsolete | Yellow | 590nm | Bar - Single, SIP | 20mA | 8mcd | 110° | Diffused, Tinted | Rectangle with Flat Top | - | 2.1V | Through Hole |
|
|
CMS01GLED LGT BAR GRN RECT MOD VERT |
3,743 |
|
Datasheet | CMS | Bulk | Obsolete | Green | 565nm | Bar - Single, SIP | 20mA | 8mcd | 110° | Diffused, Tinted | Rectangle with Flat Top | - | 2.2V | Through Hole |
|
6321F1LED CBI 3MM RED THROUGH HOLE |
3,201 |
|
Datasheet | 6321F | Bulk | Obsolete | Red | 635nm | Single | 10mA | 10mcd | - | Tinted | Round with Domed Top | 3mm, T-1 | 1.9V | Through Hole |
|

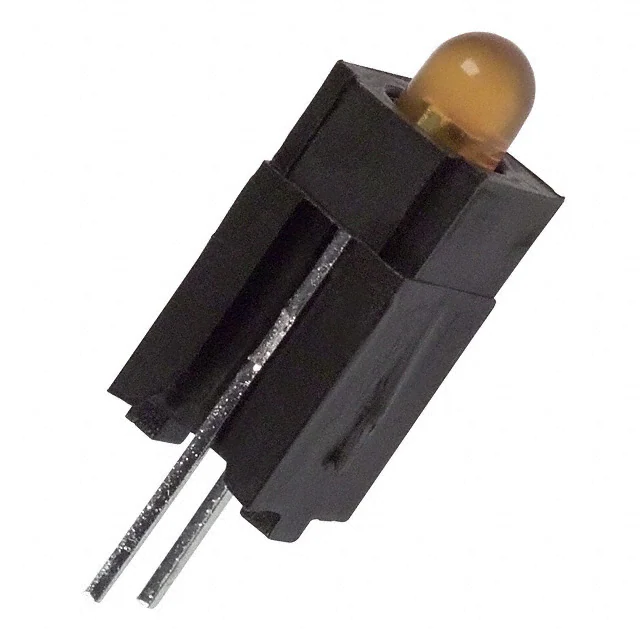

6321F7LED CBI 3MM YELLOW THROUGH HOLE |
3,777 |
|
Datasheet | 6321F | Bulk | Obsolete | Yellow | 583nm | Single | 10mA | 10mcd | - | Tinted | Round with Domed Top | 3mm, T-1 | 2V | Through Hole |
|

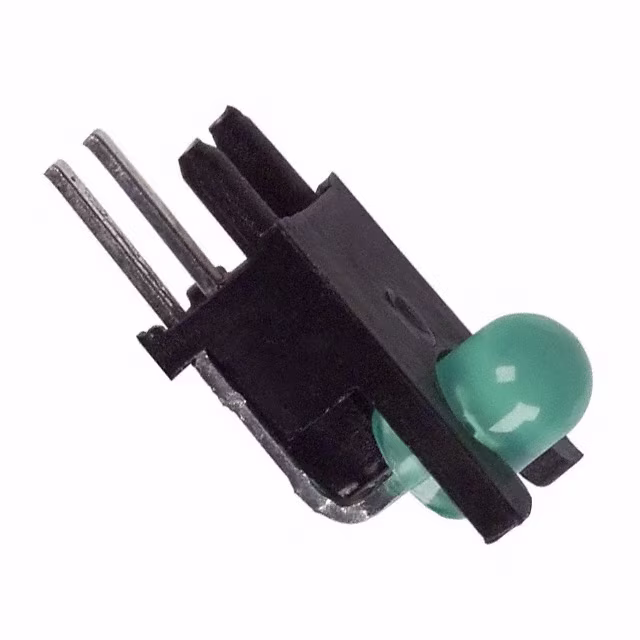

5322F5LED CBI T-1 .25" GREEN RA |
4,280 |
|
Datasheet | 5322 | Bulk | Obsolete | Green | 562nm | Single | 10mA | 16mcd | - | Diffused, Tinted | Round with Domed Top | T-1 | 2.2V | Through Hole, Right Angle |
|

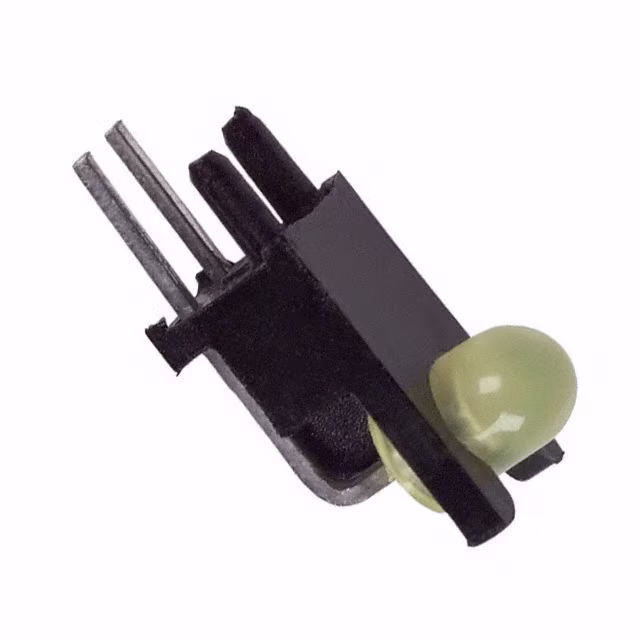

5322F7LED CBI T-1 .25" YELLOW RA |
1,069 |
|
Datasheet | 5322 | Bulk | Obsolete | Yellow | 585nm | Single | 10mA | 6.3mcd | - | Diffused, Tinted | Round with Domed Top | T-1 | 2.1V | Through Hole, Right Angle |
|
5320F1LED CBI T-1 RED RA |
3,508 |
|
Datasheet | 5320 | Bulk | Obsolete | Red | 650nm | Single | 10mA | 10mcd | - | Diffused, Tinted | Round with Domed Top | T-1 | 2V | Through Hole, Right Angle |
|
5320F5LED CBI T-1 GREEN RA ASSY |
1,333 |
|
Datasheet | 5320 | Bulk | Obsolete | Green | 562nm | Single | 10mA | 16mcd | - | Diffused, Tinted | Round with Domed Top | T-1 | 2.2V | Through Hole, Right Angle |
|

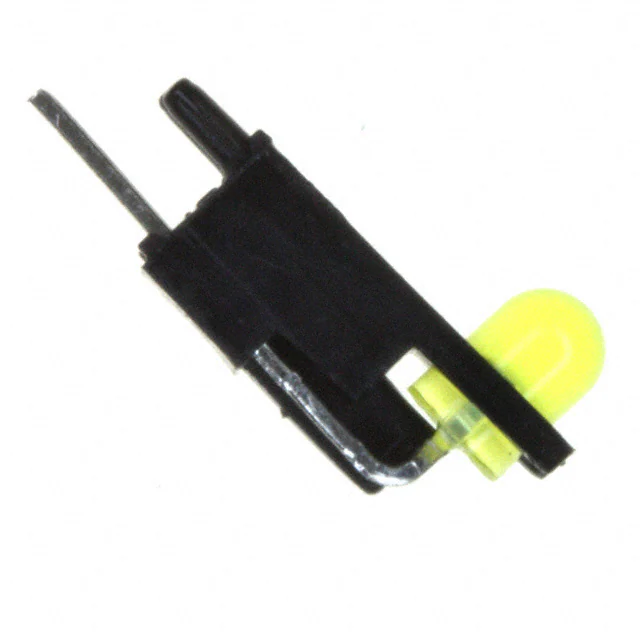

5320F7LED CBI T-1 YELLOW RA |
3,141 |
|
Datasheet | 5320 | Bulk | Obsolete | Yellow | 585nm | Single | 10mA | 6.3mcd | - | Diffused, Tinted | Round with Domed Top | T-1 | 2.1V | Through Hole, Right Angle |
|

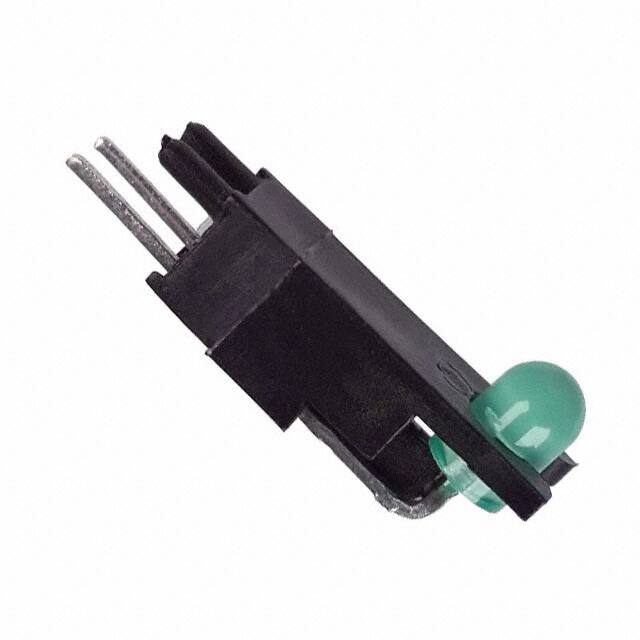

5321F5LED CBI T-1 GREEN RA ASSY |
2,708 |
|
Datasheet | 5321 | Bulk | Obsolete | Green | 562nm | Single | 10mA | 16mcd | - | Diffused, Tinted | Round with Domed Top | T-1 | 2.2V | Through Hole, Right Angle |
|
5693F1_1_1-ALED CBI 3MM 3X1 RED RA |
3,118 |
|
Datasheet | 5693F-A | Bulk | Obsolete | Red (x 3) | 650nm | 3 High | 10mA | 10mcd | - | - | Round with Domed Top | 3mm, T-1 | 2V | Through Hole, Right Angle |
|
5694F1_1_1_1-ALED CBI 3MM QUAD RED RA |
2,466 |
|
- |
5694F-A | Bulk | Obsolete | Red (x 4) | 635nm | 4 High | 10mA | 10mcd | - | - | Round with Domed Top | 3mm, T-1 | 2.2V | Through Hole, Right Angle |
|
5694F5_5_5_5-ALED CBI 3MM QUAD GRN RA |
1,975 |
|
- |
5694F-A | Bulk | Obsolete | Green (x 4) | 565nm | 4 High | 10mA | 8.5mcd | - | - | Round with Domed Top | 3mm, T-1 | 2.3V | Through Hole, Right Angle |
|
5694F7_7_7_7-ALED CBI 3MM QUAD YELLOW RA |
1,480 |
|
- |
5694F-A | Bulk | Obsolete | Yellow (x 4) | 583nm | 4 High | 10mA | 10mcd | - | - | Round with Domed Top | 3mm, T-1 | 2.2V | Through Hole, Right Angle |
|
5305H1/5LED CBI 5MM GRN/RED RA PCB |
4,473 |
|
Datasheet | 5305 | Bulk | Obsolete | Green, Red | 565nm, 650nm | Single | 10mA | 10mcd Green, 6.3mcd Red | - | Diffused, White | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | Through Hole, Right Angle |
