Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5502204004FLED CBI 5MM QUAD GRN DIFF VERT |
3,810 |
|
Datasheet | 550 | Bulk | Active | Green (x 4) | 563nm | 4 Wide | 10mA | 2.2mcd | - | Diffused | Round with Domed Top | 5mm, T-1 3/4 | 3V | Through Hole |
|
|
5502304004FLED CBI 5MM QUAD YL THROUGH HOLE |
2,124 |
|
Datasheet | 550 | Bulk | Active | Yellow (x 4) | - | 4 Wide | 10mA | 8mcd | - | Diffused | Round with Domed Top | 5mm, T-1 3/4 | - | Through Hole |
|
|
5502404004FLED CBI 5MM RED DIFF VERT QUAD |
2,190 |
|
Datasheet | 550 | Bulk | Active | Red (x 4) | 650nm | 4 Wide | 10mA | 6.3mcd | - | Diffused | Round with Domed Top | 5mm, T-1 3/4 | - | Through Hole |
|
|
5502404807FLED CBI 5MM SGL RED DIFF VERT TH |
3,577 |
|
Datasheet | 550 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | Through Hole |
|
|
593242424313NFLED CBI 3X1 YELLOW SMD RA |
2,315 |
|
Datasheet | 593 | Tape & Reel (TR) | Active | Yellow (x 3) | - | 3 High | 20mA | 66mcd | - | - | Round with Domed Top | - | 2V | Surface Mount, Right Angle |
|
|
5922323402SNFLED CBI BI-LVL GRN SMD RA |
3,843 |
|
- |
592 | Strip | Obsolete | Green (x 2) | 572nm | 2 High | 10mA | 18mcd | - | - | Round with Domed Top | - | 2V | Surface Mount, Right Angle |
|
|
FLP2FV10.0-SURLED CBI 3MM RED THROUGH HOLE |
3,273 |
|
Datasheet | FLP2 | Bag | Active | Red | - | - | - | - | - | Clear | Round with Domed Top | 3.00mm Dia | 1.8V | Through Hole |
|

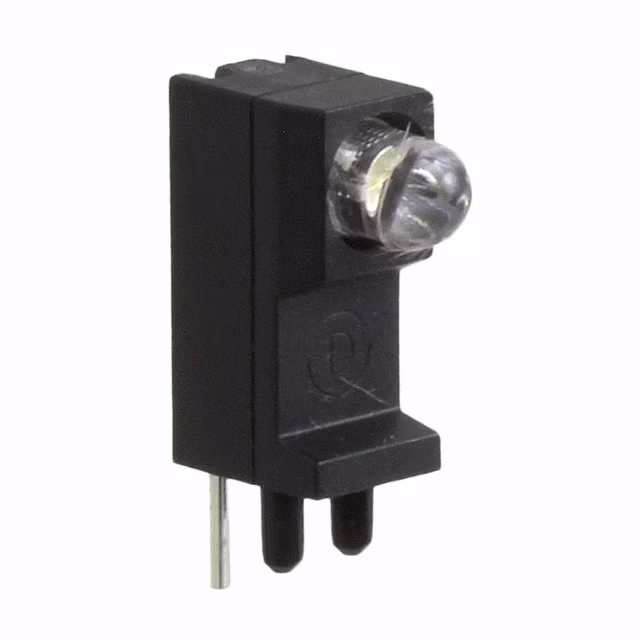

5514104801FLED CBI 3MM RA |
3,838 |
|
Datasheet | 551 | Bulk | Active | - | - | - | - | - | - | - | Round with Domed Top | 3.00mm Dia | - | Through Hole, Right Angle |
|
|
5530112202FLED CBI 3MM BI-LVL GRN/RED RA |
4,368 |
|
Datasheet | 553 | Bulk | Active | Green (x 1), Red (x 1) | 563nm, 650nm | 2 High | 10mA | 16mcd Green, 10mcd Red | 45° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.1V Green, 2V Red | Through Hole, Right Angle |
|
|
5530112212FLED CBI 3MM BI-LVL GRN/RED RA |
1,329 |
|
Datasheet | 553 | Bulk | Active | Green (x 1), Red (x 1) | 563nm, 650nm | 2 High | 10mA | 16mcd Green, 10mcd Red | 45° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 2.1V Green, 2V Red | Through Hole, Right Angle |
|
|
5530122815FLED CBI 3MM BI-LVL GRN .185" RA |
4,540 |
|
- |
553 | Bulk | Active | Green (x 2) | 563nm | 2 High | 10mA | 16mcd | - | Diffused, Tinted | Round with Domed Top | 3.00mm Dia | 2.1V | Through Hole, Right Angle |
|
|
5923131814SFLED CBI |
1,716 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
R13-8.0-REDLED CBI 5MM RED THROUGH HOLE |
1,960 |
|
Datasheet | ORCAdapt™ | Bag | Active | Red | - | - | 50mA | 6000mcd | 45° | Clear | Round with Domed Top | 5mm, T-1 3/4 | 2.4V | Through Hole |
|
|
5913401827FLED CBI 3MM BLU/RED SMD RA |
3,650 |
|
- |
591 | Strip | Active | Blue, Red | - | Single | 20mA Blue, 20mA Red | 5mcd Blue, 30mcd Red | - | - | Square with Flat Top | - | 3.9V Blue, 1.9V Red | Surface Mount, Right Angle |
|
|
5682211132FLED CBI 3MM QUAD GRN/RED/YL RA |
3,374 |
|
Datasheet | 568 | Bulk | Active | Green (x 1), Red (x 2), Yellow (x 1) | 565nm, 635nm, 585nm | 4 High | 30mA Green, 30mA Red, 20mA Yellow | 50mcd Green, 29mcd Red, 30mcd Yellow | 45° | Tinted | Round with Domed Top | 3mm, T-1 | 2.1V Green, 2V Red, 2.1V Yellow | Through Hole, Right Angle |
|
|
5682212803FLED CBI 3MM 4X1 BACKLGT RA |
4,917 |
|
Datasheet | 568 | Bulk | Active | - | - | - | - | - | - | - | Round with Domed Top | 3.00mm Dia | - | Through Hole, Right Angle |
|
|
5682231111FLED CBI 3MM QUAD RED RA |
1,465 |
|
Datasheet | 568 | Bulk | Active | Red (x 4) | 635nm, 585nm | 4 High | 20mA | 29mcd | 45° | Tinted | Round with Domed Top | 3.00mm Dia | 2V | Through Hole, Right Angle |
|
|
5682231131FLED CBI 3MM QUAD RED/YELLOW RA |
3,574 |
|
Datasheet | 568 | Bulk | Active | Red (x 3), Yellow (x 1) | 635nm, 585nm | 4 High | 30mA Red, 20mA Yellow | 29mcd Red, 30mcd Yellow | 45° | Tinted | Round with Domed Top | 3mm, T-1 | 2V Red, 2.1V Yellow | Through Hole, Right Angle |
|
|
5682231222FLED CBI 3MM QUAD GREEN/RED RA |
4,476 |
|
Datasheet | 568 | Bulk | Active | Green (x 3), Red (x 1) | 565nm, 635nm | 4 High | 30mA Green, 30mA Red | 50mcd Green, 29mcd Red | 45° | Tinted | Round with Domed Top | 3.00mm Dia | 2.1V Green, 2V Red | Through Hole, Right Angle |
|
|
5682231311FLED CBI 3MM QUAD RED/YELLOW RA |
2,658 |
|
Datasheet | 568 | Bulk | Active | Red (x 3), Yellow (x 1) | 635nm, 585nm | 4 High | 30mA Red, 20mA Yellow | 29mcd Red, 30mcd Yellow | 45° | Tinted | Round with Domed Top | 3mm, T-1 | 2V Red, 2.1V Yellow | Through Hole, Right Angle |
