Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL501-1R12LED CBI 5MM ORNG-RED RA |
1,000 |
|
Datasheet | PL501 | Bulk | Active | Orange-Red | 635nm | Single | 20mA | 39mcd | 30° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | Through Hole, Right Angle |
|

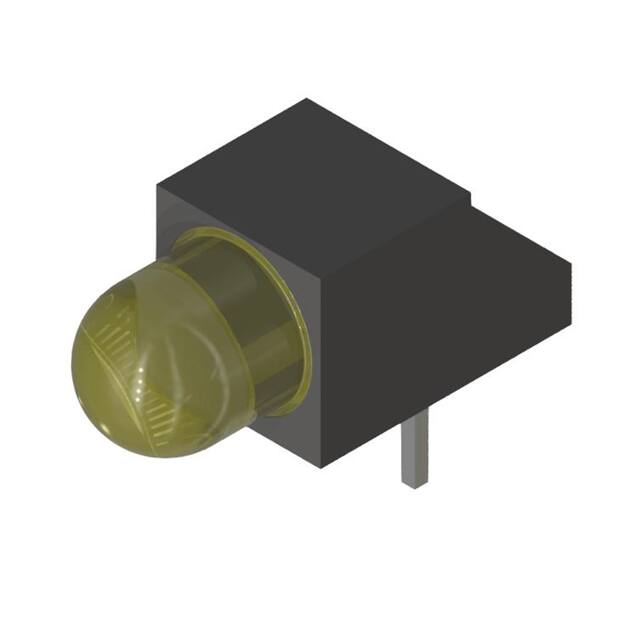

PL505-1Y01LED CBI 5MM YELLOW RA |
1,000 |
|
Datasheet | PL505 | Bulk | Active | Yellow | 585nm | Single | 20mA | 33mcd | 30° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | Through Hole, Right Angle |
|
PL506-1R12LED CBI 5MM ORNG-RED RA |
1,000 |
|
Datasheet | PL506 | Bulk | Active | Orange-Red | 635nm | Single | 20mA | 29mcd | 30° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | Through Hole, Right Angle |
|
PL506-1Y01LED CBI 5MM YELLOW RA |
1,000 |
|
Datasheet | PL506 | Bulk | Active | Yellow | 585nm | Single | 20mA | 24mcd | 30° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | Through Hole, Right Angle |
|
PL505-1R12LED CBI 5MM ORNG-RED RA |
1,000 |
|
Datasheet | PL505 | Bulk | Active | Orange-Red | 635nm | Single | 20mA | 39mcd | 30° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | Through Hole, Right Angle |
|
PL505-4Y01LED CBI 5MM 1X4 YELLOW RA |
198 |
|
Datasheet | PL505 | Bulk | Active | Yellow | 585nm | 1 High x 4 Wide | 20mA | 33mcd | 30° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | Through Hole, Right Angle |
|
PL505-4R12LED CBI 5MM 1X4 ORNG-RED RA |
188 |
|
Datasheet | PL505 | Bulk | Active | Orange-Red | 635nm | 1 High x 4 Wide | 20mA | 39mcd | 30° | Diffused, Tinted | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | Through Hole, Right Angle |
|
PL301-1B20LED CBI 3MM BLU RA |
1,276 |
|
Datasheet | PL301 | Bulk | Active | Blue | 465nm | Single | 20mA | 100mcd | 55° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 3.2V | Through Hole, Right Angle |
|
PL314A1-16R12LED CBI 3MM 4X4 ORNG-RED RA |
2,348 |
|
Datasheet | - | Bulk | Active | Orange-Red | 635nm | 4 High x 4 Wide | 20mA | 10mcd | 55° | - | Round with Domed Top | 3mm, T-1 | 2.1V | Through Hole, Right Angle |
|
PL314A1-16Y01LED CBI 3MM 4X4 YELLOW RA |
1,798 |
|
Datasheet | - | Bulk | Active | Yellow | 585nm | 4 High x 4 Wide | 20mA | 10mcd | 55° | - | Round with Domed Top | 3mm, T-1 | 2.1V | Through Hole, Right Angle |
