Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

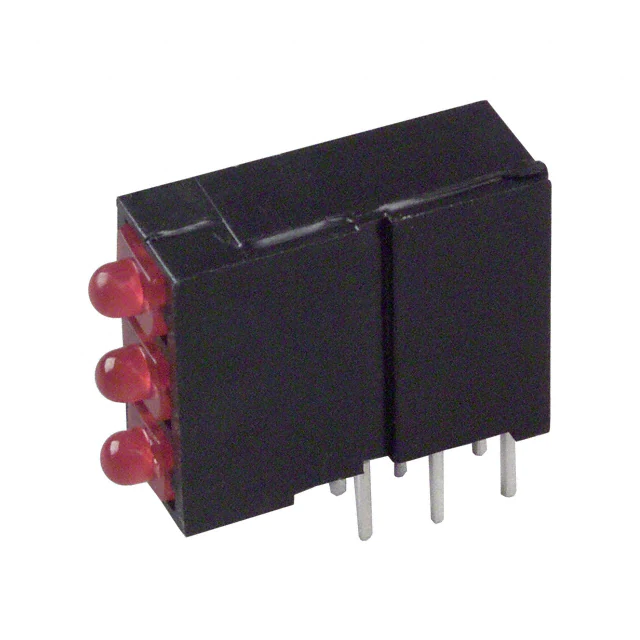

5700100111FLED CBI 2MM 3X1 RED RA |
291 |
|
Datasheet | 570 | Bulk | Active | Red (x 3) | 635nm | 3 High | 20mA | 12.6mcd | 38° | Diffused, Tinted | Round with Domed Top | 2.00mm Dia | 2V | Through Hole, Right Angle |
|

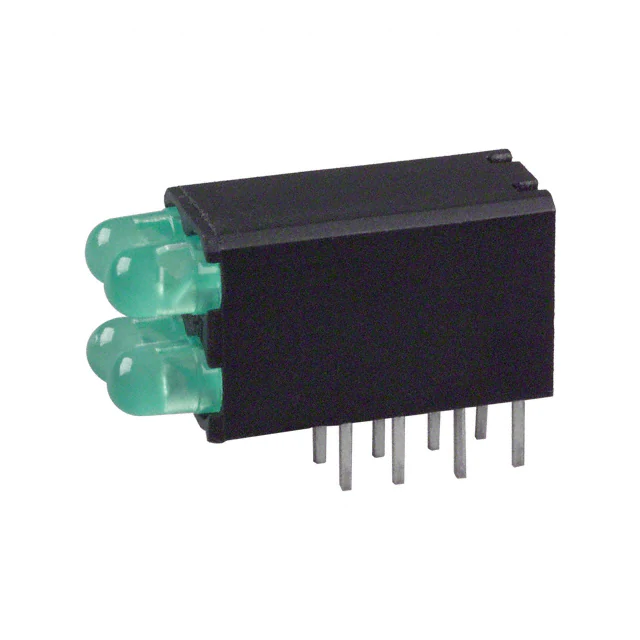

5690102222FLED CBI 3MM 2X2 GREEN RA |
2,552 |
|
Datasheet | 569 | Bulk | Active | Green (x 4) | 565nm | 2 High x 2 Wide | 20mA | 12.6mcd | 60° | Diffused, Tinted | - | - | 2.1V | Through Hole, Right Angle |
|
XGMDKX10DLED CBI 5.08X1.78MM 10SEG R VERT |
256 |
|
Datasheet | - | Tube | Active | Red | 645nm | Bar - 10 Wide, DIP | 10mA | 99.99mcd | - | - | Rectangle with Flat Top | 5.08mm x 1.78mm | 1.85V | Through Hole |
|
HLMP-2855LED LT BAR 8.89X8.89MM SGL GREEN |
2,279 |
|
Datasheet | HLMP-2855 | Tube | Active | Green | 565nm | Bar - Single, DIP | 30mA | 50mcd | - | - | Square with Flat Top | 8.89mm | 2.2V | Through Hole |
|
DC10YWALED CBI 5.08X1.78MM 10SEG Y VERT |
1,803 |
|
Datasheet | - | Tube | Active | Yellow (x 10) | 590nm | Bar - 10 Wide, DIP | 30mA | 9mcd | - | Diffused, White | Rectangle with Flat Top | 5.08mm x 1.78mm | 2.1V | Through Hole |
|
DC10EWALED CBI 10-SEG RED THROUGH HOLE |
559 |
|
Datasheet | - | Tube | Active | Red (x 10) | 627nm | Bar - 10 Wide, DIP | 30mA | 9mcd | - | Diffused, White | - | - | 2V | Through Hole |
|
5640100129FLED CBI 3MM 3X1 BLU/GRN/RED RA |
151 |
|
Datasheet | 564 | Bulk | Active | Blue (x 1), Green (x 1), Red (x 1) | 468nm, 565nm, 635nm | 3 High | 30mA Blue, 30mA Green, 30mA Red | 57mcd Blue, 12.6mcd Green, 10mcd Red | 100° Blue, 60° Green, 60° Red | Diffused | Round with Domed Top | 3.00mm Dia | 3.2V Blue, 2.1V Green, 2V Red | Through Hole, Right Angle |
|

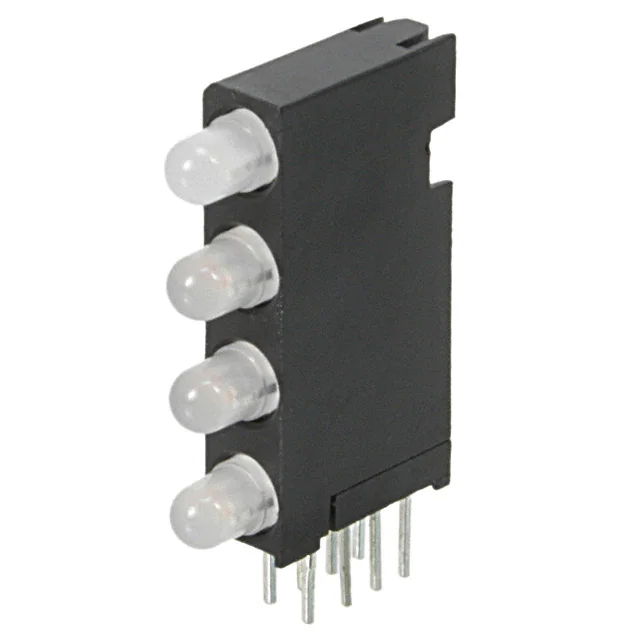

5680701444FLED CBI 3MM QUAD GRN/RED/YLW RA |
310 |
|
Datasheet | 568 | Bulk | Active | Green, Red (x 1), Green, Yellow (x 3) | 565nm, 635nm, 585nm | 4 High | 30mA Green, 30mA Red, 20mA Yellow | 10mcd Green, 4.7mcd Red, 6.3mcd Green, 4.3mcd Yellow | 60° Green-Red, 80° Green-Yellow | Diffused | Round with Domed Top | 3mm, T-1 | 2.1V Green, 2V Red, 2.1V Yellow | Through Hole, Right Angle |
|

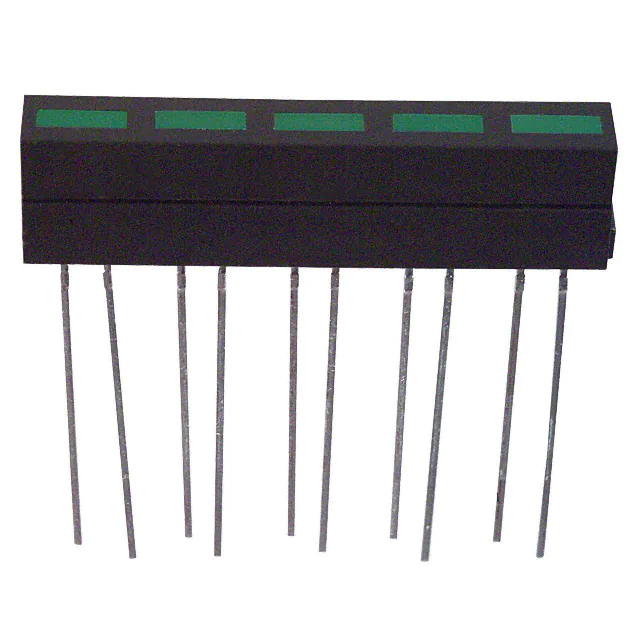

SSA-LXB525GDLED CBI 5.3X1.8MM 5-SEG GRN VERT |
1,247 |
|
Datasheet | - | Bulk | Active | Green (x 5) | 565nm | Bar - 5 Wide, SIP | 25mA | 10mcd | 110° | Diffused, Tinted | Rectangle with Flat Top | 5.30mm x 1.80mm | 2.2V | Through Hole |
|
HLMP-2820LED LT BAR 8.89X3.81MM QUAD GRN |
1,648 |
|
Datasheet | HLMP-2820 | Tube | Active | Green (x 4) | 565nm | Bar - 4 Wide, DIP | 30mA | 25mcd | - | - | Rectangle with Flat Top | 8.89mm x 3.81mm | 2.2V | Through Hole |
|
5640200132FLED CBI 3MM 3X1 GREEN/RED/YLW RA |
684 |
|
Datasheet | 564 | Bulk | Active | Green (x 1), Red (x 1), Yellow (x 1) | 565nm, 635nm, 585nm | 3 High | - | 1.6mcd Green, 1.6mcd Red, 1.6mcd Yellow | 60° | - | - | - | 1.9V Green, 1.7V Red, 1.8V Yellow | Through Hole, Right Angle |
|
|
5640200333FLED CBI 3MM 3X1 YLW RA |
362 |
|
- |
564 | Bulk | Active | Yellow (x 3) | 585nm | 3 High | 2mA | 1.6mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 1.8V | Through Hole, Right Angle |
|

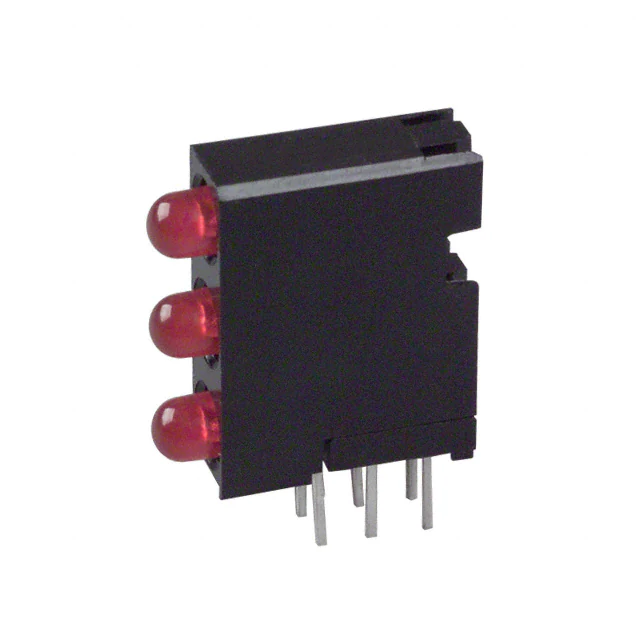

5640200111FLED CBI 3MM 3X1 RED RA PC MNT |
156 |
|
- |
564 | Bulk | Active | Red (x 3) | 635nm | 3 High | 2mA | 1.6mcd | 60° | Diffused, Tinted | - | - | 1.7V | Through Hole, Right Angle |
|
XGUYX10DLED CBI 5.08X1.78MM 10SEG Y VERT |
150 |
|
Datasheet | - | Tube | Active | Yellow (x 10) | 590nm | Bar - 10 Wide, DIP | 30mA | 9mcd | - | - | Rectangle with Flat Top | 5.08mm x 1.78mm | 1.95V | Through Hole |
|
5682F5_5LED CBI 3MM BI-LVL GRN RA |
1,122 |
|
Datasheet | 5682F | Bulk | Active | Green (x 2) | 565nm | 2 High | 10mA | 8.5mcd | - | Tinted | Round with Domed Top | 3mm, T-1 | 2.3V | Through Hole, Right Angle |
|
XGCBDX10DLED CBI 5.08X1.78MM 10SEG BLU TH |
193 |
|
Datasheet | - | Tube | Active | Blue (x 10) | 460nm | Bar - 10 Wide, DIP | 30mA | 9.4mcd | - | - | Rectangle with Flat Top | 5.08mm x 1.78mm | 3V | Through Hole |
|

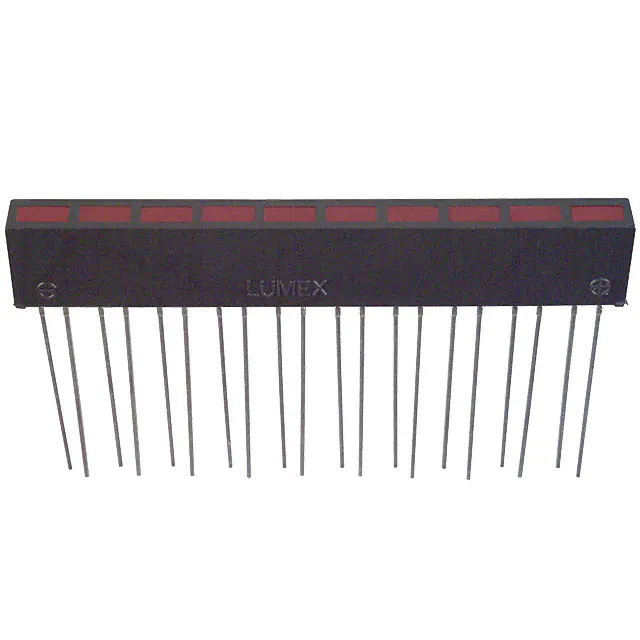

SSA-LXH1025IDLED CBI 5X2.5MM 10-SEG RED VERT |
3,417 |
|
Datasheet | - | Bulk | Active | Red (x 10) | 635nm | Bar - 10 Wide, SIP | 30mA | 10mcd | 110° | Diffused, Tinted | Rectangle with Flat Top | 5.00mm x 2.50mm | 2V | Through Hole |
|

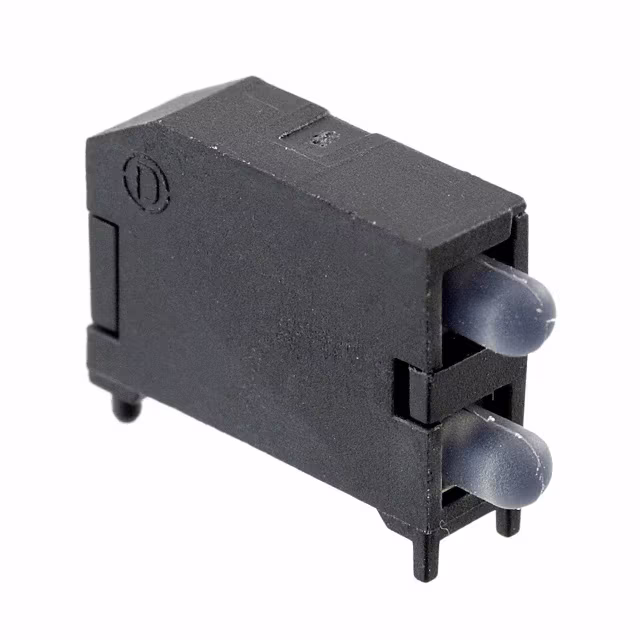

5923131313FLED CBI 3MM BILVL G/Y RA 13" RL |
182 |
|
Datasheet | 592 | Tape & Reel (TR) | Active | Green, Yellow (x 2) | 572nm, 587nm | 2 High | 30mA | 3mcd Green, 2mcd Yellow | - | - | Round with Domed Top | 3.00mm Dia | 2V | Surface Mount, Right Angle |
|

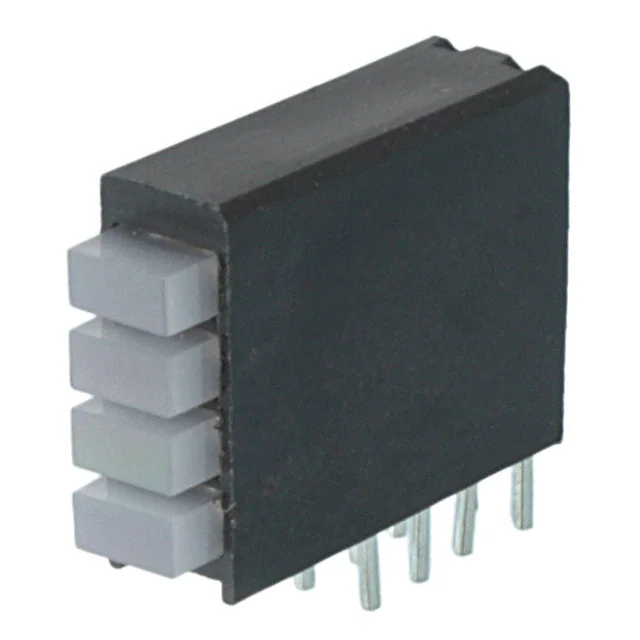

5680724444FLED CBI 4.2X2MM QUAD GRN/YL RA |
624 |
|
Datasheet | 568 | Bulk | Active | Green, Yellow (x 4) | 565nm, 585nm | 4 High | 20mA | 3.7mcd Green, 2.5mcd Yellow | 140° | - | Rectangle with Flat Top | 4.20mm x 2.00mm | 2.1V | Through Hole, Right Angle |
|

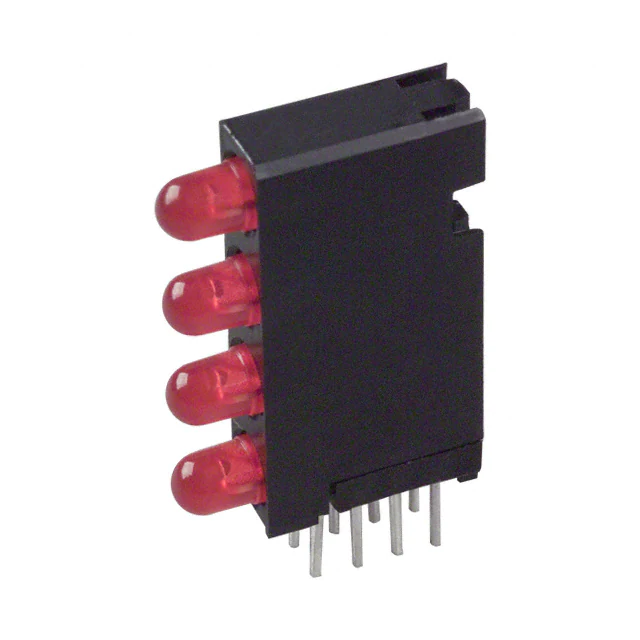

5680201111FLED CBI 3MM QUAD RED RA PC MNT |
325 |
|
Datasheet | 568 | Bulk | Active | Red (x 4) | 635nm | 4 High | 2mA | 1.6mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 1.7V | Through Hole, Right Angle |
