Chip Resistor - Surface Mount
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
TNPW120612K0BYENRES 12K OHM 0.1% 0.52W 1206 |
889 |
|
Datasheet | TNPW e3 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 12 kOhms | ±0.1% | 0.52W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 175°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
|
TNPW120649R9BYENRES 49.9 OHM 0.1% 0.52W 1206 |
880 |
|
Datasheet | TNPW e3 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 49.9 Ohms | ±0.1% | 0.52W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 175°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
|
TNPW120647K0BYENRES 47K OHM 0.1% 0.52W 1206 |
830 |
|
Datasheet | TNPW e3 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 47 kOhms | ±0.1% | 0.52W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 175°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
|
TNPW12063K30BYENRES 3.3K OHM 0.1% 0.52W 1206 |
768 |
|
Datasheet | TNPW e3 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 3.3 kOhms | ±0.1% | 0.52W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 175°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
|
TNPW120630K0BYENRES 30K OHM 0.1% 0.52W 1206 |
765 |
|
Datasheet | TNPW e3 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 30 kOhms | ±0.1% | 0.52W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 175°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
|
TNPW1206200KBYENRES 200K OHM 0.1% 0.52W 1206 |
381 |
|
Datasheet | TNPW e3 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 200 kOhms | ±0.1% | 0.52W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 175°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
|
TNPW120649K9BYENRES 49.9K OHM 0.1% 0.52W 1206 |
2,000 |
|
Datasheet | TNPW e3 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 49.9 kOhms | ±0.1% | 0.52W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 175°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
|
TNPW1206200RBYENRES 200 OHM 0.1% 0.52W 1206 |
144 |
|
Datasheet | TNPW e3 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 200 Ohms | ±0.1% | 0.52W | Thin Film | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | ±10ppm/°C | -55°C ~ 175°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.026" (0.65mm) | 2 | - |
|
WSL1206R2000FTARES 0.2 OHM 1% 1/4W 1206 |
6,927 |
|
Datasheet | WSL | - | Tape & Reel (TR) | Active | 200 mOhms | ±1% | 0.25W, 1/4W | Metal Element | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | ±75ppm/°C | -65°C ~ 170°C | AEC-Q200 | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.89mm) | 2 | - |
|

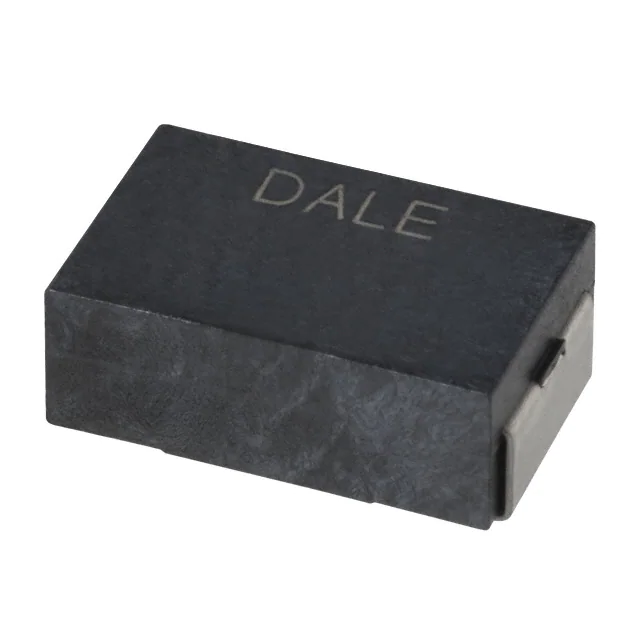

WSC452710R00JEARES 10 OHM 5% 2W 4527 |
4,169 |
|
Datasheet | WSC | 4527 J-Lead | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 2W | Wirewound | Automotive AEC-Q200 | ±20ppm/°C | -65°C ~ 275°C | AEC-Q200 | 4527 | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.177" (4.49mm) | 2 | - |
