Chassis Mount Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3020-01105-0RES CHAS MNT 50 UOHM .25% |
0 |
|
Datasheet | DMS | Rectangular Case | Bulk | Obsolete | 50 µOhms | ±0.25% | 50W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense | - | Flanges | 4.500" L x 2.500" W (114.30mm x 63.50mm) | 2.160" (54.90mm) | - | - | - | - |
|

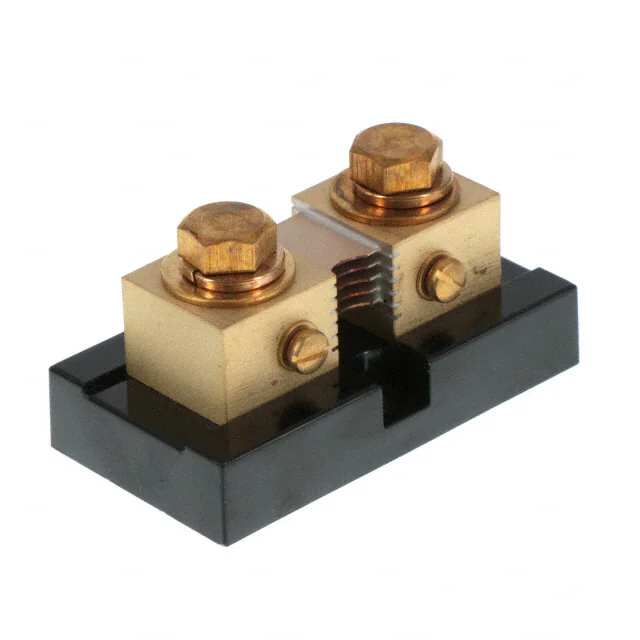

3020-01103-0RES CHAS MNT 100 UOHM .25% 25W |
0 |
|
Datasheet | DMS | Rectangular Case | Bulk | Obsolete | 100 µOhms | ±0.25% | 25W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense | - | Flanges | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 1.750" (44.45mm) | - | - | - | - |
|
|
3020-01106-0RES CHAS MNT 41.7 UOHM .25% |
0 |
|
Datasheet | DMS | Rectangular Case | Bulk | Obsolete | 41.7 µOhms | ±0.25% | 60W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense | - | Flanges | 4.500" L x 2.500" W (114.30mm x 63.50mm) | 2.160" (54.90mm) | - | - | - | - |
