Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CC45SL3DD331JYGNACAP CER 330PF 2KV SL RADIAL |
976 |
|
Datasheet | CC45 | Bulk | Active | 330 pF | ±5% | 2000V (2kV) | SL | -25°C ~ 125°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | 0.453" Dia (11.50mm) | 0.610" (15.50mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
FK16X7R1C106MR020CAP CER 10UF 16V X7R RADIAL |
973 |
|
Datasheet | FK | Bulk | Not For New Designs | 10 µF | ±20% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.098" (2.50mm) | Formed Leads - Kinked |
|

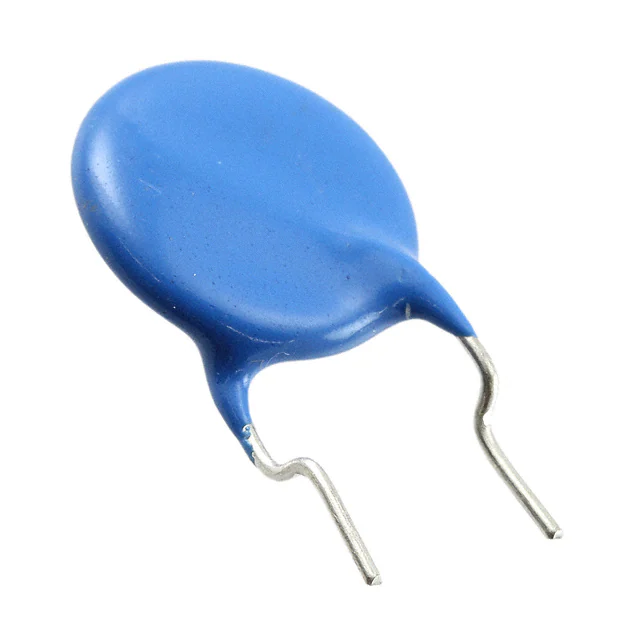

CC45SL3FD221JYNNACAP CER 220PF 3KV SL RADIAL |
942 |
|
Datasheet | CC45 | Bulk | Active | 220 pF | ±5% | 3000V (3kV) | SL | -25°C ~ 125°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | 0.472" Dia (12.00mm) | 0.630" (16.00mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
|
FK24X7S2A474KR000CAP CER 0.47UF 100V X7S RADIAL |
920 |
|
Datasheet | FK | Bulk | Not For New Designs | 0.47 µF | ±10% | 100V | X7S | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.177" L x 0.098" W (4.50mm x 2.50mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
FG24X7R1H105KRT00CAP CER 1UF 50V X7R RADIAL |
886 |
|
Datasheet | FG | Bulk | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
FG26C0G2J272JNT00CAP CER 2700PF 630V C0G RADIAL |
828 |
|
Datasheet | FG | Bulk | Active | 2700 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.236" (6.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
FK20C0G2J392JN000CAP CER 3900PF 630V C0G RADIAL |
724 |
|
Datasheet | FK | Bulk | Not For New Designs | 3900 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.276" (7.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
FK24X7S2A334KR000CAP CER 0.33UF 100V X7S RADIAL |
667 |
|
Datasheet | FK | Bulk | Not For New Designs | 0.33 µF | ±10% | 100V | X7S | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.177" L x 0.098" W (4.50mm x 2.50mm) | 0.217" (5.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
FK14X7S2A334KR020CAP CER 0.33UF 100V X7S RADIAL |
610 |
|
Datasheet | FK | Bulk | Not For New Designs | 0.33 µF | ±10% | 100V | X7S | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.177" L x 0.098" W (4.50mm x 2.50mm) | 0.217" (5.50mm) | - | 0.098" (2.50mm) | Formed Leads |
|
|
CC45SL3DD331JYNNACAP CER 330PF 2KV SL RADIAL |
570 |
|
Datasheet | CC45 | Bulk | Active | 330 pF | ±5% | 2000V (2kV) | SL | -25°C ~ 125°C | High Voltage, Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | 0.453" Dia (11.50mm) | 0.610" (15.50mm) | - | 0.295" (7.50mm) | Formed Leads - Kinked |
