Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MD011A821KABCAP CER 820PF 100V NP0 2-DIP |
0 |
|
Datasheet | DIPGuard® MD | Tube | Active | 820 pF | ±10% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|
|
MD011C122KABCAP CER 1200PF 100V X7R 2-DIP |
0 |
|
Datasheet | DIPGuard® MD | Tube | Active | 1200 pF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|
|
MD015A821KABCAP CER 820PF 50V NP0 2-DIP |
0 |
|
Datasheet | DIPGuard® MD | Tube | Active | 820 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|
|
MD015C333MABCAP CER 0.033UF 50V X7R 2-DIP |
0 |
|
Datasheet | DIPGuard® MD | Tube | Active | 0.033 µF | ±20% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.175" (4.45mm) | - | 0.325" (8.25mm) | - |
|

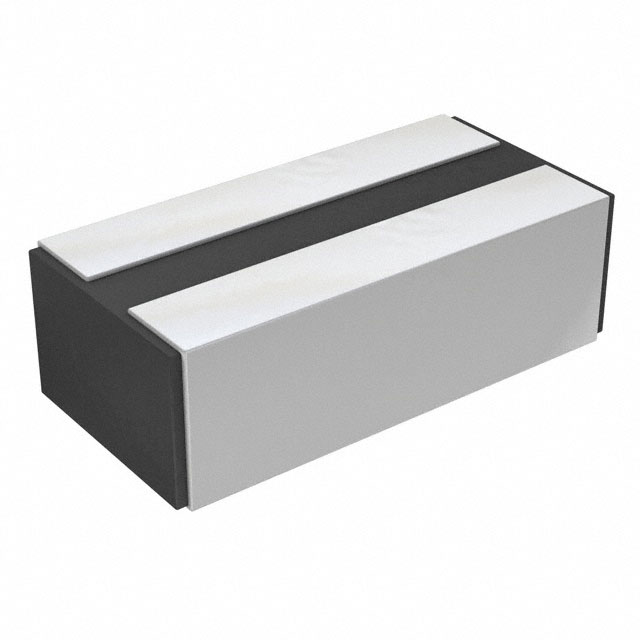

LG226D474MAT2S1CAP CER 0.47UF 6.3V X5R 0306 |
0 |
|
Datasheet | LG22 (LGA) | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 6.3V | X5R | -55°C ~ 85°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0306 (0816 Metric) | 0.030" L x 0.063" W (0.76mm x 1.60mm) | - | 0.022" (0.55mm) | - | - |
|
22257C104JAT2ACAP CER 0.1UF 500V X7R 2225 |
0 |
|
Datasheet | KGM - X7R | Tape & Reel (TR) | Active | 0.1 µF | ±5% | 500V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.087" (2.21mm) | - | - |
-2,54.jpg)
|
18255A183JAT2ACAP CER 0.018UF 50V C0G/NP0 1825 |
0 |
|
Datasheet | KGM - C0G | Tape & Reel (TR) | Active | 0.018 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.087" (2.21mm) | - | - |
|
|
22203C106KAZ4ACAP CER SMD |
0 |
|
Datasheet | FLEXITERM® | Tape & Reel (TR) | Active | 10 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | - | - | - |
|
|
1825PC474KAZ1ACAP CER SMD |
0 |
|
- |
FLEXITERM® | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.248" W (4.60mm x 6.30mm) | - | - | - | - |
|
|
1825PC474KAZ2ACAP CER SMD |
0 |
|
- |
FLEXITERM® | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.248" W (4.60mm x 6.30mm) | - | - | - | - |
