Cable Supports and Fasteners
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Type Attributes | Opening Size | Mounting Type | Material | Color | Length | Width | Height | Panel Hole Size | Material Thickness | Material Flammability Rating | Adhesive | Features | Shelf Life | Shelf Life Start | Storage/Refrigeration Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP1-3-CCBL CLAMP SERVICE POST FASTENER |
1,845 |
|
Datasheet | StructuredGround™, SP1 | Bulk | Obsolete | Clamp, Service Post | Male Stud, Single Conductor | 0.162" ~ 0.260" (4.11mm ~ 6.60mm) | Fastener | Bronze | Bronze | - | - | 1.690" (42.93mm) | 0.375" (9.52mm) | - | - | - | - | - | - | - |
|
|
SP1-4/0L-QCBL CLAMP SERVICE POST FASTENER |
2,785 |
|
Datasheet | StructuredGround™, SP1 | Bulk | Obsolete | Clamp, Service Post | Male Stud, Single Conductor | 0.410" ~ 0.528" (10.41mm ~ 13.41mm) | Fastener | Bronze | Bronze | - | - | 3.190" (81.03mm) | 0.625" (15.88mm) | - | - | - | - | - | - | - |
|
|
SP1-7-CCBL CLAMP SERVICE POST FASTENER |
3,388 |
|
Datasheet | StructuredGround™, SP1 | Bulk | Obsolete | Clamp, Service Post | Male Stud, Single Conductor | 0.128" ~ 0.164" (3.25mm ~ 4.17mm) | Fastener | Bronze | Bronze | - | - | 1.380" (35.05mm) | 0.250" (6.35mm) | - | - | - | - | - | - | - |
|
|
SP1-8-CCBL CLAMP SERVICE POST FASTENER |
3,587 |
|
Datasheet | StructuredGround™, SP1 | Bulk | Obsolete | Clamp, Service Post | Male Stud, Single Conductor | 0.081" ~ 0.146" (2.06mm ~ 3.71mm) | Fastener | Bronze | Bronze | - | - | 1.130" (28.70mm) | 0.250" (6.35mm) | - | - | - | - | - | - | - |
|
|
SP2-1/0-LCBL CLAMP SERVICE POST FASTENER |
2,770 |
|
- |
StructuredGround™, SP2 | Bulk | Obsolete | Clamp, Service Post | Male Stud, Two Conductor | 0.258" ~ 0.375" (6.55mm ~ 9.52mm) | Fastener | Bronze | Bronze | - | - | 2.440" (61.98mm) | 0.500" (12.70mm) | - | - | - | - | - | - | - |
|
|
SP2-2/0L-QCBL CLAMP SERVICE POST FASTENER |
2,088 |
|
Datasheet | StructuredGround™, SP2 | Bulk | Obsolete | Clamp, Service Post | Male Stud, Two Conductor | 0.258" ~ 0.419" (6.55mm ~ 10.64mm) | Fastener | Bronze | Bronze | - | - | 3.130" (79.50mm) | 0.500" (12.70mm) | - | - | - | - | - | - | - |
|
|
SP2-3-CCBL CLAMP SERVICE POST FASTENER |
1,133 |
|
Datasheet | StructuredGround™, SP2 | Bulk | Obsolete | Clamp, Service Post | Male Stud, Two Conductor | 0.102" ~ 0.260" (2.59mm ~ 6.60mm) | Fastener | Bronze | Bronze | - | - | 1.720" (43.69mm) | 0.375" (9.52mm) | - | - | - | - | - | - | - |
|
|
SP2-3L-CCBL CLAMP SERVICE POST FASTENER |
2,401 |
|
Datasheet | StructuredGround™, SP2 | Bulk | Obsolete | Clamp, Service Post | Male Stud, Two Conductor | 0.102" ~ 0.260" (2.59mm ~ 6.60mm) | Fastener | Bronze | Bronze | - | - | 2.220" (56.39mm) | 0.375" (9.52mm) | - | - | - | - | - | - | - |
|
|
SP2-4/0L-QCBL CLAMP SERVICE POST FASTENER |
3,604 |
|
Datasheet | StructuredGround™, SP2 | Bulk | Obsolete | Clamp, Service Post | Male Stud, Two Conductor | 0.289" ~ 0.528" (7.34mm ~ 13.41mm) | Fastener | Bronze | Bronze | - | - | 3.750" (95.25mm) | 0.625" (15.88mm) | - | - | - | - | - | - | - |
|
|
SP2-500-12CBL CLAMP SERVICE POST FASTENER |
1,820 |
|
Datasheet | StructuredGround™, SP2 | Bulk | Obsolete | Clamp, Service Post | Male Stud, Two Conductor | 0.470" ~ 0.815" (11.94mm ~ 20.70mm) | Fastener | Bronze | Bronze | - | - | 4.570" (116.08mm) | 0.750" (19.05mm) | - | - | - | - | - | - | - |
|
|
SP2-8L-CCBL CLAMP SERVICE POST FASTENER |
1,289 |
|
Datasheet | StructuredGround™, SP2 | Bulk | Obsolete | Clamp, Service Post | Male Stud, Two Conductor | 0.081" ~ 0.146" (2.06mm ~ 3.71mm) | Fastener | Bronze | Bronze | - | - | 1.750" (44.45mm) | 0.250" (6.35mm) | - | - | - | - | - | - | - |
|
SPF1-2-CCBL CLAMP SERVICE POST FASTENER |
3,985 |
|
Datasheet | StructuredGround™, SPF1 | Bulk | Obsolete | Clamp, Service Post | Female Thread, Single Conductor | 0.184" ~ 0.292" (4.67mm ~ 7.42mm) | Fastener | Bronze | Bronze | - | - | 2.010" (51.05mm) | 0.375" (9.52mm) | - | - | - | - | - | - | - |
|
SPF2-3-CCBL CLAMP SERVICE POST FASTENER |
3,058 |
|
Datasheet | StructuredGround™, SPF2 | Bulk | Obsolete | Clamp, Service Post | Female Thread, Two Conductor | 0.102" ~ 0.260" (2.59mm ~ 6.60mm) | Fastener | Bronze | Bronze | - | - | 2.010" (51.05mm) | 0.375" (9.52mm) | - | - | - | - | - | - | - |
|
SPF2-500-12CBL CLAMP SERVICE POST FASTENER |
2,338 |
|
Datasheet | StructuredGround™, SPF2 | Bulk | Obsolete | Clamp, Service Post | Female Thread, Two Conductor | 0.470" ~ 0.815" (11.94mm ~ 20.70mm) | Fastener | Bronze | Bronze | - | - | 4.060" (103.12mm) | 0.750" (19.05mm) | - | - | - | - | - | - | - |
|

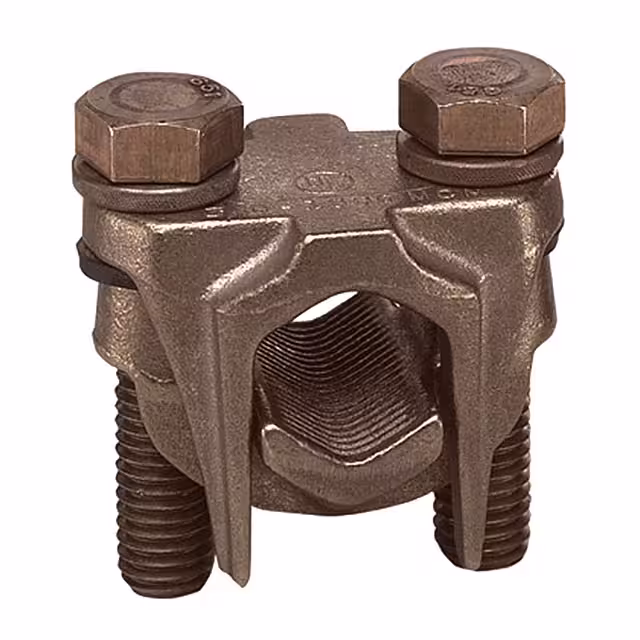

VT-6-6CBL CLAMP GROUNDING BRONZE |
1,514 |
|
Datasheet | - | Bulk | Obsolete | Clamp, Grounding | Two-Bolt | 1.250" (31.75mm) | - | Bronze | Bronze | 3.063" (77.80mm) | 2.250" (57.15mm) | 2.750" (69.85mm) | - | - | - | - | Rubber Washer, Swivel Cap | - | - | - |
|

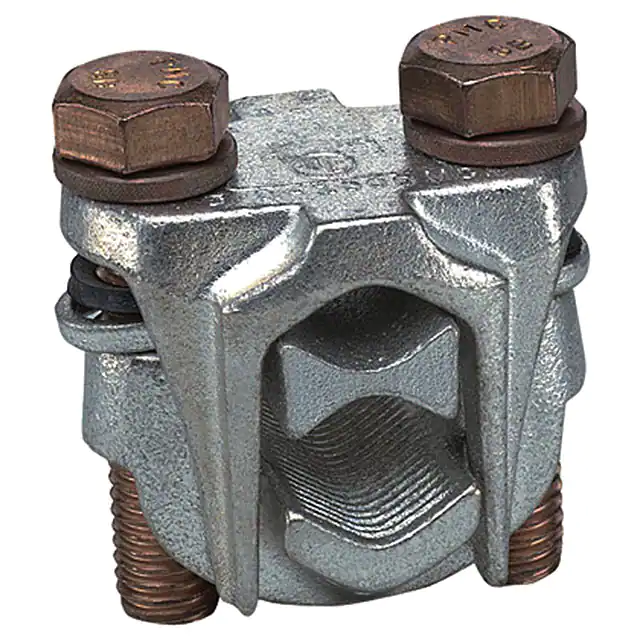

VTA-2-QCBL CLAMP GROUND BRONZE/SILVER |
3,556 |
|
Datasheet | - | Bulk | Obsolete | Clamp, Grounding | Two-Bolt | 0.594" (15.09mm) | - | Bronze, Tin Plated | Bronze, Silver | 1.844" (46.84mm) | 1.344" (34.14mm) | 1.750" (44.45mm) | - | - | - | - | Rubber Washer, Swivel Cap | - | - | - |
|
|
VTA-4-12CBL CLAMP GROUND BRONZE/SILVER |
4,239 |
|
Datasheet | - | Bulk | Obsolete | Clamp, Grounding | Two-Bolt | 0.875" (22.22mm) | - | Bronze, Tin Plated | Bronze, Silver | 2.438" (61.93mm) | 1.688" (42.88mm) | 2.250" (57.15mm) | - | - | - | - | Rubber Washer, Swivel Cap | - | - | - |
|
VWS42105-MCBL CLIP WIRE SADDLE ARROWHEAD |
1,528 |
|
Datasheet | - | Bulk | Obsolete | Clip, Wire Saddle | - | 0.420" L x 1.070" H (10.67mm x 27.18mm) | Arrowhead, Winged | Polyamide (PA66), Nylon 6/6 | Natural | 0.600" (15.24mm) | 0.310" (7.87mm) | 1.450" (36.83mm) | 0.187" ~ 0.192" (4.75mm ~ 4.88mm) | 0.090" (2.29mm) | UL94 V-2 | - | - | - | - | - |
|
|
VWS4218-MCBL CLIP WIRE SADDLE ARROWHEAD |
1,924 |
|
- |
- | Bulk | Obsolete | Clip, Wire Saddle | - | 0.420" L x 0.180" H (10.67mm x 4.57mm) | Arrowhead, Winged | Polyamide (PA66), Nylon 6/6 | Natural | 0.600" (15.24mm) | 0.100" (2.54mm) | 0.580" (14.73mm) | 0.187" ~ 0.192" (4.75mm ~ 4.88mm) | - | UL94 V-2 | - | - | - | - | - |
|
|
VWS4274-MCBL CLIP WIRE SADDLE ARROWHEAD |
4,035 |
|
- |
- | Bulk | Obsolete | Clip, Wire Saddle | - | 0.420" L x 0.740" H (10.67mm x 18.80mm) | Arrowhead, Winged | Polyamide (PA66), Nylon 6/6 | Natural | 0.600" (15.24mm) | 0.230" (5.84mm) | 1.140" (28.96mm) | 0.187" ~ 0.192" (4.75mm ~ 4.88mm) | 0.090" (2.29mm) | UL94 V-2 | - | - | - | - | - |
