Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1300980174CABLE GRIP 19.05-22.23MM 1 1/4" |
1,058 |
|
Datasheet | Cable Grip | 0.750" (19.05mm) | 0.875" (22.23mm) | 1 1/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
A1183.32CABLE GLAND 17-25.5MM M32 BRASS |
3,966 |
|
Datasheet | Cable Gland, Long Entry | 0.669" (17.00mm) | 1.004" (25.50mm) | M32x1.5 | 0.512" (13.00mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | Contact Spring, O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -60°C ~ 100°C | |
|
19620005080CABLE GLAND 6.5-9.5MM M20 |
4,341 |
|
Datasheet | Cable Gland | 0.256" (6.50mm) | 0.374" (9.50mm) | M20 | - | - | - | - | - | - | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|
21530.6CABLE GLAND 7.87-10.92MM PG16 |
3,699 |
|
Datasheet | Cable Gland | 0.310" (7.87mm) | 0.430" (10.92mm) | PG16 | 0.430" (10.92mm) | - | 0.890" (22.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
19620005092CABLE GLAND 9-13MM M25 |
2,317 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | M25 | - | - | - | - | - | - | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|

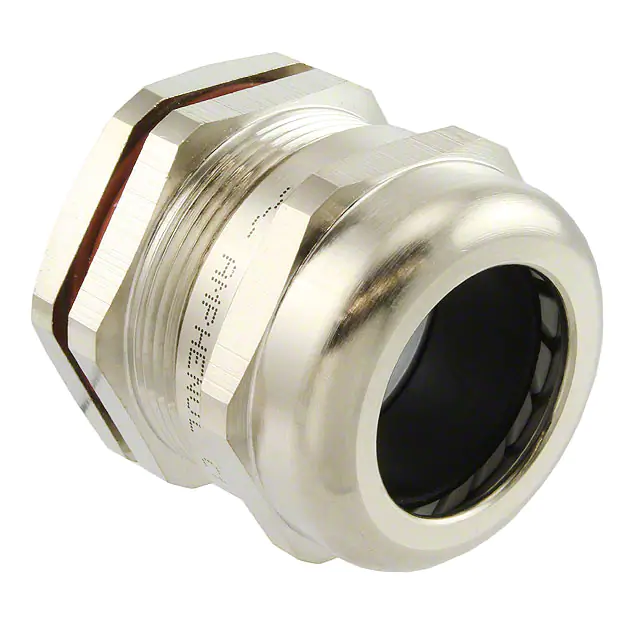

AIO-CSJM36CABLE GLAND 18.01-25MM M36 BRASS |
3,064 |
|
Datasheet | Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | M36x2 | 0.394" (10.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
19620005081CABLE GLAND 4-6.5MM M20 |
4,847 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.256" (6.50mm) | M20 | - | - | - | - | - | - | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|
09000005094CABLE GLND 14-18.01MM PG29 METAL |
3,006 |
|
Datasheet | Cable Gland | 0.551" (14.00mm) | 0.709" (18.01mm) | PG29 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|
09000005091CABLE GLAND 9-13MM PG21 METAL |
3,399 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | PG21 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|
S2236CABLE GLAND 17-26MM PG36 |
1,231 |
|
Datasheet | Cable Gland | 0.669" (17.00mm) | 1.024" (26.00mm) | PG36 | 0.512" (13.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
|
S2142CABLE GLAND 35-38MM PG42 |
4,629 |
|
Datasheet | Cable Gland | 1.378" (35.00mm) | 1.496" (38.00mm) | PG42 | 0.512" (13.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
2584120000CABLE GLAND M63 POLYAMIDE |
1,488 |
|
Datasheet | Cable Gland - Splittable Body | - | - | M63 | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon, Glass Filled | Seal | Black | IP66 - Dust Tight, Water Resistant | -40°C ~ 120°C | |
|
MC3CG-S4CABLE GRIP 17-19.5MM ZINC |
4,195 |
|
Datasheet | Cable Grip | 0.669" (17.00mm) | 0.768" (19.50mm) | - | 0.492" (12.50mm) | - | - | Zinc, Nickel Plated | EMI Shielding Ring, Gasket, Nut, Seal | Gray | IP67 - Dust Tight, Waterproof | -20°C ~ 130°C | |
|
53112036CABLE GLND 6-13MM 3/4" NPT BRASS |
2,056 |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.512" (13.00mm) | 3/4" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C | |
|
09000005095CABLE GLAND 17-21MM PG29 METAL |
2,955 |
|
Datasheet | Cable Gland | 0.669" (17.00mm) | 0.827" (21.00mm) | PG29 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|
96575.6/15CABLE FEEDTHROUGH 25.91-32MM M40 |
1,803 |
|
Datasheet | Cable Feedthrough | 1.020" (25.91mm) | 1.260" (32.00mm) | M40x1.5 | - | - | 1.570" (39.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
50.663 M1CABLE GLAND 38-48MM M63 BRASS |
1,111 |
|
Datasheet | Cable Gland | 1.496" (38.00mm) | 1.890" (48.00mm) | M63x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.625 ESCABLE GLAND 11-16MM M25 S STEEL |
3,455 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.630" (16.00mm) | M25x1.5 | 0.276" (7.00mm) | - | - | Stainless Steel | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
09000005096CABLE GLAND 20-25MM PG29 METAL |
3,339 |
|
Datasheet | Cable Gland | 0.787" (20.00mm) | 0.984" (25.00mm) | PG29 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|
1300970262CABLE GRP 13.21-18.54MM 3/4" NPT |
1,154 |
|
Datasheet | Cable Grip | 0.520" (13.21mm) | 0.730" (18.54mm) | 3/4" NPT | 0.670" (17.02mm) | - | - | Aluminum | Locknut, Strain Relief | Silver | - | - |
