Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
98121.1CABLE GLAND 3.05-7.11MM M12 |
179 |
|
Datasheet | Cable Gland | 0.120" (3.05mm) | 0.280" (7.11mm) | M12x1.5 | 0.350" (8.89mm) | - | 0.470" (11.9mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | - | |
|
98103.2CABLE GLAND 4.5-10MM M16 |
147 |
|
Datasheet | Cable Gland | 0.177" (4.50mm) | 0.394" (10.00mm) | M16x1.5 | 0.350" (8.89mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof | - | |
|
98420.6CABLE FEEDTHR 5-7MM PG7 BRASS |
428 |
|
Datasheet | Cable Feedthrough | 0.197" (5.00mm) | 0.276" (7.00mm) | PG7 | 0.200" (5.08mm) | - | 0.490" (12.4mm) | Brass, Nickel Plated | - | Silver | IP54 - Dust Protected, Water Resistant | - | |
|

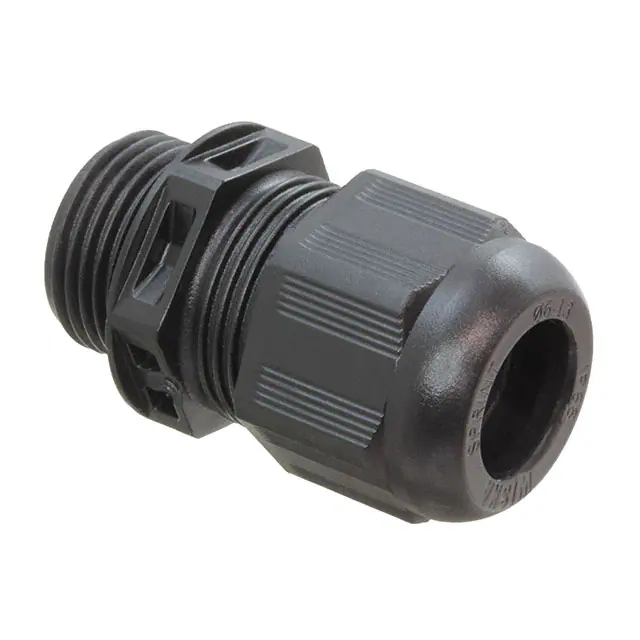

98125.1CABLE GLAND 6-13MM M20 POLYAMIDE |
159 |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.390" (9.91mm) | - | 0.790" (20.1mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | - | |
|
98324.6CABLE GLND 6-13MM 1/2" NPT BRASS |
107 |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.512" (13.00mm) | 1/2" NPT | 0.630" (16.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | - | |
|
98203.2CABLE GLAND 4-8MM PG9 POLYAMIDE |
1,446 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.350" (8.89mm) | - | 0.600" (15.2mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof | - | |
|
|
98223.1CABLE GLAND 4-8MM PG9 POLYAMIDE |
2,954 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.350" (8.89mm) | - | 0.600" (15.2mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | - | |
|
98123.1CABLE GLAND 4.5-10MM M16 |
2,696 |
|
Datasheet | Cable Gland | 0.177" (4.50mm) | 0.394" (10.00mm) | M16x1.5 | 0.350" (8.89mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | - | |
|

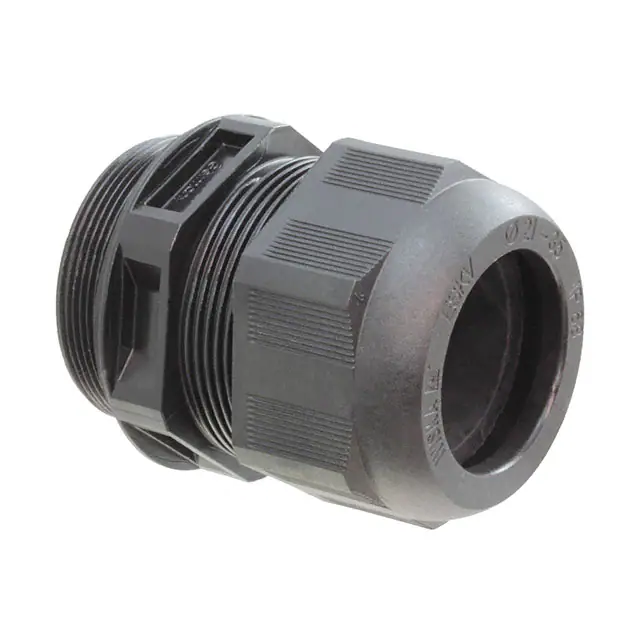

98133.1CABLE GLAND 21-35MM M50 POLYAMID |
4,129 |
|
Datasheet | Cable Gland | 0.827" (21.00mm) | 1.378" (35.00mm) | M50x1.5 | 0.550" (13.97mm) | - | 1.969" (50.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | - | |
|
|
26503.6CABLE GLAND 7.11-11.94MM M25 |
4,727 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.470" (11.94mm) | M25x1.5 | 0.280" (7.11mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | - |
