Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12051909CABLE GLAND 6-8MM PG9 POLYAMIDE |
3,430 |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.315" (8.00mm) | PG9 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP65 - Dust Tight, Water Resistant | -20°C ~ 100°C | |
|
12052309CABLE GLAND 14-18.01MM PG21 |
4,813 |
|
Datasheet | Cable Gland | 0.551" (14.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP65 - Dust Tight, Water Resistant | -20°C ~ 100°C | |
|
12152400CABLE GLAND 14-18.01MM M25 |
1,860 |
|
Datasheet | Cable Gland | 0.551" (14.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP65 - Dust Tight, Water Resistant | -20°C ~ 100°C | |
|

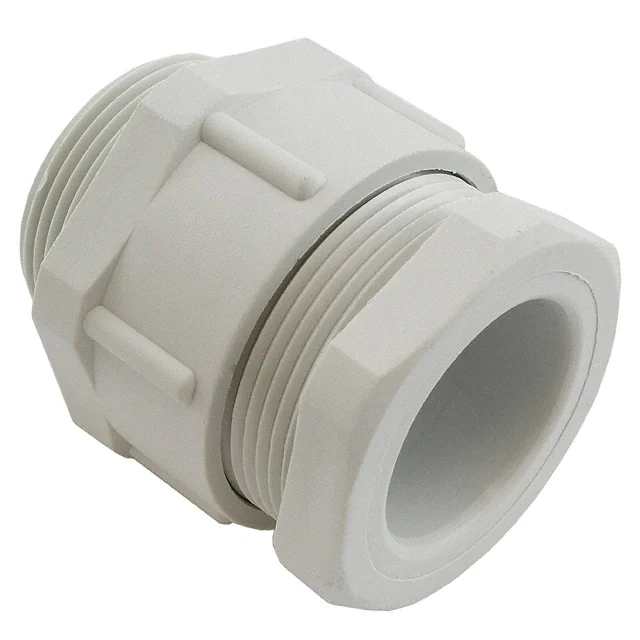

12152500CABLE GLAND 18.01-24MM M32 |
3,673 |
|
Datasheet | Cable Gland | 0.709" (18.01mm) | 0.945" (24.00mm) | M32x1.5 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP65 - Dust Tight, Water Resistant | -30°C ~ 100°C | |
|
12002200CABLE GLAND 5-10MM M16 POLYAMIDE |
3,430 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|

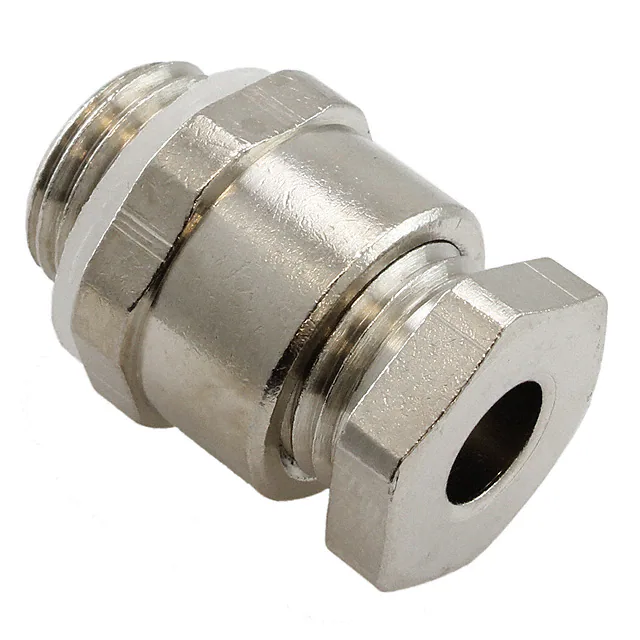

13050100CABLE GLAND 4-6MM PG7 BRASS |
3,231 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.236" (6.00mm) | PG7 | - | - | - | Brass | - | Silver | IP65 - Dust Tight, Water Resistant | -20°C ~ 100°C | |
|
10000700CABLE GLAND 18.01-25MM PG29 |
4,970 |
|
Datasheet | Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | PG29 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
12002500CABLE GLAND 15-21MM M32 POLYAMID |
1,844 |
|
Datasheet | Cable Gland | 0.591" (15.00mm) | 0.827" (21.00mm) | M32x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
12152000CABLE GLAND 6-8MM M16 POLYAMIDE |
1,807 |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.315" (8.00mm) | M16x1.5 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP65 - Dust Tight, Water Resistant | -20°C ~ 100°C | |
|
12052009CABLE GLAND 8-10MM PG11 POLYAMID |
4,945 |
|
Datasheet | Cable Gland | 0.315" (8.00mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP65 - Dust Tight, Water Resistant | -30°C ~ 100°C |
