Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

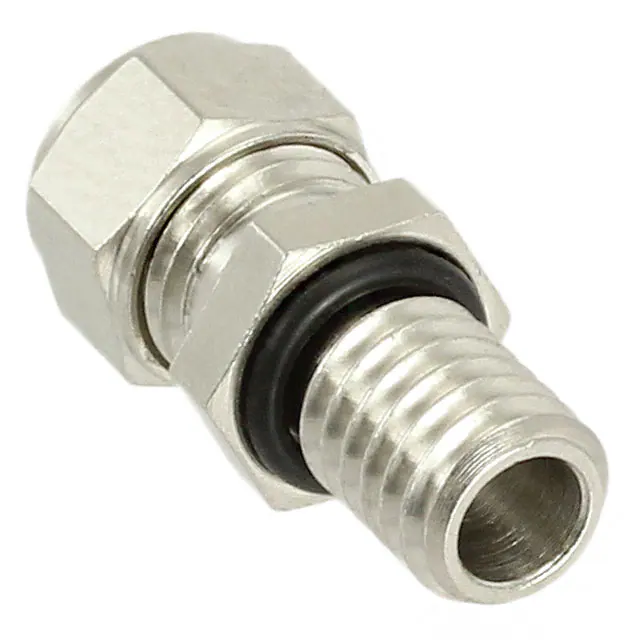

A1100.06.035CABLE GLAND 3-3.5MM M6 BRASS |
300 |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.138" (3.50mm) | M06x1 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

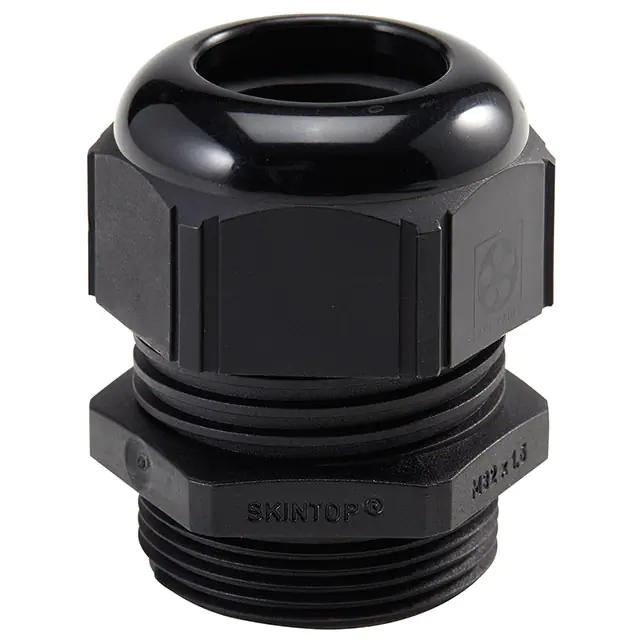

S2221CABLE GLAND 9-16MM PG21 POLYAMID |
970 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.630" (16.00mm) | PG21 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|

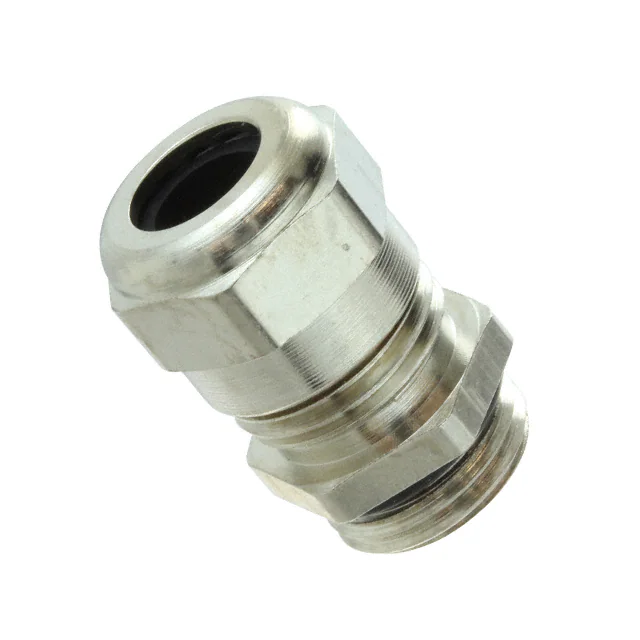

4220309CABLE GLAND 4-9.5MM PG9 BRASS |
605 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.374" (9.50mm) | PG9 | 0.236" (6.00mm) | - | 0.598" (15.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
53112000CABLE GLAND 3.5-7MM M12 BRASS |
5,230 |
|
Datasheet | Cable Gland | 0.138" (3.50mm) | 0.276" (7.00mm) | M12x1.5 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C | |
|
50.112/EMV/RCABLE GLND 5-13MM 1/2" NPT BRASS |
358 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.512" (13.00mm) | 1/2" NPT | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.620M/EMV/LCABLE GLAND 9-13MM M20 BRASS |
293 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

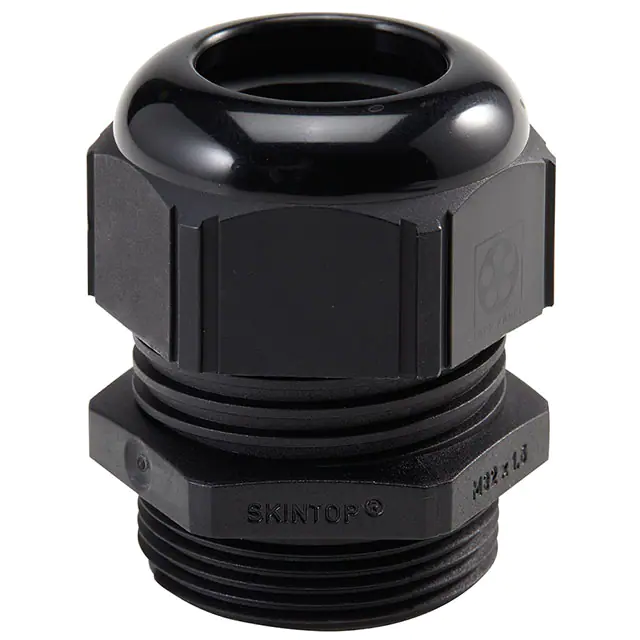

S2521CABLE GLAND 9-21MM M32 POLYAMIDE |
557 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.827" (21.00mm) | M32x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Locknut, O-Ring | Black | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
53112924CABLE GLAND 11-20MM M32 POLYAMID |
1,506 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.787" (20.00mm) | M32 | 0.315" (8.00mm) | - | 1.272" (32.3mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
S2101CABLE GLAND 19-25.4MM 1" NPT |
700 |
|
Datasheet | Cable Gland | 0.748" (19.00mm) | 1.000" (25.40mm) | 1" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
M3204CABLE GRIP 22.23-32MM PG36 |
517 |
|
Datasheet | Cable Grip | 0.875" (22.23mm) | 1.260" (32.00mm) | PG36 | 0.470" (11.94mm) | - | 1.880" (47.8mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
53112020CABLE GLAND 7-13MM M20 BRASS |
436 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C | |
|

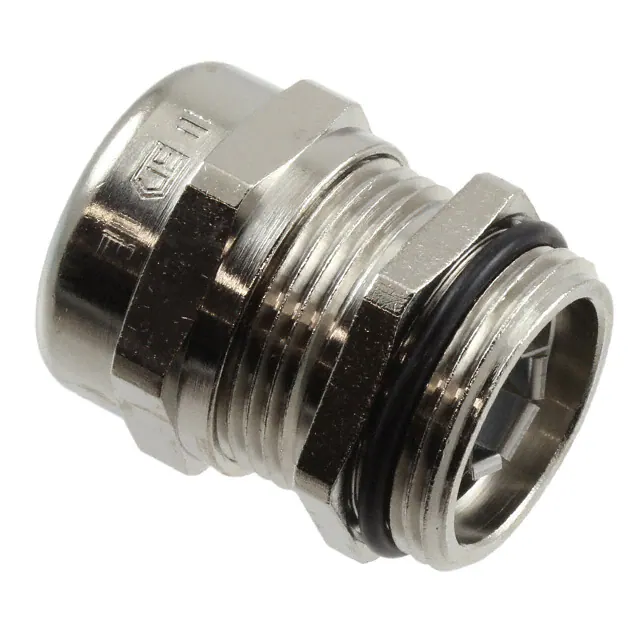

1411190CABLE GLAND 11-16MM M25 BRASS |
388 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.630" (16.00mm) | M25 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
53112030CABLE GLAND 9-16.99MM M25 BRASS |
387 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.669" (16.99mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C | |
|
18555.6CABLE GLAND 7.11-10.92MM M16 |
251 |
|
Datasheet | Cable Gland | 0.280" (7.11mm) | 0.430" (10.92mm) | M16x1.5 | 0.240" (6.10mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
1411167CABLE GLAND 19-28MM M40 BRASS |
282 |
|
Datasheet | Cable Gland | 0.748" (19.00mm) | 1.102" (28.00mm) | M40 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|

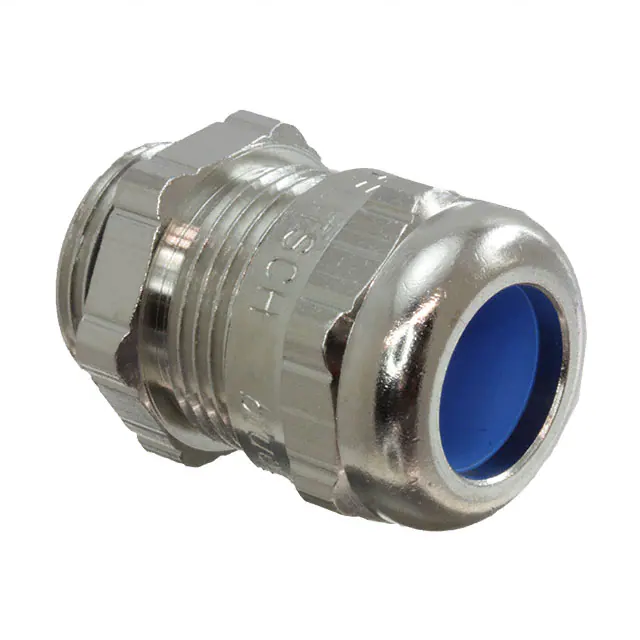

96190.6CABLE GLAND 8.89-13.97MM M20 |
211 |
|
Datasheet | Cable Gland | 0.350" (8.89mm) | 0.550" (13.97mm) | M20x1.5 | 0.260" (6.60mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
19000005090CABLE GLAND 9-16MM M25 BRASS |
109 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.630" (16.00mm) | M25 | - | - | - | Brass | Clamping Ring | - | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
96191.6CABLE GLAND 16-20.07MM M25 BRASS |
390 |
|
Datasheet | Cable Gland | 0.630" (16.00mm) | 0.790" (20.07mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

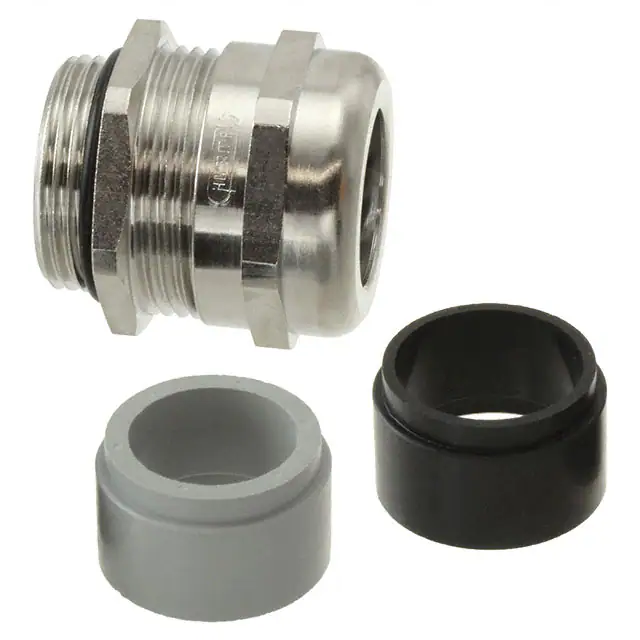

19000005091CABLE GLAND 9-18.01MM M25 BRASS |
131 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.709" (18.01mm) | M25 | - | - | - | Brass | Clamping Ring | - | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
1411201CABLE GLND 18.01-25MM PG29 BRASS |
124 |
|
Datasheet | Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | PG29 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
